Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09A90-01-1-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Таблицы данных |
09 | Bulk | Active | 4 | Continuous | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 90° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 24.38mm |
|
|
09A30-02-2-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Таблицы данных |
09 | Bulk | Active | 3 | Fixed | 2 | 2 | DP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|
|
42A36-03-1-05NSWITCH ROTARY 5POS 1A 115V |
0 |
|
Таблицы данных |
42 | Bulk | Active | 5 | Fixed | 3 | 1 | SP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
71CF302107N-1107NSWITCH ROTARY 7POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 7 | Fixed | 2, 1 | 1 | SP7T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 41.48mm |
|
|
093122-1-04NSWITCH ROTARY 4POS 250MA 115V |
0 |
|
Таблицы данных |
09 | Bulk | Active | 4 | Fixed | 2 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.19mm |
|
|
44HS30-01-3-03SSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 1 | 3 | 3P3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
71CF362110SF-1110SFSWITCH ROTARY 10POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 10 | Fixed | 2, 1 | 1 | SP10T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | - | 41.48mm |
|
|
50KSPT45-01-1-06NSWITCH ROTARY 12POS 250MA 115V |
0 |
|
Таблицы данных |
71 | Bulk | Active | 12 | Fixed | 2, 1 | 1 | SP12T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Concentric (3.17mm Dia, 6.35mm Dia) | 9.53mm | 30° | Silver Alloy | - | Panel Mount, Through Hole, Right Angle | PC Pin | Process Sealed, Shaft and Panel Sealed | 41.48mm |
|
|
19001-11ULSWITCH ROTARY 11POS 15A 120V |
0 |
|
Таблицы данных |
19 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
|
|
19101-11ULSWITCH ROTARY 11POS 15A 120V |
0 |
|
Таблицы данных |
19 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
|
42M36-02-1-03SSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 3 | Fixed | 2 | 1 | SP3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|

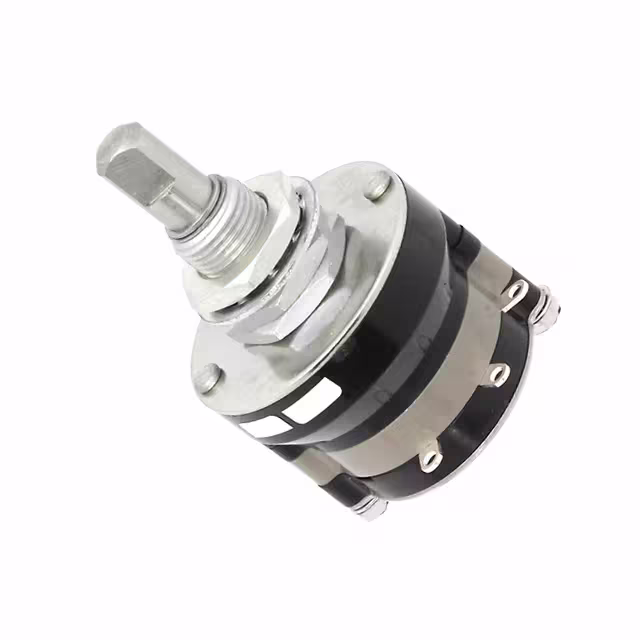

44M45-01-1-05NSWITCH ROTARY 5POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44S90-01-2-02NSWITCH ROTARY 2POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 5A (AC), 2A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 90° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44US90-01-2-02NSWITCH ROTARY 2POS 1A 125V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | 90° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44M60-01-1-05NSWITCH ROTARY 5POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
|
44M30-02-1-06NSWITCH ROTARY 6POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
44M30-02-1-06SSWITCH ROTARY 6POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
|
42HS36-01-1-04NSWITCH ROTARY 4POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
44MS30-01-1-11NSWITCH ROTARY 11POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
|
D4C0305NSWITCH ROTARY 2-5POS 500MA 115V |
0 |
|
Таблицы данных |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 3 | 3P5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.76mm |
