Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16NP222MAB15POT 2.2K OHM 1W CERMET LINEAR |
664 |
|
Таблицы данных |
P16 | Bulk | Active | 2.2k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP104MAB15POT 100K OHM 1W CERMET LINEAR |
297 |
|
Таблицы данных |
P16 | Bulk | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

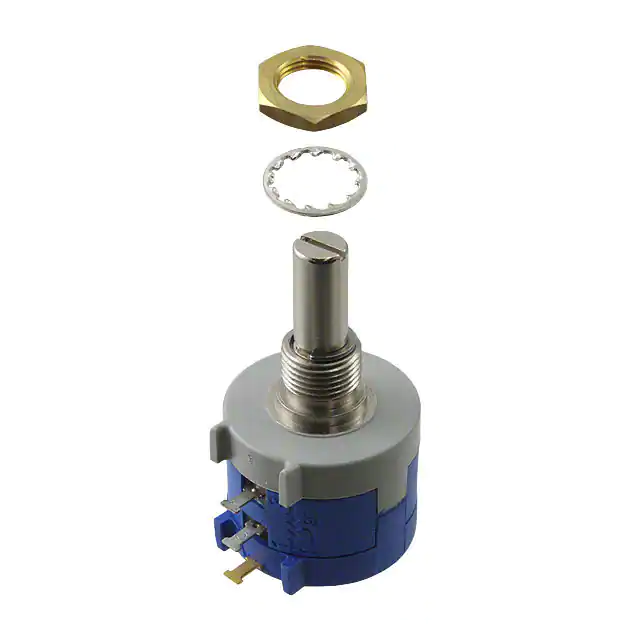

3590S-6-103LPOT 10K OHM 2W WIREWOUND LINEAR |
121 |
|
Таблицы данных |
3590 | Bulk | Active | 10k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | M9 x 0.375 | Panel Mount |
|
RV4LAYSA501APOT 500 OHM 2W CARBON LINEAR |
198 |
|
Таблицы данных |
RV4 | Bulk | Active | 500 | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
6639S-301-103POT 10K OHM 1W PLASTIC LINEAR |
126 |
|
Таблицы данных |
6639 | Bulk | Active | 10k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
RV6LAYSA253APOT 25K OHM 1/2W CARBON LINEAR |
210 |
|
Таблицы данных |
RV6 | Bulk | Active | 25k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
RV4NAYSJ104APOT 100K OHM 2W CARBON LINEAR |
137 |
|
Таблицы данных |
RV4 | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 2.000" (50.80mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
RV4NAYSJ253APOT 25K OHM 2W CARBON LINEAR |
130 |
|
Таблицы данных |
RV4 | Bulk | Active | 25k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 2.000" (50.80mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
SPRU1021S28POT 1K OHM 1/2W CARBON LINEAR |
174 |
|
Таблицы данных |
SPR | Bulk | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
6639S-1-502POT 5K OHM 1W PLASTIC LINEAR |
109 |
|
Таблицы данных |
6639 | Bulk | Active | 5k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3547S-1AA-502APOT 5K OHM 1W WIREWOUND LINEAR |
301 |
|
Таблицы данных |
3547 | Tray | Active | 5k | ±3% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
56AAD-C28-B15/R81LPOT 10K OHM 1/2W PLASTIC LINEAR |
422 |
|
Таблицы данных |
56 | Tray | Active | 10k | ±20% | 0.5W, 1/2W | Rotary, SPDT | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3862C-162-103ALPOT 10K OHM 1W CERMET LINEAR |
192 |
|
Таблицы данных |
3862 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|

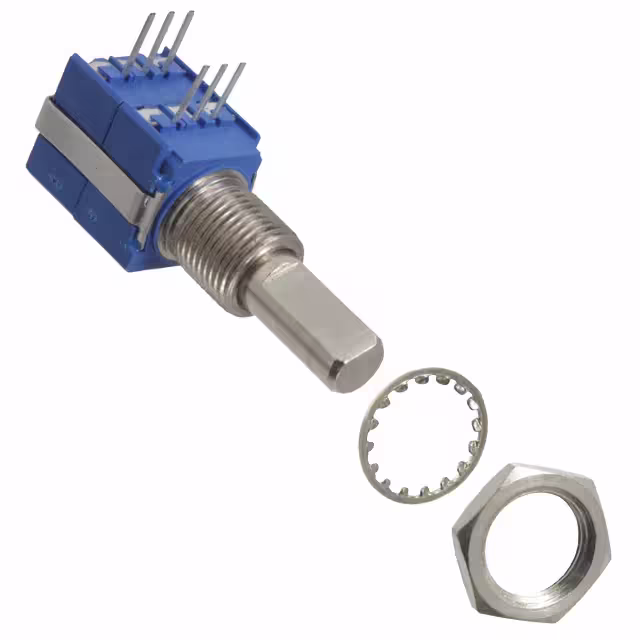

56AAD-C28-B15/R80LPOT 10K OHM 1/2W PLASTIC LINEAR |
143 |
|
Таблицы данных |
56 | Tray | Active | 10k | ±20% | 0.5W, 1/2W | Rotary, SPDT | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Flatted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

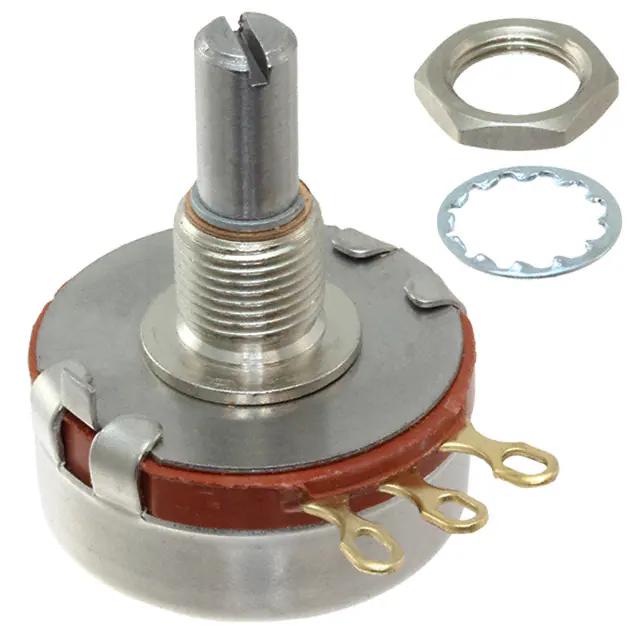

CMU5021EPOT 5K OHM 2W CARBON LINEAR |
122 |
|
Таблицы данных |
CMU | Bulk | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Round | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
M-22S10 2KPOT 2K OHM 2W WIREWOUND LINEAR |
214 |
|
Таблицы данных |
M-22 | Bulk | Active | 2k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
3-1625931-8POT 47 OHM 2W CERMET LINEAR |
272 |
|
Таблицы данных |
M, Citec | Bulk | Active | 47 | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
3-1625931-1POT 10K OHM 2W CERMET LINEAR |
237 |
|
Таблицы данных |
M, Citec | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
2-1625931-5POT 100K OHM 2W CERMET LINEAR |
109 |
|
Таблицы данных |
M, Citec | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
M-22S10 1KPOT 1K OHM 2W WIREWOUND LINEAR |
206 |
|
Таблицы данных |
M-22 | Bulk | Active | 1k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
