Поворотные потенциометры, реостаты
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Сопротивление (Ом) | Допуск | Мощность (Вт) | Встроенный переключатель | Количество оборотов | Особенности | Конусность | Количество групп | Тип регулировки | Температурный коэффициент | Вращение | Резистивный материал | Тип вывода | Тип привода | Длина привода | Диаметр привода | Резьба втулки | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PDB182-K415K-102BPOT 1K OHM 1/8W CARBON LINEAR |
22 |
|
Таблицы данных |
Pro Audio PDB18 | Tray | Active | 1k | ±20% | 0.125W, 1/8W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|

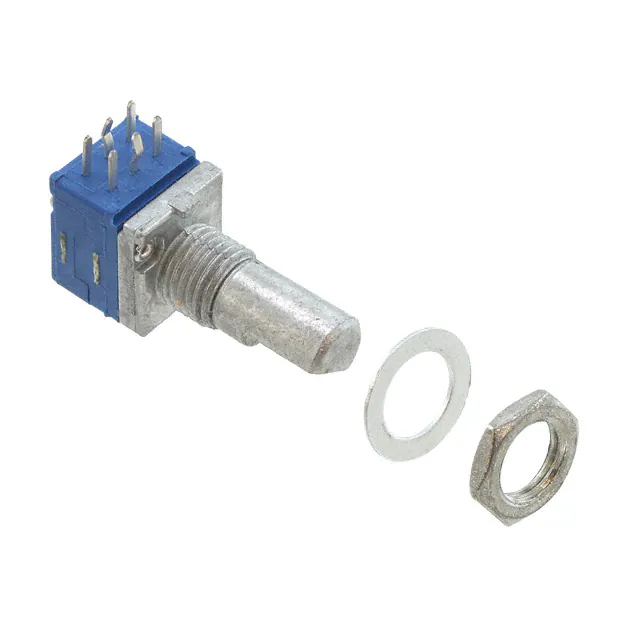

PTD902-2015F-A103POT 10K OHM 1/40W CARBON LOG |
0 |
|
Таблицы данных |
Pro Audio PTD90 | Tray | Active | 10k | ±20% | 0.025W, 1/40W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
PTD902-2015K-A103POT 10K OHM 1/40W CARBON LOG |
0 |
|
Таблицы данных |
Pro Audio PTD90 | Tray | Active | 10k | ±20% | 0.025W, 1/40W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
PDB182-GTR01-254A2POT 250K OHM 0.06W CARBON LOG |
2 |
|
Таблицы данных |
Pro Audio PDB181-GTR | Tray | Active | 250k | ±20% | 0.06W | None | 1.0 | - | Logarithmic | 2 | User Defined | - | 300° | Carbon | Solder Lug | Knurled and Slotted | 0.748" (19.00mm) | 0.236" (6.00mm) | 3/8-32 | Panel Mount |
|
RK09L112003SPOT 10K OHM 1/20W LINEAR |
0 |
|
Таблицы данных |
RK09L | Tray | Active | 10k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | - | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
3310C-001-104LPOT 100K OHM 1/4W PLASTIC LINEAR |
0 |
|
Таблицы данных |
Pro Audio 3310 | Bulk | Active | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3310Y-001-104LPOT 100K OHM 1/4W PLASTIC LINEAR |
0 |
|
Таблицы данных |
Pro Audio 3310 | Bulk | Active | 100k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
PRS11R-415F-N103B1POT 10K OHM 1/20W LINEAR |
0 |
|
Таблицы данных |
PRS11R | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 300° | - | PC Pins | Flatted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Through Hole |
|
3104603999POT 4W WIREWOUND LINEAR |
6 |
|
Таблицы данных |
AW | Bulk | Active | 100 | ±10% | 4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

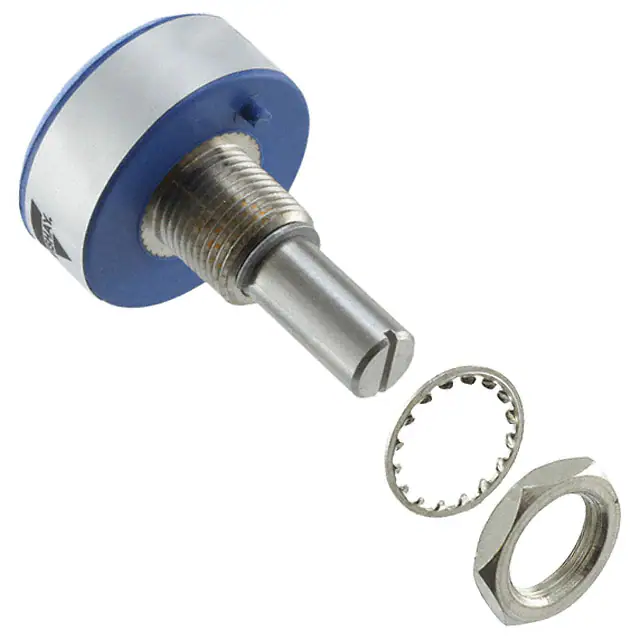

357B2502MAB251S22POT 5K OHM 1W PLASTIC LINEAR |
0 |
|
Таблицы данных |
357 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
534B1101JCPOT 100 OHM 2W WIREWOUND LINEAR |
2 |
|
Таблицы данных |
534 | Bulk | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

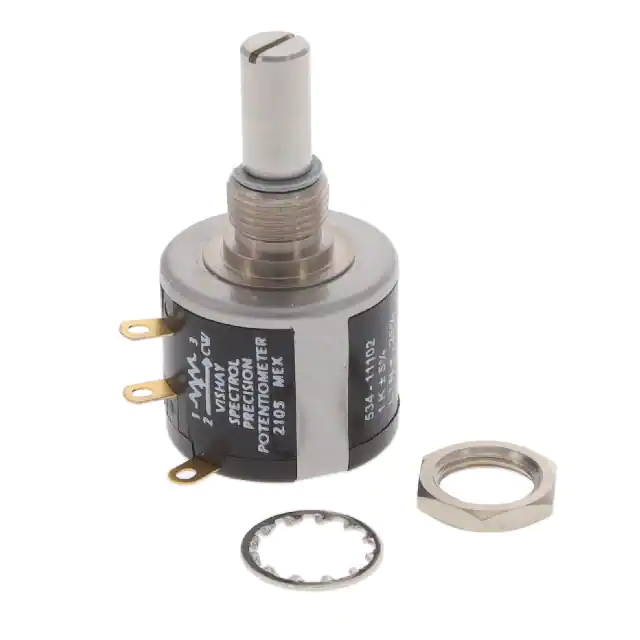

534B1102JCPOT 1K OHM 2W WIREWOUND LINEAR |
3 |
|
Таблицы данных |
534 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
6639S-1-102POT 1K OHM 1W PLASTIC LINEAR |
0 |
|
Таблицы данных |
6639 | Bulk | Active | 1k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

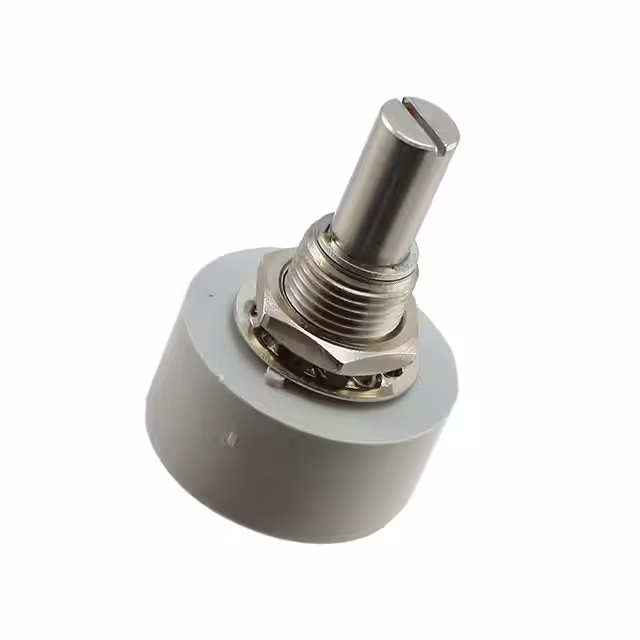

6187R10KL1.0LFPOT 10K OHM 1W PLASTIC LINEAR |
0 |
|
Таблицы данных |
6180 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | -400ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

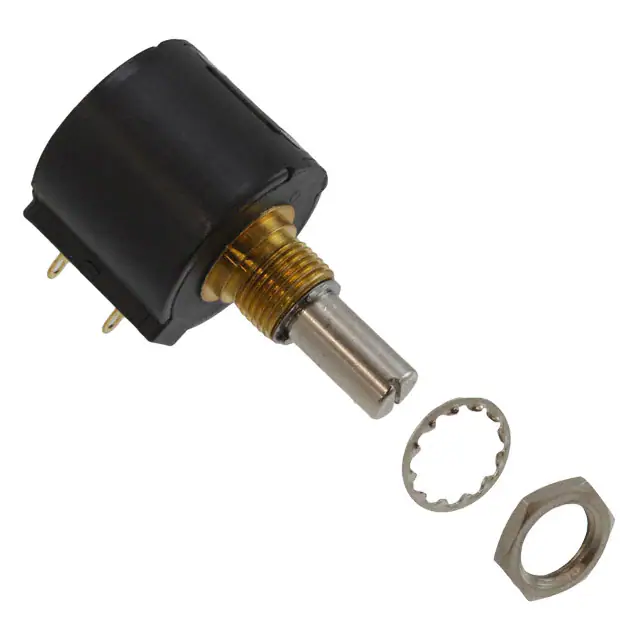

3549S-1AA-502APOT 5K OHM 2W WIREWOUND LINEAR |
0 |
|
Таблицы данных |
3549 | Tray | Active | 5k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

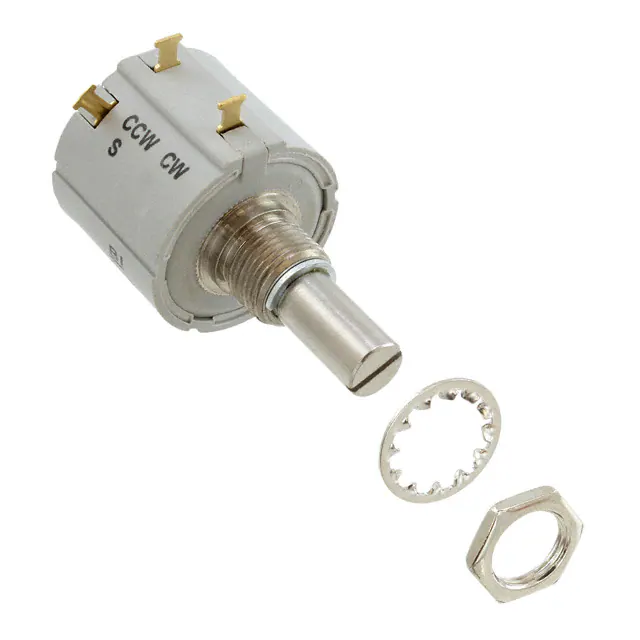

8146R5KL.25POT 5K OHM 2W HYBRID LINEAR |
0 |
|
Таблицы данных |
8140 | Bulk | Active | 5k | ±10% | 2W | None | 10.0 | High Torque | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Hybrid | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

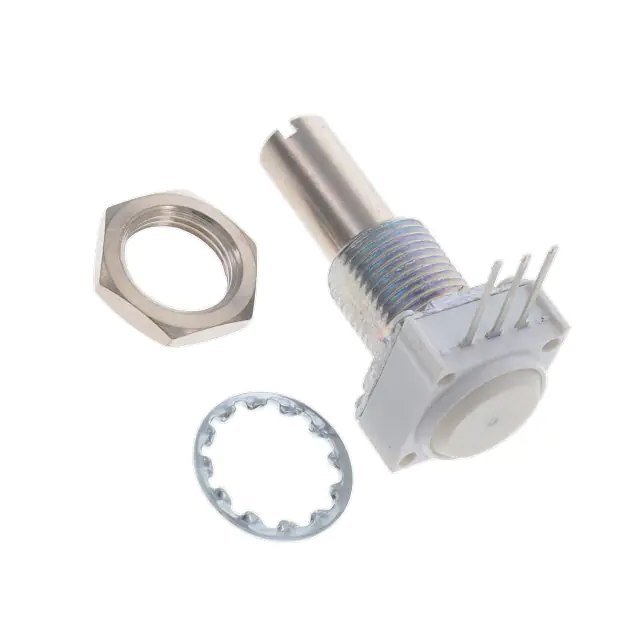

249FGJS0XB25102KAPOT 1K OHM 1W CERMET LINEAR |
0 |
|
Таблицы данных |
249 | Box | Active | 1k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

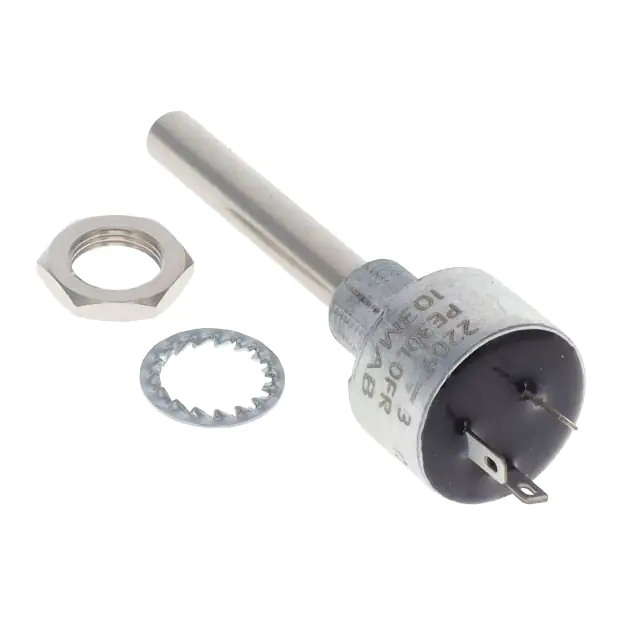

PE30L0FR103MABPOT 10K OHM 3W CERMET LINEAR |
0 |
|
Таблицы данных |
PE30 | Box | Active | 10k | ±20% | 3W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Round | 1.969" (50.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

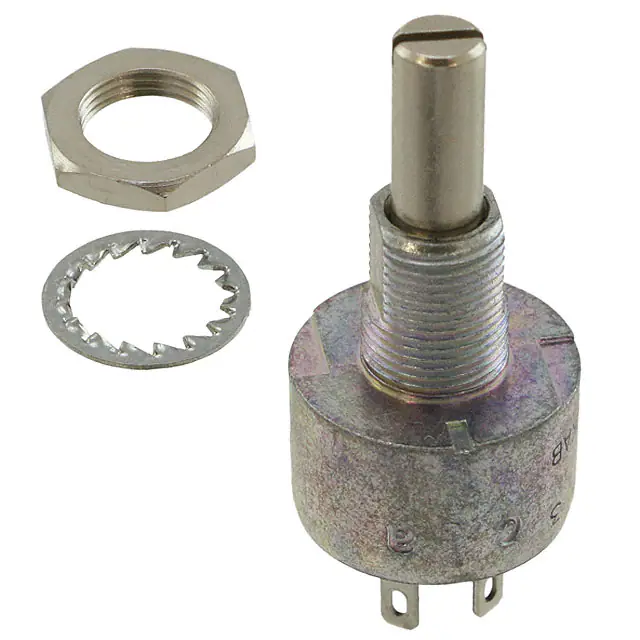

PE30L0FL472KABPOT 4.7K OHM 3W CERMET LINEAR |
0 |
|
Таблицы данных |
PE30 | Bulk | Active | 4.7k | ±10% | 3W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
7386R10KL.25POT 10K OHM 1.5W WIREWOUND LIN |
0 |
|
Таблицы данных |
7380 | Bulk | Active | 10k | ±5% | 1.5W | None | 3.0 | High Torque | Linear | 1 | User Defined | ±20ppm/°C | 1080° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
