РЧ-антенны
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Семейство RF/Стандарт | Группа частот | Частота (центр/полоса) | Диапазон частот | Тип антенны | Количество полос | КСВН | Обратные потери | Усиление | Мощность - макс. | Особенности | Оконечная нагрузка | Защита от проникновения | Марка | Квалификация | Тип крепления | Высота (макс.) | Применение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PEWAN137-15SFWR137 GAIN HRN 5.85-8.2GHZ 15DBI Pasternack |
4 |
|
Таблицы данных |
- | Case | Active | WiFi | Wide Band | 7.025GHz | 5.85GHz ~ 8.2GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | SMA Female | - | - | - | Waveguide Mount | 2.669" (67.80mm) | General Purpose |
|
|
PEWAN075-15ELNFWR75 GAIN HRN 10-15GHZ 15DBI Pasternack |
2 |
|
Таблицы данных |
- | Tape & Box (TB) | Active | - | Wide Band | 12.5GHz | 10GHz ~ 15GHz | Horn | 1 | 1.4 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | N Type Female | - | - | - | Waveguide Mount | 1.122" (28.50mm) | General Purpose |
|

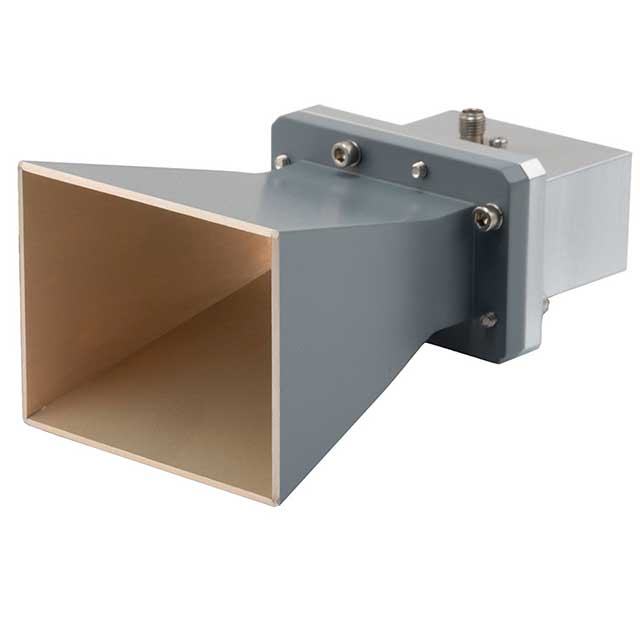

PEWAN187-10SFWR187 GAIN HORN 3.95-5.85GHZ 10D Pasternack |
8 |
|
Таблицы данных |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 10dBi | - | - | SMA Female | - | - | - | Waveguide Flange Mount | 5.206" (132.23mm) | - |
|
|
PEWAN159-15SFWR159 GAIN HRN 4.9-7.05GHZ 15DBI Pasternack |
3 |
|
Таблицы данных |
- | Tape & Box (TB) | Active | - | Wide Band | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 3.101" (78.77mm) | General Purpose |
|
|
PE9860B-10WR-159 Waveguide Standard Gain H Pasternack |
12 |
|
Таблицы данных |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 5.975GHz | 4.9GHz ~ 7.05GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 4.990" (126.75mm) | General Purpose |
|

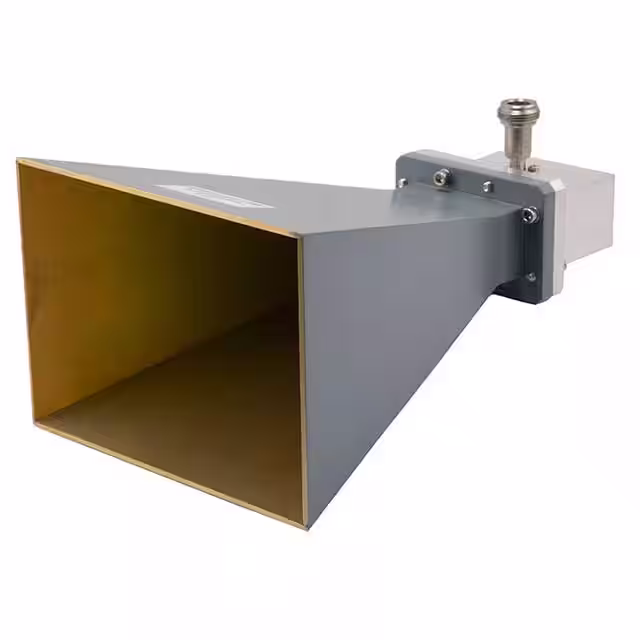

PEWAN187-15NFWR187 GAIN HORN 3.95-5.85GHZ 15D Pasternack |
8 |
|
Таблицы данных |
- | Case | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | N Type Female | - | - | - | Waveguide Flange Mount | 8.258" (209.75mm) | - |
|
|
PEWAN112-15SFWR112 GAIN HRN 7.05-10GHZ 15DBI Pasternack |
2 |
|
Таблицы данных |
- | Tape & Box (TB) | Active | - | Wide Band | 8.525GHz | 7.05GHz ~ 10GHz | Horn | 1 | 1.3 | - | 15dBi | - | Cable - 305mm, Cable - 3.048m, Cable - 7.62m | SMA Female | - | - | - | Waveguide Mount | 2.188" (55.58mm) | General Purpose |
|
PEWAN062-20WR62 GAIN HORN 12.4-18GHZ 20DBI Pasternack |
22 |
|
Таблицы данных |
- | Bulk | Active | Waveguide | Ku Band (12GHz ~ 18GHz) | 15.2GHz | 12.4GHz ~ 18GHz | Horn | 1 | 1.3 | - | 20dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
|
|
PE9856B-10WR-90 Waveguide Standard Gain Ho Pasternack |
11 |
|
Таблицы данных |
- | Retail Package | Active | General ISM | SHF (f > 4GHz) | 10.3GHz | 8.2GHz ~ 12.4GHz | Horn | 1 | 1.5 | - | 10dBi | - | - | - | - | - | - | Waveguide Mount | 2.010" (51.05mm) | General Purpose |
|

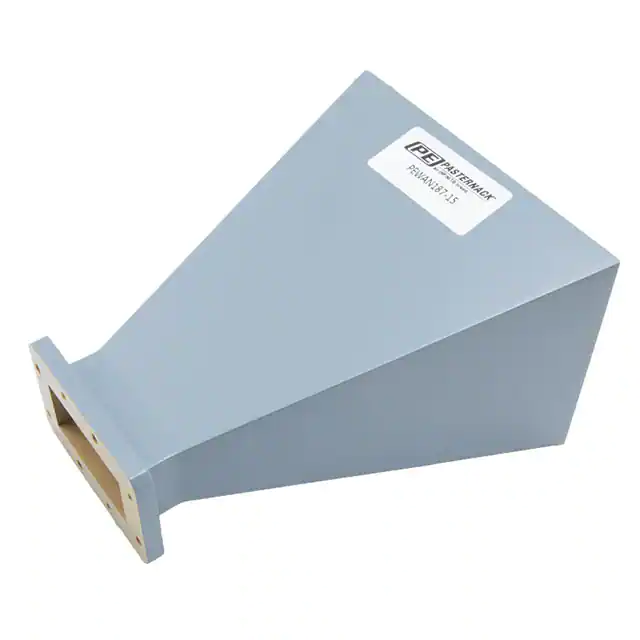

PEWAN187-15WR187 GAIN HORN 3.95-5.85GHZ 15D Pasternack |
8 |
|
Таблицы данных |
- | Bulk | Active | Waveguide | C Band (4GHz ~ 8GHz) | 4.9GHz | 3.95GHz ~ 5.85GHz | Horn | 1 | 1.3 | - | 15dBi | - | - | - | - | - | - | Waveguide Flange Mount | - | - |
