Герконовые реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H12-1B83RELAY REED 3A 12V |
0 |
|
Таблицы данных |
H | Bag | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 7500VAC, 7500VDC - Max | 66.7 mA | Non Latching | - | PC Pin | - | 8.4 VDC | 1 VDC | 3 ms | 1.5 ms | -20°C ~ 70°C | - |
|
|
SIL24-1A75-71LREED RELAY SPST 0.5A 24V |
0 |
|
Таблицы данных |
SIL | Bag | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 16.8 VDC | 3.6 VDC | 0.7 ms | 0.1 ms | -20°C ~ 70°C | - |
|
|
MSS21A05RELAY REED SPST 2A 5V THRU-HOLE |
0 |
|
Таблицы данных |
MSS2 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 35.7 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.2 ms | 1 ms | -38°C ~ 75°C | - |
|
|
MSS21A05BRELAY REED SPST 2A 5V THRU-HOLE |
0 |
|
Таблицы данных |
MSS2 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 2 A | 500VAC, 500VDC - Max | 35.7 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.2 ms | 1 ms | -38°C ~ 75°C | - |
|

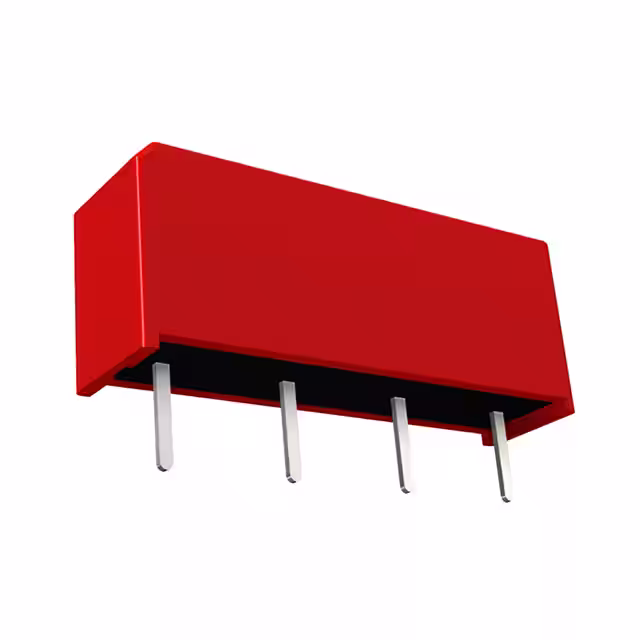

9006-05-00RELAY REED SPST 500MA 5V |
0 |
|
Таблицы данных |
9006 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9006-05-01RELAY REED SPST 500MA 5V |
0 |
|
Таблицы данных |
9006 | Tube | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
|
9006-12-00RELAY REED SPST 500MA 12V |
0 |
|
Таблицы данных |
9006 | Tube | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | Sealed - Hermetically | 9 VDC | 1 VDC | 0.5 ms | 0.2 ms | -20°C ~ 85°C | - |
|
1-1393771-5JWD-171-23=REED RELAYS |
0 |
|
Таблицы данных |
JWD | Box | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 100VDC - Max | 24 mA | Non Latching | - | PC Pin | - | 9.6 VDC | 1 VDC | 1.5 ms | 0.5 ms | -35°C ~ 85°C | Ruthenium (Ru) |
|
|
1380-12-01RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7001-5312RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
7002-5247RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9000-0170RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9090-0037RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9000-0332RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9104-0023RELAY REED |
0 |
|
Таблицы данных |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2902-12-321RELAY 12VOLT 1 FORM A |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
2200-2314-05RELAY REED 2000 |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9012-0006RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1240-0117RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9300-0019RELAY REED |
0 |
|
- |
- | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
