Герконовые реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Ток катушки | Тип катушки | Особенности | Тип вывода | Номинал уплотнения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Рабочая температура | Материал контакта |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFS-1A-05RELAY REED SPST .5A 5V Comus International |
0 |
|
Таблицы данных |
BFS | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFS-1A-12RELAY REED SPST .5A 12V Comus International |
0 |
|
Таблицы данных |
BFS | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
BFM-1A-05RELAY REED SPST .5A 5V Comus International |
0 |
|
Таблицы данных |
BFM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-12RELAY REED SPST .5A 12V Comus International |
0 |
|
Таблицы данных |
BFM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-12ERELAY REED SPST .5A 12V Comus International |
0 |
|
Таблицы данных |
BFM | Tube | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | Electrostatic Shield | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
|
BFM-1A-05CRELAY REED SPST .5A 5V Comus International |
0 |
|
Таблицы данных |
BFM | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | Ruthenium (Ru) |
|
BFH-2A-05RELAY REED DPST .5A 5V Comus International |
0 |
|
Таблицы данных |
BFH | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|
|
BFH 2A-12RELAY REED DPST .5A 12V Comus International |
0 |
|
Таблицы данных |
BFH | Tube | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 12 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
|

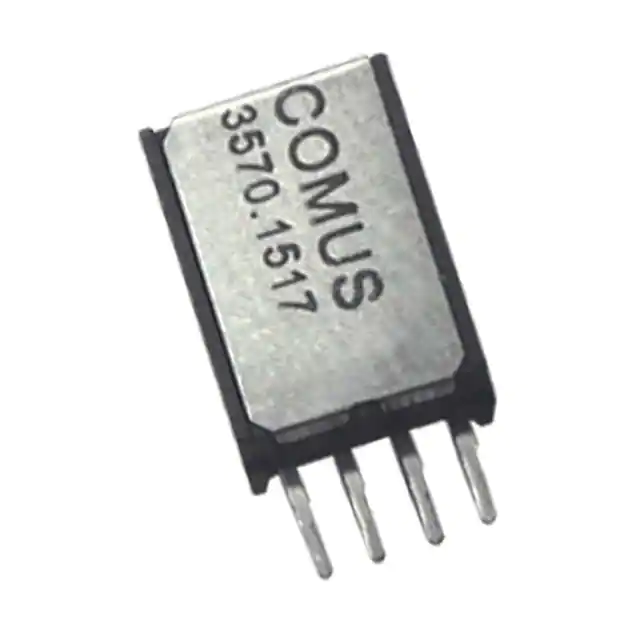

3570-1517-051RELAY REED SIP SPST .5A 5V Comus International |
14 |
|
Таблицы данных |
3570 | Tube | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VDC - Max | 12.5 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.2 ms | 0.1 ms | -40°C ~ 85°C | - |
|
|
BFH-2A-05ERELAY REED DPST .5A 5V Comus International |
0 |
|
Таблицы данных |
BFH | Tube | Active | Through Hole | 5VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 28.6 mA | Non Latching | Electrostatic Shield | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.15 ms | -20°C ~ 85°C | Ruthenium (Ru) |
