Фитинги, муфты и распределители
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Метод подключения | Для использования с/сопутствующими продуктами | Особенности | Рабочее давление | Рабочая температура | Размер резьбы | Тип крепления | Материал | Цвет |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QBL-3/8-3/8-U-MPUSH-IN L-FITTING |
13 |
|
Таблицы данных |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 3/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-1/2-12-IPUSH-IN FITTING |
16 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 12mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/2 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/2-1/2-I-U-MPUSH-IN FITTING |
10 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/2" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | R1/2 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSF-3/8-12-BPUSH-IN FITTING |
13 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 12mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QST-10-8PUSH-IN T-CONNECTOR |
0 |
|
Таблицы данных |
QS | Bulk | Active | T-Fitting | Push-In | 10mm and 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QSLF-1/4-8-BPUSH-IN L-FITTING |
18 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QB-1/2T-UPUSH-IN CONNECTOR |
20 |
|
Таблицы данных |
QB | Bulk | Active | Straight Fitting | Push-In | 1/2" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|

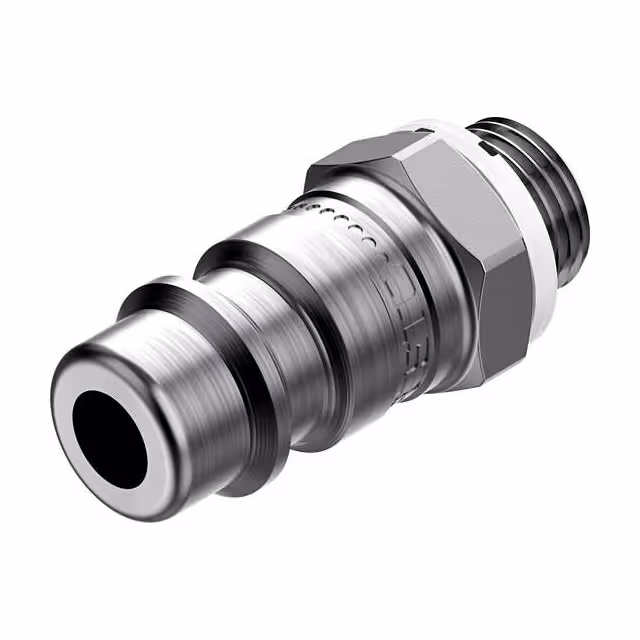

NPHS-S6-M-G18QUICK COUPLING PLUG |
20 |
|
Таблицы данных |
NPHS | Bulk | Active | Coupling Plug | Threaded | - | - | -14 ~ 145 PSI (-1 ~ 10 bar) | -10°C ~ 60°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

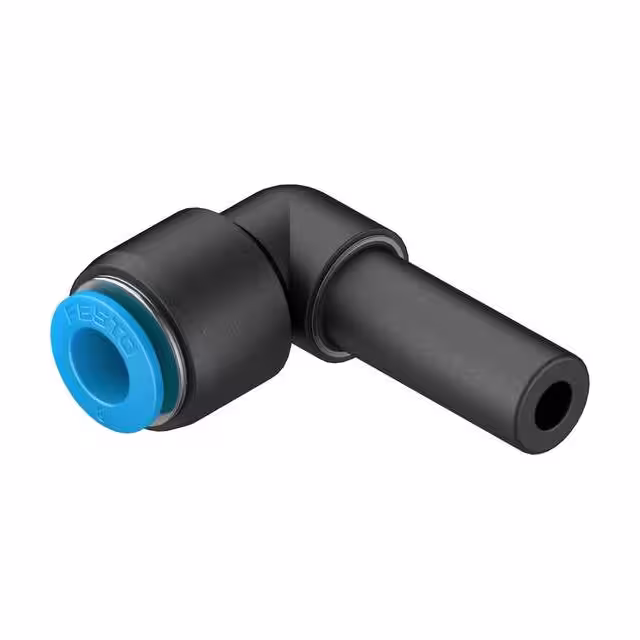

QSL-10H-8PUSH-IN L-CONNECTOR |
20 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

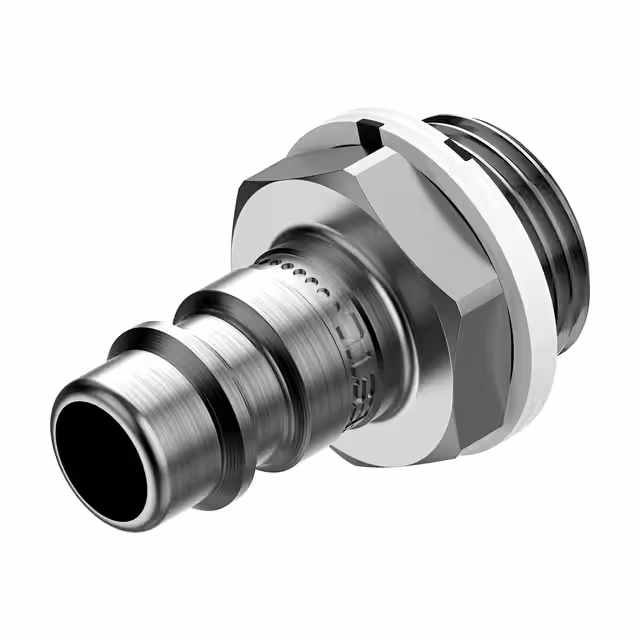

NPHS-S6-M-G38QUICK COUPLING PLUG |
19 |
|
Таблицы данных |
NPHS | Bulk | Active | Coupling Plug | Threaded | - | - | -14 ~ 145 PSI (-1 ~ 10 bar) | -10°C ~ 60°C | G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSLF-3/8-8-BPUSH-IN L-FITTING |
20 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-G1/2-12-IPUSH-IN FITTING |
8 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 12mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/2 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSY-1/8-4PUSH-IN Y-FITTING |
18 |
|
Таблицы данных |
QS | Bulk | Active | Y-Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

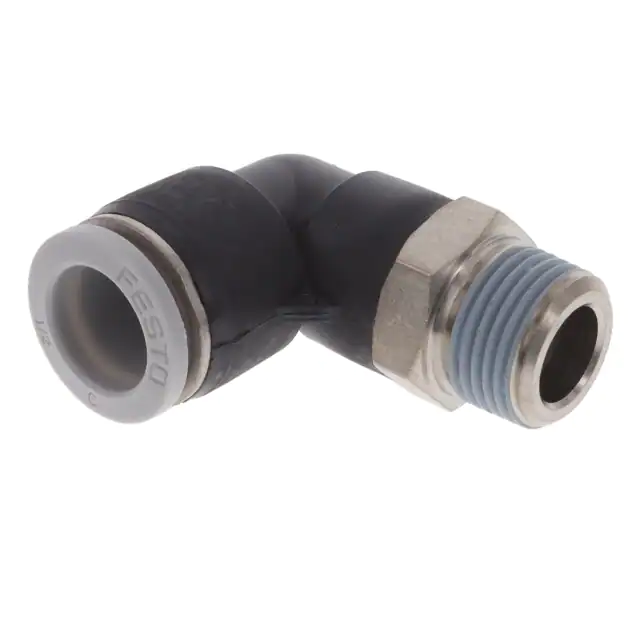

QBL-3/8-1/2-U-MPUSH-IN L-FITTING |
0 |
|
Таблицы данных |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 1/2" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
NPFC-Y-R38-2G38-MFFY-FITTING |
17 |
|
Таблицы данных |
NPFC | Bulk | Active | Y-Fitting | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | R3/8, G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-T-R38-2G38-MFFT-FITTING |
10 |
|
Таблицы данных |
NPFC | Bulk | Active | T-Fitting | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | R3/8, G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-T-2G38-R38-FMFT-FITTING |
9 |
|
Таблицы данных |
- | Bulk | Active | T-Fitting | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G3/8, R3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

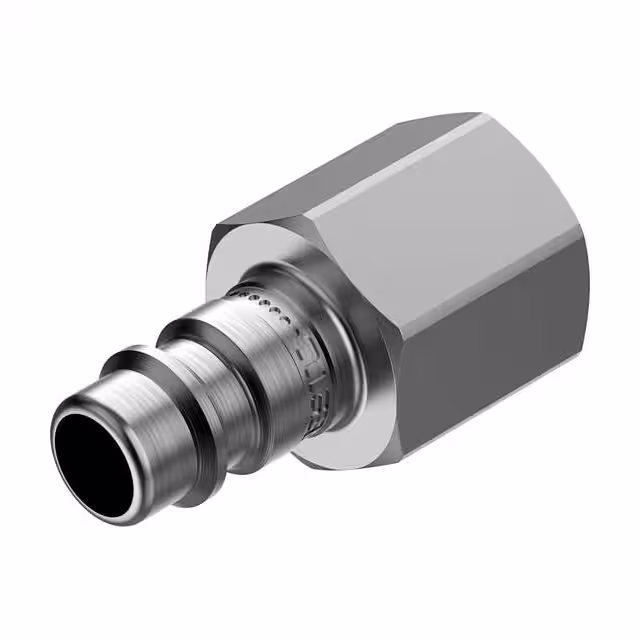

NPHS-S6-M-G38FQUICK COUPLING PLUG |
20 |
|
Таблицы данных |
NPHS | Bulk | Active | Coupling Plug | Threaded | - | - | -14 ~ 145 PSI (-1 ~ 10 bar) | -10°C ~ 60°C | G3/8F | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

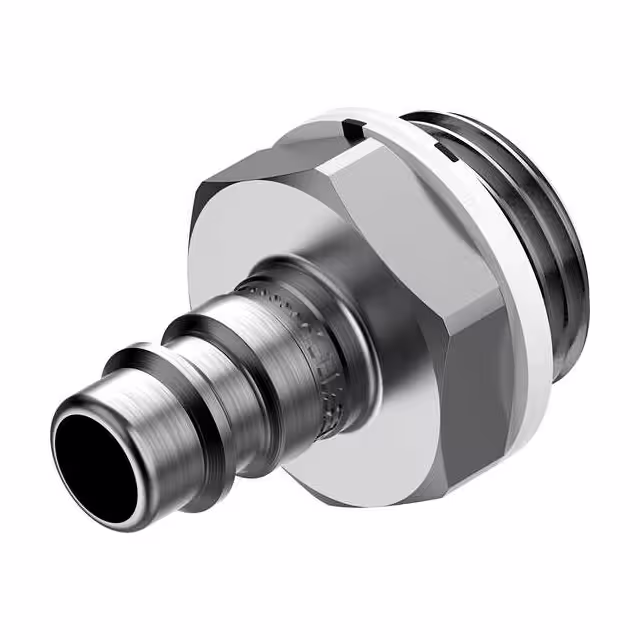

NPHS-S6-M-G12QUICK COUPLING PLUG |
19 |
|
Таблицы данных |
NPHS | Bulk | Active | Coupling Plug | Threaded | - | - | -14 ~ 145 PSI (-1 ~ 10 bar) | -10°C ~ 60°C | G1/2 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QST-1/4-8PUSH-IN T-FITTING |
16 |
|
Таблицы данных |
QS | Bulk | Active | T-Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
