Счетчики, счетчики моточасов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Режим работы | Скорость счета | Формат времени | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Тип входа | Тип выхода | Напряжение - Питание | Сброс | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H7CX-R11D1TACHOMETER LCD 6 CHAR 24V PNL MT |
0 |
|
Таблицы данных |
H7CX | Bulk | Obsolete | Tachometer | Up | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.354" (9.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 24VAC, 12 ~ 24VDC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
C48CD105COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Таблицы данных |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Solid State (2) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGD00000COUNTER LCD 8 CHAR 115/230V PNL |
0 |
|
Таблицы данных |
Legend | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 20kHz | - | 8, 8 | LCD - Green Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
87621222COUNTER LCD 6 CHAR 24V PANEL MT |
0 |
|
Таблицы данных |
CTR48 | Box | Obsolete | Batch, Preset, Tachometer, Timer, Totalizer | Up, Down, Command, Individual, Quadrature | 40kHz | 999999hrs | 6, 6 | LCD - Dual Color Characters, Backlight | 0.354" (9.00mm) | Voltage | Relay (2), Solid State (2) | 24VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
H7CN-XHN AC100-240COUNTER LED 4 CHAR 100-240V PNL |
0 |
|
Таблицы данных |
H7CN | Box | Obsolete | Preset | Up | 5kHz | - | 4 | LED - Red Characters | 0.314" (8.00mm) | No Voltage | Relay | 100 ~ 240VAC | External, Front Panel | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 8 Pin (Octal) | - |
|
|
C48CD107COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Таблицы данных |
C48C | Box | Active | Preset | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

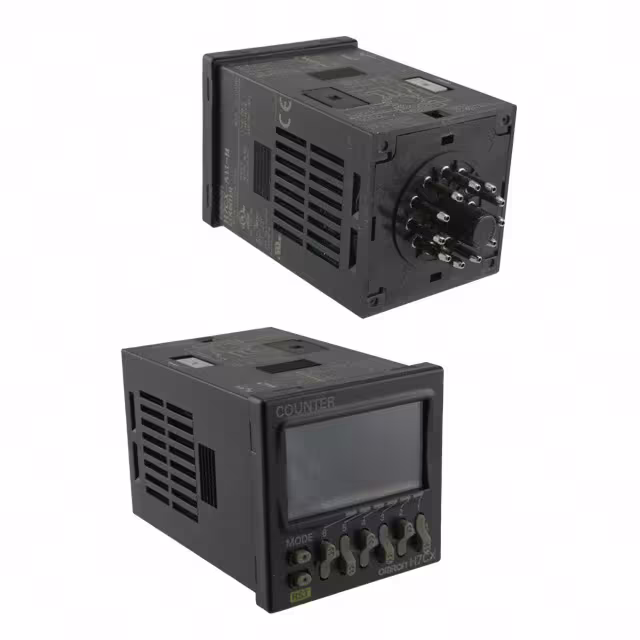

H7CX-A11-N AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
0 |
|
Таблицы данных |
H7CX | Box | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|

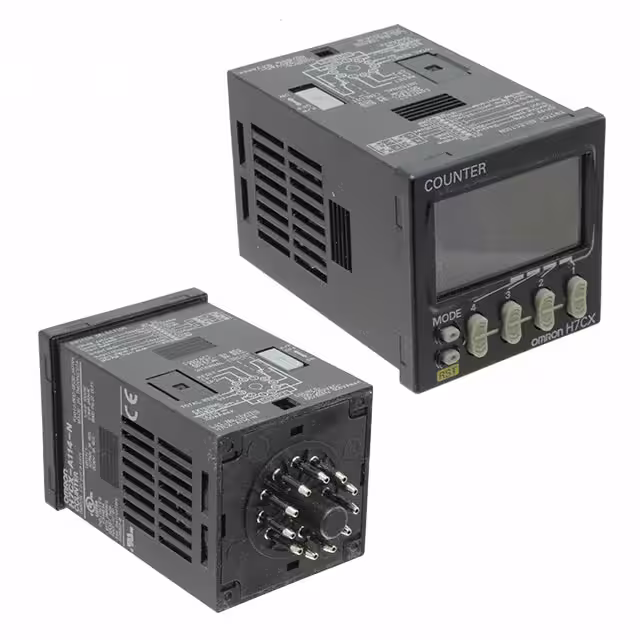

H7CX-A114-N AC100-240COUNTER LCD 4 CHAR 100-240V PNL |
0 |
|
Таблицы данных |
H7CX | Bulk | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.472" (12.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Relay | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-A114S-N AC100-240COUNTER LCD 4 CHAR 100-240V PNL |
0 |
|
Таблицы данных |
H7CX | Bulk | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 4, 4 | LCD - Dual Color Characters, Backlight | 0.472" (12.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-A11S-N AC100-240COUNTER LCD 6 CHAR 100-240V PNL |
0 |
|
Таблицы данных |
H7CX | Bulk | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 100 ~ 240VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|
|
H7CX-A11SD1-N DC12-24/AC24COUNTER LCD 6 CHAR 24V PANEL MT |
0 |
|
Таблицы данных |
H7CX | Bulk | Obsolete | Preset, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 5kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 24VAC, 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Plug In, 11 Pin (Octal) | IP66 - Dust Tight, Water Resistant |
|

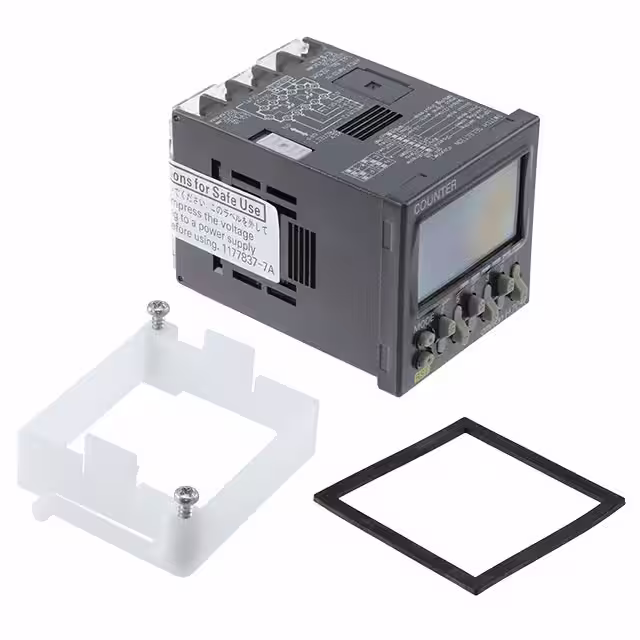

H7CX-AWSD-N DC12-24COUNTER LCD 6 CHAR 12-24V PNL MT |
0 |
|
Таблицы данных |
H7CX | Bulk | Obsolete | Batch, Preset, Tachometer, Totalizer | Up, Down, Command, Individual, Quadrature | 30Hz, 10kHz | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.394" (10.00mm), 0.236" (6.00mm) | No Voltage, Voltage | Solid State | 12 ~ 24VDC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
90217-00COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
84136-26COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
90216-00COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C48CB105COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Таблицы данных |
C48C | Box | Active | Batch, Preset, Totalizer | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Solid State (3) | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
C48CB108COUNTER LCD 6 CHAR 85-250V PANEL |
0 |
|
Таблицы данных |
C48C | Box | Active | Batch, Preset, Totalizer | Up, Down, Quadrature | Multiple | - | 6, 6 | LCD - Dual Color Characters, Backlight | 0.300" (7.62mm), 0.200" (5.08mm) | No Voltage, Voltage | Relay (2), Solid State | 85 ~ 250VAC | External, Front Panel, Programmable | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LGD00100COUNTER LCD 8 CHAR 115/230V PNL |
0 |
|
Таблицы данных |
Legend | Box | Obsolete | Preset, Tachometer | Up, Down, Command, Individual, Quadrature | 20kHz | - | 8, 8 | LCD - Red Characters, Backlight | 0.300" (7.62mm) | No Voltage, Voltage | Relay, Solid State | 115/230VAC, ±12VDC | Front Panel, Programmable | Square - 68.00mm x 68.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXCK110COUNTER LED 6 CHAR 24V PANEL MT |
1 |
|
Таблицы данных |
PAX | Box | Obsolete | Time Counter, Timer | Up | 50Hz | - | 6 | LED - Green Characters | 0.560" (14.20mm) | No Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
88660-00COUNTER HOUR METER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
