Счетчики, счетчики моточасов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Режим работы | Скорость счета | Формат времени | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Тип входа | Тип выхода | Напряжение - Питание | Сброс | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUB4L010COUNTER LCD 6 CHAR 3.6V PANEL MT Red Lion Controls |
0 |
|
Таблицы данных |
CUB4 | Box | Obsolete | Totalizer | Up | 50Hz, 5kHz | - | 6 | LCD - Green Characters, Backlight | 0.480" (12.20mm) | No Voltage, Voltage | - | Battery, 3.6VDC, 6 ~ 26VDC (Backlight) | External, Front Panel | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

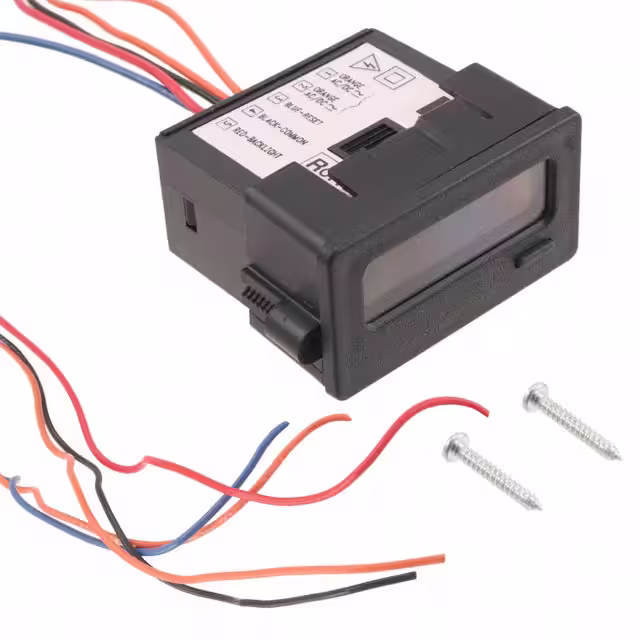

CUB7CVR0COUNTER LCD 8 CHAR 3.6V PANEL MT Red Lion Controls |
0 |
|
Таблицы данных |
CUB7 | Box | Active | Totalizer | Up | 30Hz, 50Hz, 5kHz, 10kHz | - | 8 | LCD - Red Characters, Backlight | 0.350" (8.90mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 26VDC (Backlight) | External, Front Panel | Rectangular - 45.00mm x 22.20mm | Panel Mount | Wire Leads | IP66 - Dust Tight, Water Resistant |
|

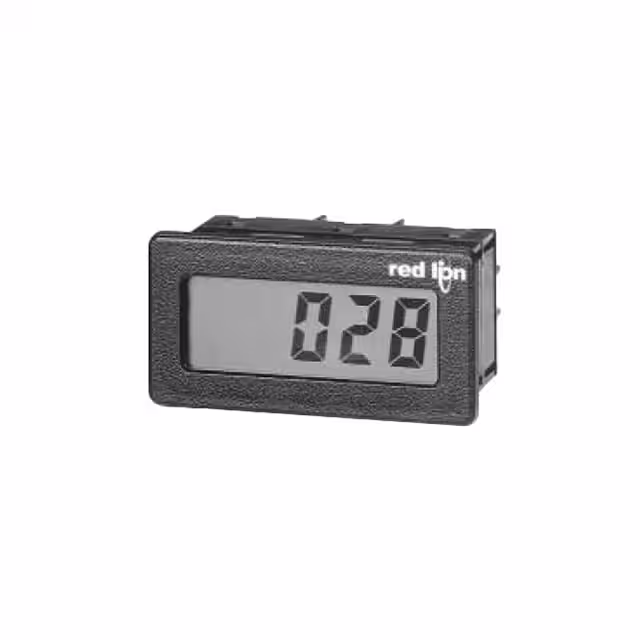

DT800010TACHOMETER LCD 5 CHAR 3.6V PNL Red Lion Controls |
0 |
|
Таблицы данных |
DITAK 8 | Box | Obsolete | Tachometer | Up | - | - | 5 | LCD - Green Characters, Backlight | 0.600" (15.20mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | Non-Resettable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
DT800020TACHOMETER LCD 5 CHAR 3.6V PNL Red Lion Controls |
0 |
|
Таблицы данных |
DITAK 8 | Box | Obsolete | Tachometer | Up | - | - | 5 | LCD - Red Characters, Backlight | 0.600" (15.20mm) | Voltage | - | Battery, 3.6VDC, 6 ~ 28VDC (Backlight) | Non-Resettable | Rectangular - 68.00mm x 33.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
PAXC0000COUNTER LED 6 CHAR 85-250V PANEL Red Lion Controls |
0 |
|
Таблицы данных |
PAX | Box | Obsolete | Totalizer | Up, Down, Command, Quadrature | 34kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
PAXR0000TACHOMETER LED 5 CHAR 85-250V Red Lion Controls |
0 |
|
Таблицы данных |
PAX | Box | Obsolete | Tachometer | Up | 34kHz, 50Hz | - | 5 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 85 ~ 250VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
LNXC2000COUNTER LCD 6 CHAR 115V PANEL MT Red Lion Controls |
0 |
|
Таблицы данных |
LYNX - LNXCC | - | Obsolete | Preset | Up, Down | 12kHz | - | 6 | LCD - Black Characters | 0.299" (7.60mm) | No Voltage | Relay, Solid State | 115VAC | External, Front Panel, Programmable | Square - 50.00mm x 50.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|

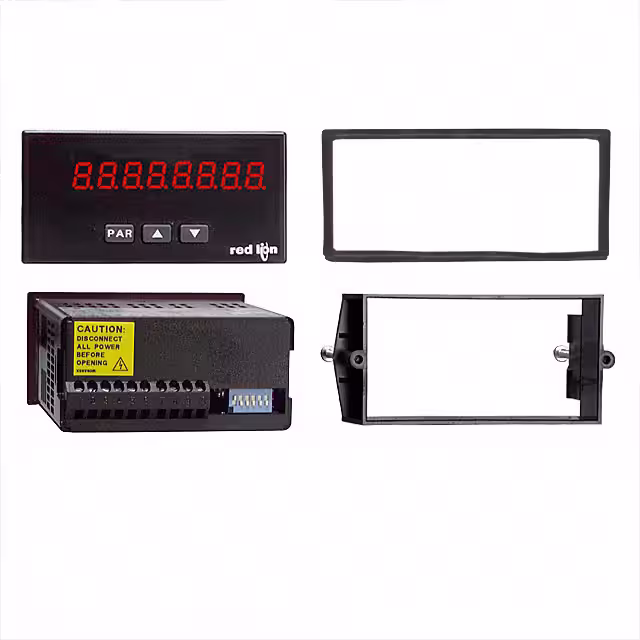

PAXLC800COUNTER LED 8 CHAR 115/230V PNL Red Lion Controls |
0 |
|
Таблицы данных |
PAX®LITE | Bulk | Obsolete | Totalizer | Up, Down | 25kHz | - | 8 | LED - Red Characters | 0.397" (10.10mm) | No Voltage | - | 115/230VAC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
PAXC0010COUNTER LED 6 CHAR 24V PANEL MT Red Lion Controls |
0 |
|
Таблицы данных |
PAX | Box | Obsolete | Totalizer | Up, Down, Command, Quadrature | 34kHz, 50Hz | - | 6 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
|
|
PAXR0010TACHOMETER LED 5 CHAR 24V PNL MT Red Lion Controls |
0 |
|
Таблицы данных |
PAX | Box | Obsolete | Tachometer | Up | 34kHz, 50Hz | - | 5 | LED - Red Characters | 0.560" (14.20mm) | No Voltage, Voltage | Option Cards Available | 24VAC, 11 ~ 36VDC | External, Front Panel | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant |
