Счетчики, счетчики моточасов
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Режим работы | Скорость счета | Формат времени | Количество символов в строке | Тип дисплея | Отображаемые символы - Высота | Тип входа | Тип выхода | Напряжение - Питание | Сброс | Размеры выреза панели | Тип крепления | Тип вывода | Защита от проникновения |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
99782712COUNTER 7 CHAR 100-130V PANEL MT |
8 |
|
Таблицы данных |
CHM24 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 99999.99hrs | 7 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 100 ~ 130VAC | Non-Resettable | Rectangular - 45.00mm x 22.20mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|
|
99772811COUNTER 8 CHAR 36-80V PANEL MT |
21 |
|
Таблицы данных |
CHM48 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 999999.99hrs | 8 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 36 ~ 80VDC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|
|
99772812COUNTER 8 CHAR 100-130V PANEL MT |
10 |
|
Таблицы данных |
CHM48 | Bulk | Obsolete | Time Counter (Hour Meter) | Up | - | 999999.99hrs | 8 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 100 ~ 130VDC | Non-Resettable | Square - 45.00mm x 45.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP52 - Dust Protected |
|
|
R8-491624VDC, FRONT MNT, NON-RESET |
9 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 6 | Decade Wheel | 0.160" (4.06mm) | Voltage | Analog | 24VDC | Non-Resettable | Rectangular - 37.08mm x 25.65mm | Panel Mount | Wire Leads | - |
|
|
R7-4916115VDC, FRONT MNT, NON-RESET |
7 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | - | - | 6 | Decade Wheel | 0.160" (4.06mm) | Voltage | Analog | 110VDC | Non-Resettable | Rectangular - 37.08mm x 25.65mm | Panel Mount | Wire Leads | - |
|
732-0001HOURMETER 10-80 VDC 3-HOLE |
41 |
|
Таблицы данных |
732 | Box | Active | Time Counter (Hour Meter) | - | - | 99999.9hrs | 6 | Decade Wheel | 0.140" (3.60mm) | Voltage | - | 10 ~ 80VDC | Non-Resettable | Circular - 50.60mm Dia | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
722-0001HOURMTER 90-264 50-60 2-HOLE |
18 |
|
Таблицы данных |
722 | Box | Active | Time Counter (Hour Meter) | - | - | 99999.9hrs | 6 | Decade Wheel | 0.140" (3.60mm) | Voltage | - | 90 - 264VAC | Non-Resettable | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
722-0002HOURMTER 90-264 50/60 FL RECT |
14 |
|
Таблицы данных |
722 | Box | Active | Time Counter (Hour Meter) | - | - | 99999.9hrs | 6 | Decade Wheel | 0.140" (3.60mm) | Voltage | - | 90 - 264VAC | Non-Resettable | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
732-0002HOURMETER 10-80 VDC FL RECT |
14 |
|
Таблицы данных |
732 | Box | Active | Time Counter (Hour Meter) | - | - | 99999.9hrs | 6 | Decade Wheel | 0.140" (3.60mm) | Voltage | - | 10 ~ 80VDC | Non-Resettable | Rectangular - 36.80mm x 24.10mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
|
722-0030HR, 90-264 VAC 50/60 Square 1.9" |
10 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Down, Up | - | - | 6 | Decade Wheel | 0.140" (3.60mm) | Voltage | Analog | 90 ~ 264VAC | Non-Resettable | Square - 48.26mm x 48.26mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant, NEMA 4X, 12 |
|
|
HMA302/120VAC/60HZHR, 120VAC, 60HZ, 2-HOLE W/ 2 SC |
9 |
|
Таблицы данных |
- | Retail Package | Active | Time Counter (Hour Meter) | Up | 60Hz | 999999.9hrs | 7 | Decade Wheel | - | Voltage | Analog | 120VAC | Non-Resettable | Rectangular - 37.08mm x 23.88mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant |
|
|
HMA461/120VAC/60HZHR, 120VAC, 60HZ, FLSH SQR, VER. |
9 |
|
Таблицы данных |
HMA | Box | Active | Time Counter (Hour Meter) | Up | 60Hz | 999999.9hrs | 7 | Decade Wheel | - | Voltage | - | 120VAC | Non-Resettable | - | DIN Rail | Screw Terminal | IP65 - Dust Tight, Water Resistant |
|
732-0014HR, 10-80 VDC Cup Blk With 16inc |
7 |
|
Таблицы данных |
732 | Box | Active | Time Counter (Hour Meter) | - | - | 99999.9hrs | 6 | Decade Wheel | 0.140" (3.60mm) | Voltage | - | 10 ~ 80VDC | Non-Resettable | Circular - 50.60mm Dia | Panel Mount | Quick Connect - 0.250" (6.3mm) | - |
|
3400-0000COUNTER AC/DC 2-HOLE 1/4" SPD NR |
20 |
|
Таблицы данных |
3400 | Box | Active | Preset, Totalizer | - | 40Hz | 99999999 | 8 | LCD, Black Characters, Backlight | 0.275" (7.00mm) | Voltage | - | - | Non-Resettable | Rectangular - 44.45mm x 27.90mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
3410-0000HOURMTER AC/DC 2-HOLE 1/4" SPD N |
19 |
|
Таблицы данных |
3410 | Box | Active | Time Counter (Hour Meter) | - | - | 9999999.9hrs | 8 | LCD, Black Characters, Backlight | 0.275" (7.00mm) | Voltage | - | - | Non-Resettable | Rectangular - 44.45mm x 27.90mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|

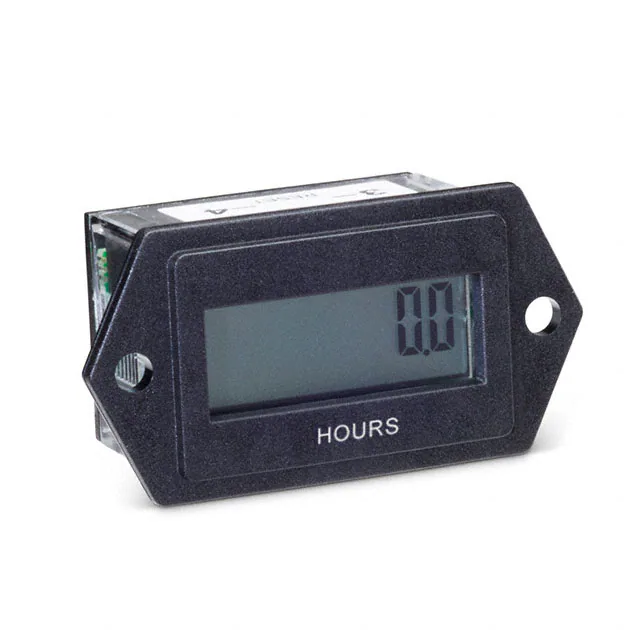

3410-0010HOURMTER AC/DC 2-HOLE 1/4" SPD R |
10 |
|
Таблицы данных |
3410 | Box | Active | Time Counter (Hour Meter) | - | - | 9999999.9hrs | 8 | LCD, Black Characters, Backlight | 0.275" (7.00mm) | Voltage | - | - | External | Rectangular - 44.45mm x 27.90mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant |
|
|
3410-2060AC/DC HR FLRT Rrst w/ Leads |
10 |
|
Таблицы данных |
- | Retail Package | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
99778806COUNTER 7 CHAR 12V PANEL MOUNT |
0 |
|
Таблицы данных |
CIM15 | Bulk | Obsolete | Totalizer | Up | - | 9999999hrs | 7 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 12VDC | Non-Resettable | Rectangular - 30.00mm x 13.00mm | Panel Mount | Wire Leads | IP66 - Dust Tight, Water Resistant |
|
|
99776704COUNTER 6 CHAR 24V PANEL MOUNT |
70 |
|
Таблицы данных |
- | Bulk | Obsolete | Totalizer | Up | - | 999999hrs | 6 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 24VAC | Non-Resettable | Rectangular - 44.00mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
|
|
99776702COUNTER 6 CHAR 115V PANEL MOUNT |
0 |
|
Таблицы данных |
- | Bulk | Obsolete | Totalizer | Up | - | 999999hrs | 6 | Decade Wheel | 0.157" (4.00mm) | Voltage | - | 115VAC | Non-Resettable | Rectangular - 44.00mm x 24.00mm | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 |
