Осцилляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Базовый резонатор | Тип | Частота | Функция | Выход | Напряжение - Питание | Стабильность частоты | Абсолютный диапазон натяжения (APR) | Рабочая температура | Ширина полосы пропускания расширенного спектра | Ток - Питание (макс.) | Номинальные значения | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SG7050CCN 20.000000M-HJGA3XTAL OSC XO 20.0000MHZ CMOS SMD EPSON |
460 |
|
Таблицы данных |
SG7050 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 20 MHz | Enable/Disable | CMOS | 4.5V ~ 5.5V | ±50ppm | - | -40°C ~ 85°C | - | 20mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|
|
SG7050CCN 8.000000M-HJGA3XTAL OSC XO 8.0000MHZ CMOS SMD EPSON |
399 |
|
Таблицы данных |
SG7050 | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 8 MHz | Enable/Disable | CMOS | 4.5V ~ 5.5V | ±50ppm | - | -40°C ~ 85°C | - | 20mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.059" (1.50mm) |
|
TG2016SMN 38.4000M-MCGNNM0TG2016SMN 38.4000M-MCGNNM0: TCXO EPSON |
225 |
|
Таблицы данных |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 38.4 MHz | - | Clipped Sine Wave | 1.7V ~ 3.63V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
|
SG5032VAN 200.000000M-KEGA0XTAL OSC XO 200.000000MHZ LVDS EPSON |
207 |
|
Таблицы данных |
SG5032VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.197" L x 0.126" W (5.00mm x 3.20mm) | 0.047" (1.20mm) |
|
SG3225VAN 125.000000M-KEGA0XTAL OSC XO 125.0000MHZ LVDS SMD EPSON |
3,119 |
|
Таблицы данных |
SG3225VAN | 6-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 125 MHz | Enable/Disable | LVDS | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 30mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
TG2520SMN 40.0000M-ECGNNM3XTAL OSC TCXO 40.0000MHZ CSWV EPSON |
5,192 |
|
Таблицы данных |
TG2520SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 40 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
|
TG2520SMN 20.0000M-ECGNNM3XTAL OSC TCXO 20.0000MHZ CSWV EPSON |
2,293 |
|
Таблицы данных |
TG2520SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 20 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|

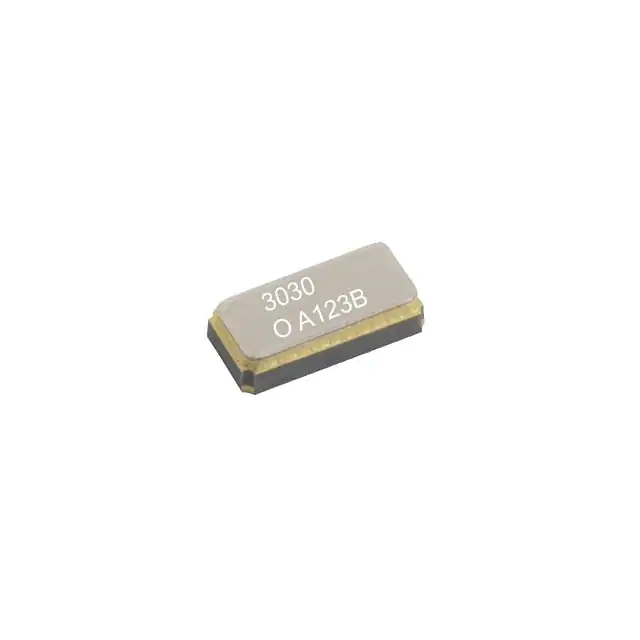

SG-3031CM 32.7680KB3XTAL OSC XO 32.768HZ SMD EPSON |
1,244 |
|
Таблицы данных |
SG-3031CM | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | XO (Standard) | 32.768 kHz | - | CMOS | 1.2V ~ 5.5V | - | - | -40°C ~ 105°C | - | 1.3µA | - | Surface Mount | 4-SMD (3.2x1.5) | 0.126" L x 0.059" W (3.20mm x 1.50mm) | 0.035" (0.90mm) |
|
TG2016SMN 38.4000M-MCGNNM3XTAL OSC TCXO 38.4000MHZ CSWV EPSON |
1,511 |
|
Таблицы данных |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 38.4 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
|
|
TG2016SMN 25.0000M-ECGNNM3XTAL OSC TCXO 25.0000MHZ CSWV EPSON |
774 |
|
Таблицы данных |
TG2016SMN | 4-SMD, No Lead | Tape & Reel (TR) | Active | Crystal | TCXO | 25 MHz | - | Clipped Sine Wave | 1.8V | ±500ppb | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 4-VDFN (3.2x2.5) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.029" (0.73mm) |
