0Триак, выходные оптоизоляторы SCR
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FODM3053R3OPTOISOLATOR 3.75KV TRIAC 4MFP |
0 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | BSI, CSA, UL |
|
H11C1SDOPTOISOLATOR 5.3KV SCR 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | SCR | No | 1 | 5300Vrms | 200 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | UR |
|
|
ELT3061OPTOISOLATOR 5KV TRIAC 4DIP |
0 |
|
Таблицы данных |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 15mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL |
|
|
ELT3062OPTOISOLATOR 5KV TRIAC 4DIP |
0 |
|
Таблицы данных |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL |
|
|
ELT3063OPTOISOLATOR 5KV TRIAC 4DIP |
0 |
|
Таблицы данных |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | - | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL |
.jpg)
|
IL440-6OPTOISOLATOR 5.3KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 400 V | 50V/µs (Typ) | 5mA | 100 mA | 1mA (Typ) | - | 1.25V | 60 mA | -40°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, cUR, UR |
|
|
H11C4OPTOISOLATOR 5.3KV SCR 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | SCR | No | 1 | 5300Vrms | 400 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR |
|
|
H11C4SOPTOISOLATOR 5.3KV SCR 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tube | Obsolete | SCR | No | 1 | 5300Vrms | 400 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | UR |
|
|
H11C4SDOPTOISOLATOR 5.3KV SCR 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | SCR | No | 1 | 5300Vrms | 400 V | 500V/µs | 20mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | UR |
|
PC3SD21YXPDHOPTOISOLATOR 5KV TRIAC SMD |
0 |
|
- |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
PC3SF21YVZAHPHOTOTRIAC COUPLER |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | - | 10mA | 100 mA | - | - | - | - | - | Through Hole | 6-DIP | - |
|
|
ELT3052M-VOPTOISOLATOR 5KV TRIAC 4DIP |
0 |
|
Таблицы данных |
- | 4-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | - | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 4-DIP | cUL, Demko, Fimko, Nemko, Semko, UL, VDE |
|
EL3053M-VOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
EL3061MOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 15mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|

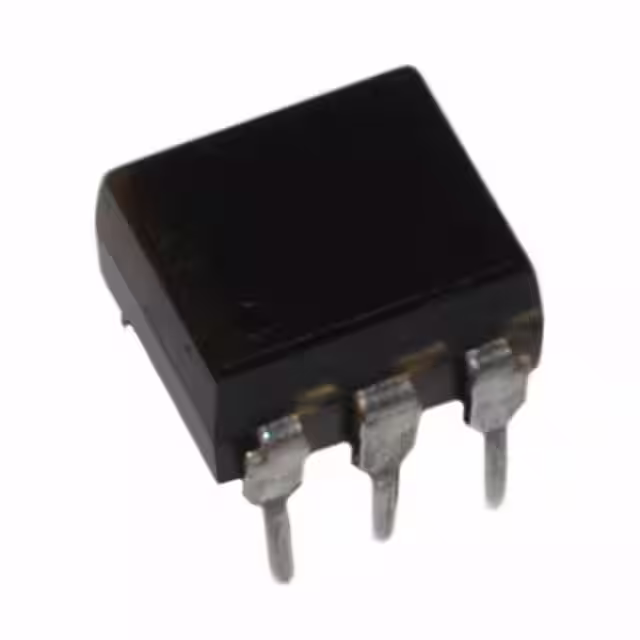

Q3022OPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
Q302X | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 10mA | - | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
|
|
Q3023OPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
Q302X | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 5mA | - | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | UR, VDE |
.JPG)
|
EL3083S1(TA)OPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 800 V | 600V/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
OR-MOC3073(L)S-TA1OPTOISOLATOR TRIAC OUTPUT 5000VR |
0 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
EL3063M-VOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
PC4SD21NTZCOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
