БОМ
Триак, выходные оптоизоляторы SCR
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VOT8121AB-T2OPTOCOUPLER PHOTOTRIAC 800V SMD4 |
3,699 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 800 V | 1kV/µs | 10mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SMD | CQC, cUL, UL, VDE |
|
VOT8121ADOPTOCOUPLER PHOTOTRIAC 800V DIP4 |
2,577 |
|
Таблицы данных |
- | 4-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 1 | 5300Vrms | 800 V | 1kV/µs | 10mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Through Hole | 4-DIP | CQC, cUL, UL, VDE |
|
VOM160RTOPTOISOLATOR 3.75KV TRIAC 4SOP |
5,000 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 500V/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SOP (2.54mm) | CQC, cUR, UR |
.JPG)
|
EL3063S(TA)OPTOISOLATOR 5KV TRIAC 6SMD |
3,128 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 280µA (Typ) | - | 1.5V (Max) | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
MOC3063MOPTOISOLATOR 4.17KV TRIAC 6DIP |
5,033 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
|
MOC3031MOPTOISOLATOR 4.17KV TRIAC 6DIP |
937 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 250 V | 1kV/µs | 15mA | - | 400µA (Typ) | - | 1.25V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
|
VOT8024AM-TOPTOCOUPLER PHOTOTRIAC SOP-4 |
4,123 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 3750Vrms | 800 V | 1kV/µs | 5mA | 100 mA | 400µA (Typ) | - | 1.2V | 50 mA | -55°C ~ 110°C | Surface Mount | 4-SOP | cUL, UL |
|
MOC3082SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
2,133 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 10mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
|
MOC3061SR2MOPTOISOLATOR 4.17KV TRIAC 6SMD |
3,021 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
|
|
MOC3063SR2VMOPTOISOLATOR 4.17KV TRIAC 6SMD |
1,056 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 600V/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | IEC/EN/DIN, UL |
|
MOC3081TVMOPTOISOLATOR 4.17KV TRIAC 6DIP |
984 |
|
Таблицы данных |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 800 V | 600V/µs | 15mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | IEC/EN/DIN, UL |
|
TLP3052A(TP1,FOPTO TRIAC COUPLER; NON-ZERO-VOL |
4,095 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 600 V | 2kV/µs (Typ) | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, cUR, UR |
.jpg)
|
VO3062OPTOISOLATOR 5.3KV TRIAC 6DIP |
1,037 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 5300Vrms | 600 V | 1.5kV/µs | 10mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, UR |
|
VO3053-X007TOPTOISOLATOR 5.3KV TRIAC 6SMD |
1,228 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5300Vrms | 600 V | 1.5kV/µs | 5mA | 100 mA | 200µA (Typ) | - | 1.2V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | cUR, UR |
|
FODM3053-NF098OPTOISOLATOR 3.75KV TRIAC 4MFP |
3,353 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR |
|
|
TLP3062A(TP1,FOPTO TRIAC COUPLER; ZERO-VOLTAGE |
1,509 |
|
Таблицы данных |
- | 6-SMD (5 Leads), Gull Wing | Tape & Reel (TR) | Active | Triac | Yes | 1 | 5000Vrms | 600 V | 2kV/µs (Typ) | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, cUR, UR |
|
|
FODM3053R2V-NF098OPTOISOLATOR 3.75KV TRIAC 4MFP |
3,097 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 3750Vrms | 600 V | 1kV/µs | 5mA | 70 mA | 300µA (Typ) | - | 1.2V | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUR, UR, VDE |
|
|
MOC3053SM6PW RP TRIAC SMD |
1,263 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tube | Active | Triac | No | 1 | 4170Vrms | 600 V | 1kV/µs | 6mA | - | 540µA (Typ) | - | 1.18V | 60 mA | -40°C ~ 85°C | Surface Mount | 6-SMD | UL |
.jpg)
|

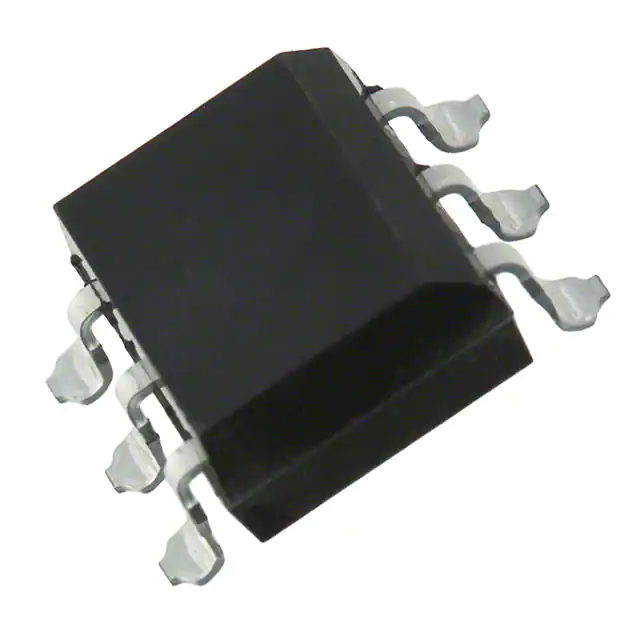

TLP748J(TP1,F)OPTOISOLATOR 4KV SCR 6SMD |
11,982 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Last Time Buy | SCR | No | 1 | 4000Vrms | 600 V | 5V/µs | 10mA | 150 mA | 1mA | 15µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-SMD | BSI, SEMKO, UR |
|
|
MOC3163MOPTOISOLATOR 4.17KV TRIAC 6DIP |
812 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | Triac | Yes | 1 | 4170Vrms | 600 V | 1kV/µs | 5mA | - | 500µA (Typ) | - | 1.3V | 60 mA | -40°C ~ 85°C | Through Hole | 6-DIP | UL |
