Логические выходные оптоизоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Количество каналов | Входы - Сторона 1/Сторона 2 | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Тип входа | Тип выхода | Ток - выход/канал | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Время нарастания/спада (тип.) | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS9851-2-AXOPTOISO 2.5KV 2CH PSH PULL 8SSOP |
0 |
|
Таблицы данных |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
OPI1290-032OPTOISO PUSH PULL |
0 |
|
- |
- | Nonstandard, 5 Lead | Bulk | Active | 1 | 1/0 | - | - | DC | Push-Pull, Totem Pole | - | - | 5µs, 5µs (Typ) | 25ns, 25ns | 2.3V (Max) | - | 4.5V ~ 16V | - | - | -20°C ~ 75°C | Through Hole | - |
|
HCPL-2430-020EOPTOISO 5KV 2CH PUSH PULL 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-2430-060EOPTOISO 3.75KV 2CH PSH PULL 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-2232#500OPTOISO 3.75KV PUSH PULL 8DIP GW |
0 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
OPI127OPTOISO 15KV PUSH PULL |
0 |
|
Таблицы данных |
- | - | Bulk | Obsolete | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
OPI128OPTOISO 15KV OPEN COLLECTOR |
0 |
|
Таблицы данных |
- | - | Bulk | Active | 1 | 1/0 | 15000VDC | - | DC | Open Collector | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | - |
|

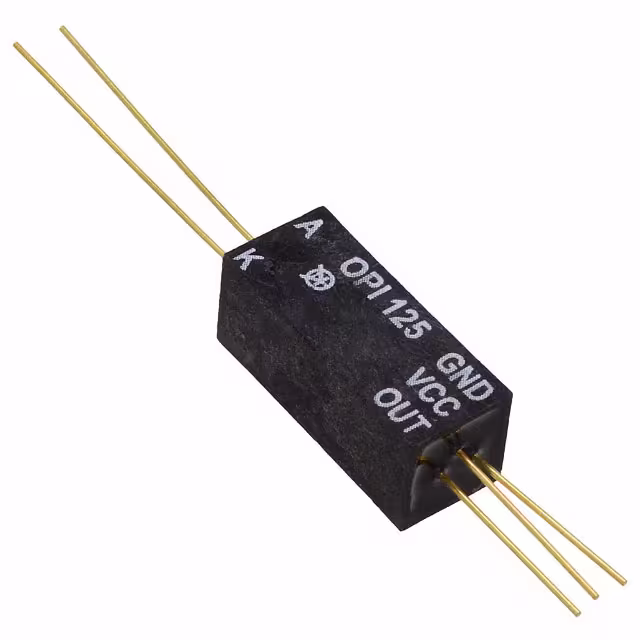

OPI125OPTOISO 15KV PUSH PULL |
0 |
|
- |
- | Axial - 5 Leads | Bulk | Obsolete | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | - |
|
|
HCPL-2430#500OPTOISO 3.75KV PUSH PULL 8DIP GW |
0 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2430#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
0 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|

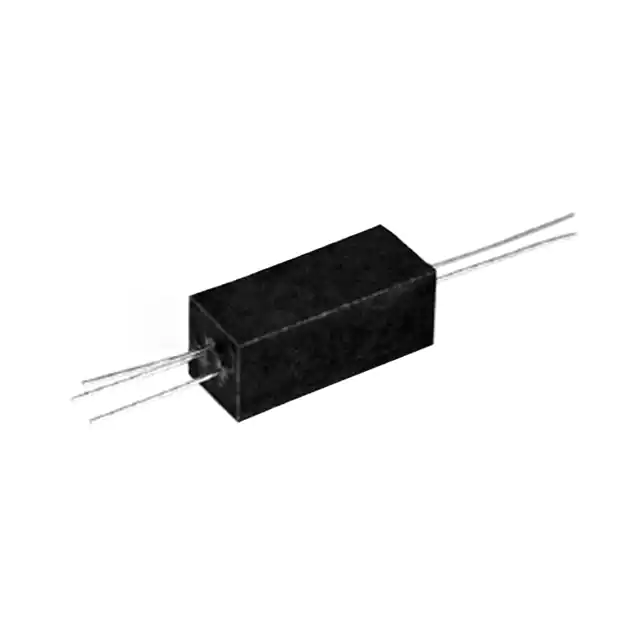

OPI127-032OPTOISO 15KV PUSH PULL |
0 |
|
- |
- | Axial - 4 Leads | Bulk | Active | 1 | 1/0 | 15000VDC | - | DC | Push-Pull, Totem Pole | - | 250kbps | 5µs, 5µs (Typ) | 100ns, 100ns | 1.5V (Max) | 25mA | 4.5V ~ 5.5V | - | - | -55°C ~ 100°C | Through Hole | Axial |
|
|
HCPL-5600#100OPTOISO 1.5KV OPEN COLL 8SMD |
0 |
|
Таблицы данных |
- | 8-SMD Butt Joint | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
HCPL-5600#200OPTOISO 1.5KV OPN COLLECTOR 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
ACPL-5600LOPTOISO 1.5KV OPN COLLECTOR 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
ACPL-5600L-100OPTOISO 1.5KV OPEN COLL 8SMD |
0 |
|
Таблицы данных |
- | 8-SMD Butt Joint | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Butt Joint |
|
|
ACPL-5600L-200OPTOISO 1.5KV OPN COLLECTOR 8DIP |
0 |
|
Таблицы данных |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-5600#300OPTOISO 1.5KV OPEN COLL 8DIP GW |
0 |
|
Таблицы данных |
- | 8-CSMD, Gull Wing | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-5600L-300OPTOISO 1.5KV OPEN COLL 8DIP GW |
0 |
|
Таблицы данных |
- | 8-CSMD, Gull Wing | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 20ns, 8ns | 1.55V | 20mA | 3V ~ 3.6V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|

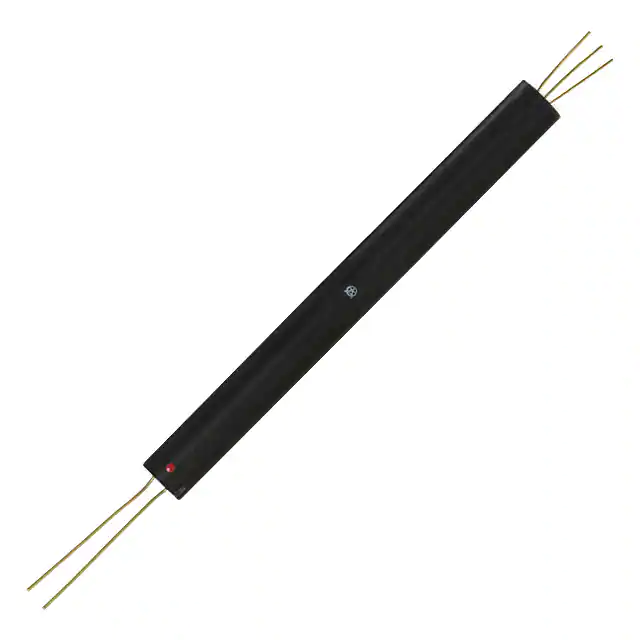

OPI155OPTOISO 50KV OPEN COLLECTOR |
0 |
|
- |
- | - | Bulk | Active | 1 | 1/0 | 50000VDC | - | DC | Open Collector, Schottky Clamped | 25 mA | 5Mbps | 70ns, 120ns | - | 1.2V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | - |
|
|
HCPL-5601OPTOISO 1.5KV OPN COLLECTOR 8DIP |
0 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
