Логические выходные оптоизоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Количество каналов | Входы - Сторона 1/Сторона 2 | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Тип входа | Тип выхода | Ток - выход/канал | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Время нарастания/спада (тип.) | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

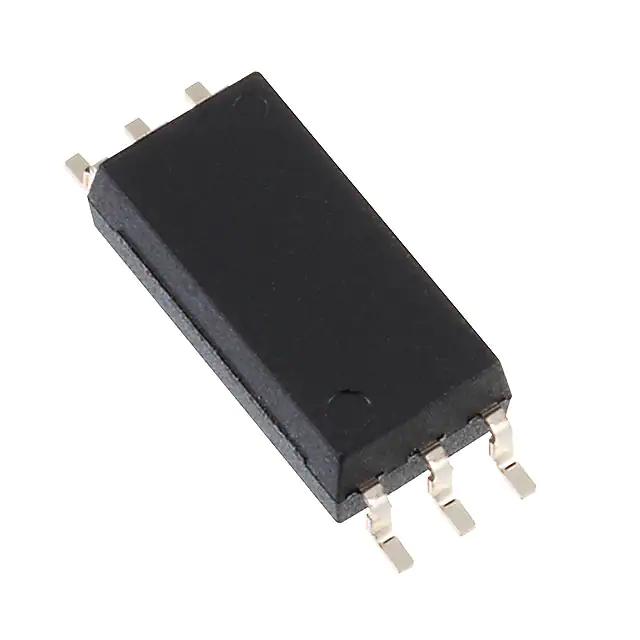

TLP2768A(TP,EZSOL6ICTST20M,ACTIVE, Toshiba Semiconductor and Storage |
1,307 |
|
Таблицы данных |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
.JPG)
|
TLP2304(TPR,EPHOTOCOUPLER HIGH SPEED 5PIN Toshiba Semiconductor and Storage |
3,416 |
|
Таблицы данных |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 15 mA | 1MBd | 550ns, 400ns | - | 1.55V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
TLP2304(TPL,EHIGH SPEED PHOTOCOUPLER; 5PIN SO Toshiba Semiconductor and Storage |
1,201 |
|
Таблицы данных |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 15 mA | 1MBd | 550ns, 400ns | - | 1.55V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
TLP5702(TP,EX36 PB-F DRIVER COUPLER 2.5A FAS Toshiba Semiconductor and Storage |
917 |
|
Таблицы данных |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 1 A | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP2366(E)OPTOISO 3.75KV PUSH PULL SO6-5 Toshiba Semiconductor and Storage |
513 |
|
Таблицы данных |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP5702(EX36 PB-F DRIVER COUPLER 2.5A FAS Toshiba Semiconductor and Storage |
174 |
|
Таблицы данных |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 1 A | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP2366(V4-TPL,EOPTOISO 3.75KV PSH PULL SO6-5 Toshiba Semiconductor and Storage |
24,896 |
|
Таблицы данных |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP104(TPL,EOPTOISO 3.75KV OPEN COLL SO6-5 Toshiba Semiconductor and Storage |
4,688 |
|
- |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Last Time Buy | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP104(V4-TPL,EOPTOISO 3.75KV OPEN COLL SO6 Toshiba Semiconductor and Storage |
1,701 |
|
- |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Last Time Buy | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2310(TPL,EHIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage |
3,414 |
|
Таблицы данных |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5Mbps | 250ns, 250ns | 11ns, 13ns | 1.53V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
