Логические выходные оптоизоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Количество каналов | Входы - Сторона 1/Сторона 2 | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Тип входа | Тип выхода | Ток - выход/канал | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Время нарастания/спада (тип.) | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP2405(F)OPTOISO 3.75KV PSH PULL 8SOIC Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.57V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
TLP2468(F)OPTOISO 3.75KV OPN COLLECTOR 8SO Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|
TLP2098(TPL,F)X36 PB-F OPTOCOUPLER; MFSOP6; TA Toshiba Semiconductor and Storage |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 15kV/µs | AC, DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.57V | 20mA | 3V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 5 Lead |
|
TLP2601(LF1,F)X36 PB-F PHOTOCOUPLER SMD BULK J Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 75ns, 75ns | 30ns, 30ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Surface Mount | 8-SMD |
|
TLP2631(LF5,F)X36 PB PHOTOCOUPLER SMD BULK JAP Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |

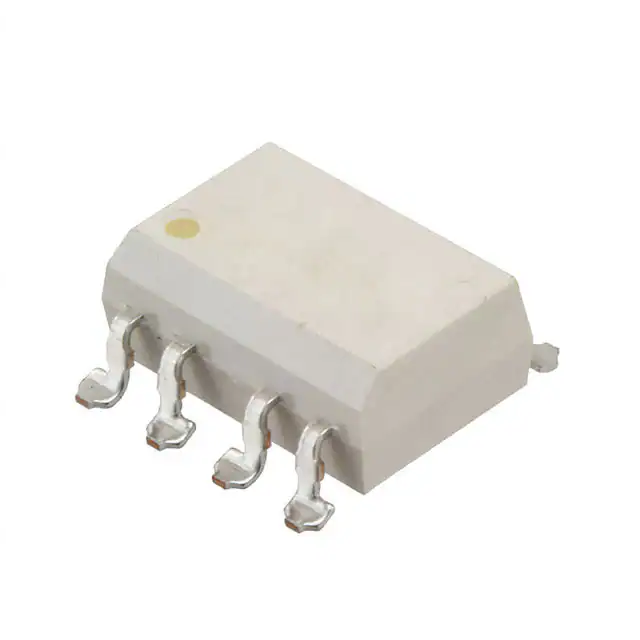

- | 8-SMD, Gull Wing | Tube | Obsolete | 2 | 2/0 | 2500Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 16 mA | 10MBd | 75ns, 75ns | 30ns, 30ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
.jpg)
|
TLP701H(TP,F)X36 PB-F PHOTOCOUPLER SMD BULK J Toshiba Semiconductor and Storage |
0 |
|
Таблицы данных |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 600 mA | - | 700ns, 700ns | 50ns, 50ns | 1.57V | 25mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SDIP |
|
TLP754(TP1,F)HIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage |
0 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 15 mA | - | 400ns, 550ns | - | 1.55V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
TLP2761F(D4,F)OPTOCOUPLER TRANS Toshiba Semiconductor and Storage |
0 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761F(D4-TP,F)OPTOCOUPLER TRANS Toshiba Semiconductor and Storage |
0 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
|
TLP2761F(F)OPTOCOUPLER TRANS Toshiba Semiconductor and Storage |
0 |
|
- |
- | 6-SOIC (0.295", 7.50mm Width) | Bulk | Obsolete | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
