Логические выходные оптоизоляторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Количество каналов | Входы - Сторона 1/Сторона 2 | Напряжение - Изоляция | Устойчивость к синфазным переходным процессам (мин.) | Тип входа | Тип выхода | Ток - выход/канал | Скорость передачи данных | Задержка распространения tpLH / tpHL (макс.) | Время нарастания/спада (тип.) | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Напряжение - Питание | Марка | Квалификация | Рабочая температура | Тип крепления | Устройство поставщика Упаковка |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACSL-6400-00TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
580 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 4/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6400-50TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
4,036 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 4 | 4/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6400-06TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
1,930 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 4/0 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
HCPL-063LOPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,369 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|

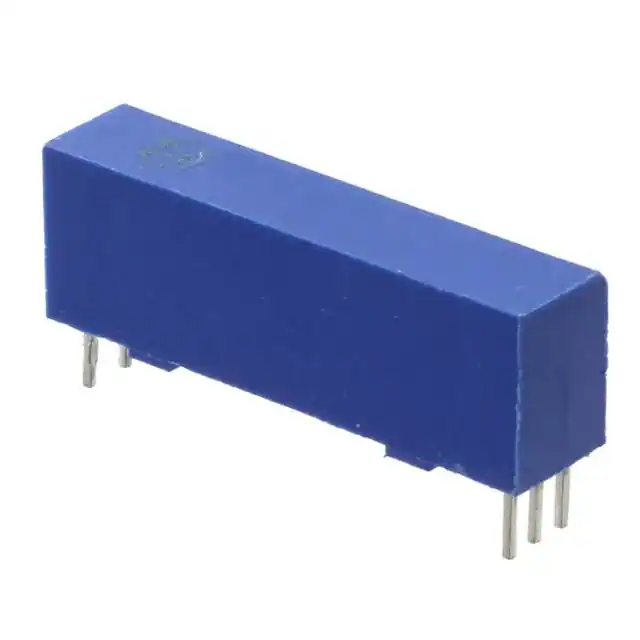

OPI1268SOPTOISO 20KV OPEN COLLECTOR |
4,432 |
|
Таблицы данных |
- | 6-DIP (1.100", 27.94mm), 5 Leads | Tube | Active | 1 | 1/0 | 20000VDC | - | DC | Open Collector | 25 mA | 2Mbps | 100ns, 100ns | - | 1.4V | 30mA | 7V | - | - | -50°C ~ 100°C | Through Hole | - |
|
|
ACSL-6420-00TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
2,183 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 2/2 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6410-00TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
278 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | 4 | 3/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6410-50TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
1,585 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 4 | 3/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
ACSL-6420-50TEOPTOISO 2.5KV 4CH OPEN COLL 16SO |
657 |
|
Таблицы данных |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 4 | 2/2 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
|
HCPL-063N-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,068 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-063N-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,678 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0721OPTOISO 3.75KV PUSH PULL 8SO |
980 |
|
Таблицы данных |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|

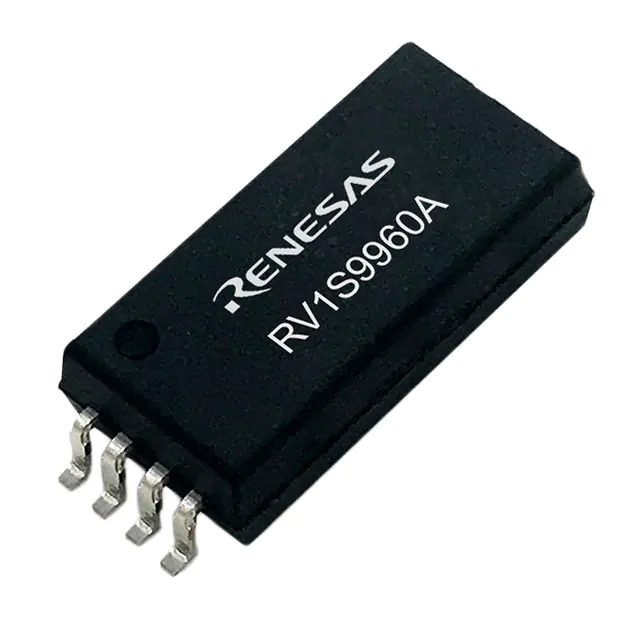

RV1S9960ACCSP-10YV#SC0HI-SPEED OPTOCPLR 8PIN LSDIP |
179 |
|
Таблицы данных |
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Active | 1 | 1/0 | 7500Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|
HCPL-2231OPTOISO 3.75KV 2CH PSH PULL 8DIP |
407 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-2231#300OPTOISO 3.75KV PUSH PULL 8DIP GW |
1,346 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2430-000EOPTOISO 3.75KV 2CH PSH PULL 8DIP |
948 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-2430-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
718 |
|
Таблицы данных |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2430OPTOISO 3.75KV 2CH PSH PULL 8DIP |
614 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
6N134/883BOPTOISO 1.5KV 2CH OPEN COL 16DIP |
196 |
|
Таблицы данных |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.55V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
|
HCPL-5430OPTOISO 1.5KV 2CH PUSH PULL 8DIP |
429 |
|
Таблицы данных |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 500V/µs | DC | Push-Pull, Totem Pole | 25 mA | 40Mbps | 60ns, 60ns | 15ns, 10ns | 1.35V | 10mA | 4.75V ~ 5.25V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
