БОМ
Многожильные кабели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип кабеля | Количество проводников | Сечение провода | Жила проводника | Материал проводника | Материал оболочки (изоляции) | Диаметр оболочки (изоляции) | Тип экрана | Длина | Цвет оболочки | Номинальные значения | Особенности | Напряжение | Рабочая температура | Использование | Толщина оболочки (изоляции) | Изоляция проводника | Размер/измерение |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

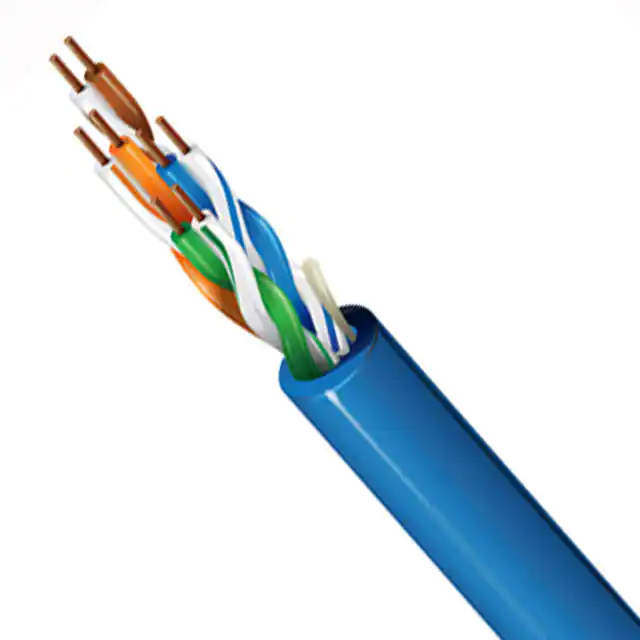

1585A D15U1000CABLE CAT5E 8CON 24AWG BLUE |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.190" (4.83mm) | - | 1000.0' (304.8m) | Blue | UL Style CMP | Rip Cord | 300 V | -20°C ~ 75°C | Network | - | Fluorinated Ethylene-Propylene (FEP), Polyolefin (PO) | - |
|

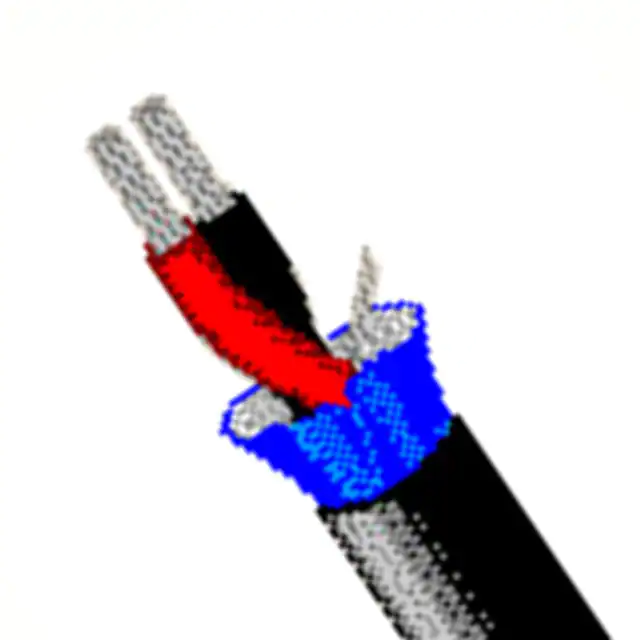

1266A 0101000CABLE 2COND 22AWG BLACK SHLD |
11,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.143" (3.63mm) | Foil | 1000.0' (304.8m) | Black | - | Drain Wire | - | -20°C ~ 60°C | - | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
9451 006U1000CABLE 2CON 22AWG BLUE SHLD |
2,000 |
|
Таблицы данных |
- | Box | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.135" (3.43mm) | Foil | 1000.0' (304.8m) | Blue | UL Style CMR | - | - | -20°C ~ 75°C | - | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
C0452A.41.10CABLE 2COND 20AWG GRAY SHLD |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 7/28 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.207" (5.26mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
C2516A.41.10CABLE 2COND 22AWG GRAY SHLD |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.137" (3.48mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
C0754A.41.10CABLE 7COND 24AWG GRAY SHLD |
7,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 7 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.201" (5.11mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1896L SL001CABLE 3COND 20AWG SLATE |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Low Smoke Zero Halogen (LSZH) | 0.189" (4.80mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 75°C | Communication, Control | 0.0250" (0.635mm) | Low Smoke Zero Halogen (LSZH) | - |
|
C0841A.41.10CABLE 2CON 24AWG GRAY SHLD |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 24 AWG | 7/32 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.235" (5.97mm) | Foil, Braid | 1000.0' (304.8m) | Gray | ASTM B-33 | Low Capacitance | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
1307A 010U500CABLE SPKR 2COND 16AWG BLK |
1,500 |
|
Таблицы данных |
- | Box | Active | Speaker | 2 | 16 AWG | 65/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | - | 500.0' (152.4m) | Black | - | - | - | -20°C ~ 75°C | - | - | Polyolefin (PO) | - |
|
C1702.25.05CABLE SPKR 2COND 14AWG YELLOW |
25,000 |
|
Таблицы данных |
- | Bulk | Active | Speaker | 2 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.220" (5.59mm) | - | 500.0' (152.4m) | Yellow | - | - | 300 V | -20°C ~ 60°C | Audio-Video, Home | 0.0210" (0.533mm) | Polypropylene (PP) | - |
|
C0681A.41.10CABLE 4COND 24AWG GRAY SHLD |
26,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.227" (5.77mm) | Foil, Braid | 1000.0' (304.8m) | Gray | UL Style 2919 | Drain Wire | 30 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Polypropylene (PP) | - |
|
76204WS 008500CABLE 4CON 24AWG CHROME SHLD |
3,000 |
|
Таблицы данных |
MachFlex™ | Spool | Active | Multi-Conductor | 4 | 24 AWG | 10/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.211" (5.36mm) | Foil, Spiral | 500.0' (152.4m) | Chrome | - | Oil Resistant | 300 V | - | - | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
55PC0221-22-9/96CABLE 2COND 22AWG |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 19/0.0063" | Copper, Tinned | - | 0.091" (2.31mm) | - | 2000.0' (609.6m) | - | - | - | 600 V | 150°C | - | - | Ethylene Tetrafluoroethylene (ETFE), Irradiated | - |
|
2464C SL021CABLE 4COND 22AWG SHLD |
3,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 4 (1 Pair + 2) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.165" (4.19mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
C0457A.41.10CABLE 3CON 16AWG GRAY SHLD |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.255" (6.48mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0650A.41.10MULTI-PAIR 4CON 22AWG GRAY |
2,000 |
|
Таблицы данных |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.229" (5.82mm) | Foil, Braid | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

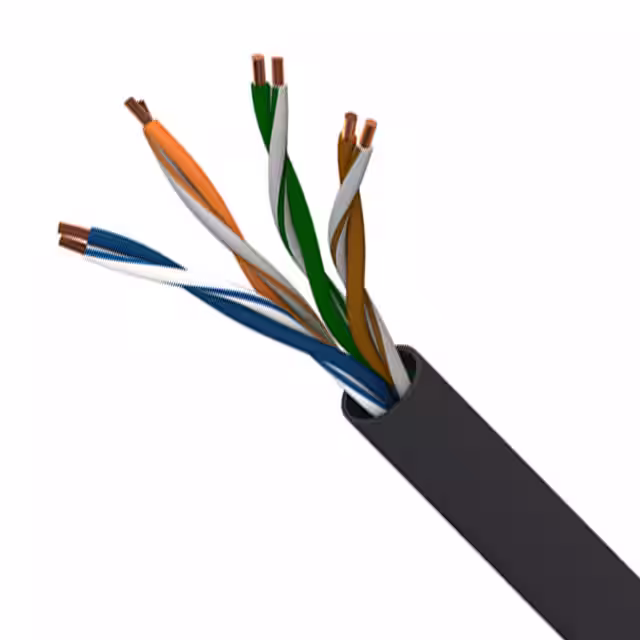

7918A 0101000CABLE CAT5E 8CON 24AWG BLACK |
3,000 |
|
Таблицы данных |
DataTuff® | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair Twisted) | 24 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.230" (5.84mm) | - | 1000.0' (304.8m) | Black | - | Oil Resistant, UV Resistant, Rip Cord | - | -40°C ~ 75°C | Network | - | Polyolefin (PO) | - |
|
89013.35.05CABLE 3COND 16AWG YELLOW |
2,500 |
|
Таблицы данных |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.338" (8.59mm) | - | 250.0' (76.2m) | Yellow | - | Oil Resistant | 300 V | -50°C ~ 105°C | Cord and Cordset | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
M39029 SL002CABLE 8CON 24AWG SLATE SHLD 500' |
500 |
|
Таблицы данных |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.214" (5.44mm) | Foil | 500.0' (152.4m) | Slate | UL Style 2464 | - | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
652602 SL005CABLE 2COND 26AWG SLATE |
1,000 |
|
Таблицы данных |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.202" (5.13mm) | - | 100.0' (30.5m) | Slate | UL Style 2587 | Oil Resistant | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
