Мониторы преобразователей тока/напряжения
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Входной диапазон | Выход | Изоляция | Время отклика | Точность | Напряжение - Питание | Тип крепления | Тип вывода | Рабочая температура | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATR-5A-04TRANSDUCER 3PH 60000A:5A 4"COIL |
33 |
|
Таблицы данных |
ATR | Tape & Box (TB) | Active | AC Current Transducer | 2.5 ~ 60000A | 5A | - | 10ms | 0.01% | 24VDC | Chassis Mount, DIN Rail | Screw Terminal | - | CE, UL |
|
|
ATR-5A-07TRANSDUCER 3PH 60000A:5A 7"COIL |
33 |
|
Таблицы данных |
ATR | Tape & Box (TB) | Active | AC Current Transducer | 2.5 ~ 60000A | 5A | - | 10ms | 0.01% | 24VDC | Chassis Mount, DIN Rail | Screw Terminal | - | CE, UL |
|
|
ATR-5A-11TRANSDUCER 3PH 60000A:5A 11"COIL |
26 |
|
Таблицы данных |
ATR | Tape & Box (TB) | Active | AC Current Transducer | 2.5 ~ 60000A | 5A | - | 10ms | 0.01% | 24VDC | Chassis Mount, DIN Rail | Screw Terminal | - | CE, UL |
|
CR4510-250TRANSDUCER VOLTAGE 24VDC |
21 |
|
Таблицы данных |
CR4500 | Box | Active | True RMS AC Voltage Transducer | 0 ~ 250VAC | 0 ~ 5VDC | 2500VDC | 250ms | 0.5% | 24VDC | DIN Rail | Screw Terminal | 0°C ~ 60°C | CE, cURus |
|
CR4510-500TRANSDUCER VOLTAGE 24VDC |
20 |
|
Таблицы данных |
CR4500 | Box | Active | True RMS AC Voltage Transducer | 0 ~ 500VAC | 0 ~ 5VDC | 2500VDC | 250ms | 0.5% | 24VDC | DIN Rail | Screw Terminal | 0°C ~ 60°C | CE, cURus |
|

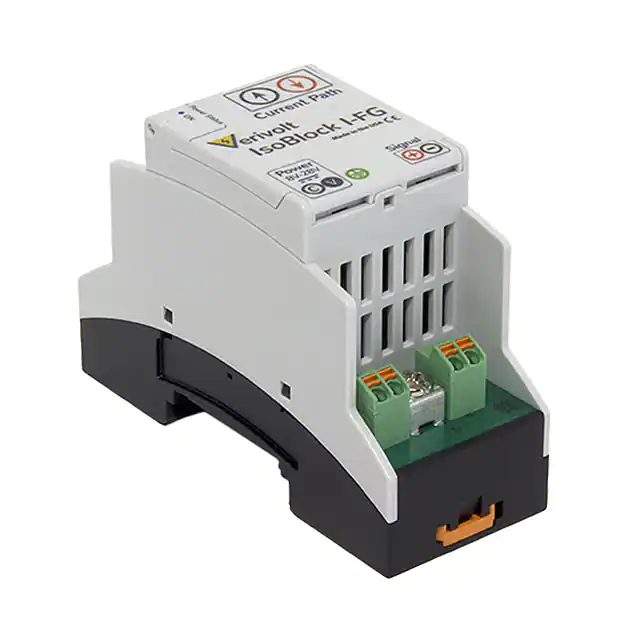

ISOBLOCK I-FG-1C (6A 10V)TRANSDUCER CURRENT 9-28VDC |
25 |
|
Таблицы данных |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 6A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK I-FG-1C (50A 10V)TRANSDUCER CURRENT 9-28VDC |
17 |
|
Таблицы данных |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 50A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Screw Terminal, Spring Terminal | -25°C ~ 70°C | - |
|
2308108TRANSDUCER CURRENT 24VDC |
15 |
|
Таблицы данных |
MCR | Bulk | Active | Current Transducer | 0 ~ 100A | 0 ~ 10VDC | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
|

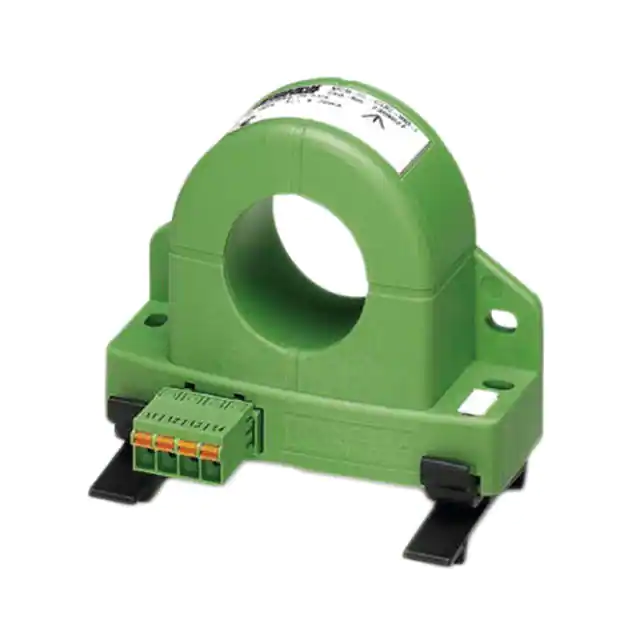

2308027TRANSDUCER CURRENT 24VDC |
18 |
|
Таблицы данных |
MCR | Bulk | Active | Current Transducer | 0 ~ 100A | 4 ~ 20mA | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
|
2308030TRANSDUCER CURRENT 24VDC |
12 |
|
Таблицы данных |
MCR | Bulk | Active | Current Transducer | 0 ~ 200A | 4 ~ 20mA | 300VAC (Working), 3500VAC (Test) | 150ms | - | 24VDC | Chassis Mount, DIN Rail | Spring Terminal | -40°C ~ 65°C | CE, cULus |
|
ISOBLOCK V-1C (50V 10V)TRANSDUCER VOLTAGE 9-28VDC |
25 |
|
Таблицы данных |
IsoBlock V | Box | Active | Voltage Transducer | ±50V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (300V 10V)TRANSDUCER VOLTAGE 9-28VDC |
19 |
|
Таблицы данных |
IsoBlock V | Box | Active | Voltage Transducer | ±300V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (750V 10V)TRANSDUCER VOLTAGE 9-28VDC |
9 |
|
Таблицы данных |
IsoBlock V | Box | Active | Voltage Transducer | ±750V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (100V 10V)TRANSDUCER VOLTAGE 9-28VDC |
9 |
|
Таблицы данных |
IsoBlock V | Box | Active | Voltage Transducer | ±100V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK V-1C (500V 10V)TRANSDUCER VOLTAGE 8-28VDC |
2 |
|
Таблицы данных |
IsoBlock V | Box | Active | Voltage Transducer | ±500V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 8 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|

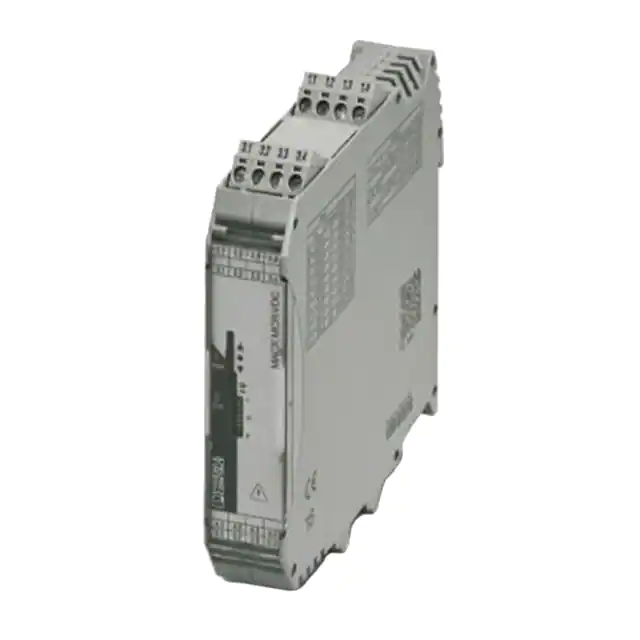

2906242TRANSDUCER VOLTAGE 24VDC |
3 |
|
Таблицы данных |
MACX | Bulk | Active | Voltage Transducer | ±660VDC | ±10V | 5300VAC (Test) | 16ms | - | 24VDC | DIN Rail | Screw Terminal | -25°C ~ 60°C | CE, cULus |
|

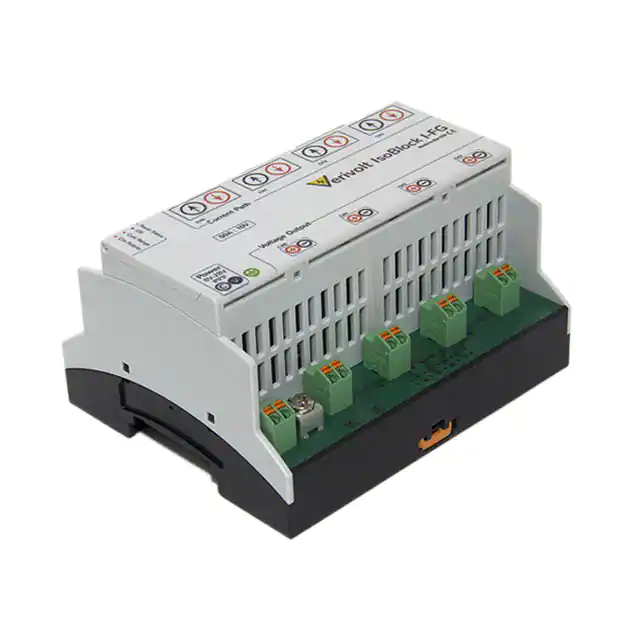

ISOBLOCK I-FG-4C (6A 10V)TRANSDUCER CURRENT 9-28VDC |
22 |
|
Таблицы данных |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 6A | ±10V | 1200V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK I-FG-4C (25A 10V)TRANSDUCER CURRENT 9-28VDC |
8 |
|
Таблицы данных |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 25A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|
|
ISOBLOCK I-FG-4C (15A 10V)TRANSDUCER CURRENT 9-28VDC |
5 |
|
Таблицы данных |
IsoBlock I-FG | Box | Active | Current Transducer | 0 ~ 15A | ±10V | 1200V (Working) | 5µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
|

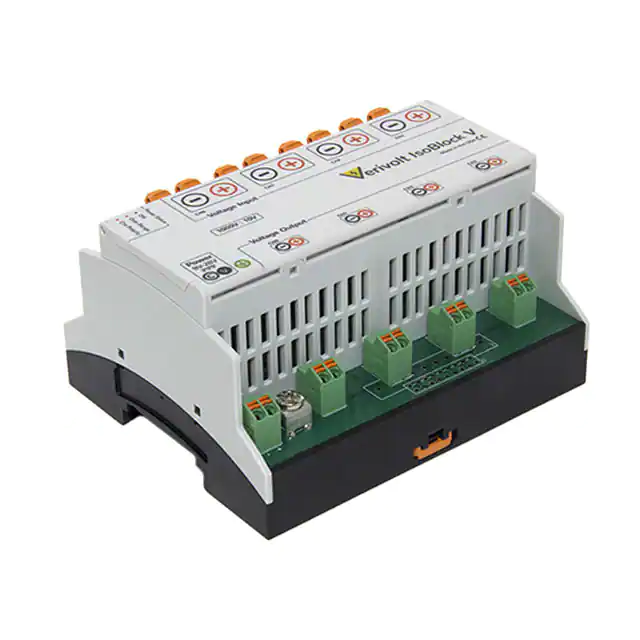

ISOBLOCK V-4C (1000V 10V)TRANSDUCER VOLTAGE 9-28VDC |
14 |
|
Таблицы данных |
IsoBlock V | Box | Active | Voltage Transducer | ±1000V | ±10V | 1500V (Working) | 2.8µs | ±0.2% | 9 ~ 28VDC | DIN Rail | Spring Terminal | -25°C ~ 70°C | - |
