Линейный, компас (ИС)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Ось | Тип выхода | Диапазон чувствительности | Напряжение - Питание | Ток - Питание (макс.) | Ток - выход (макс.) | Разрешение | Пропускная способность | Рабочая температура | Марка | Квалификация | Особенности | Устройство поставщика Упаковка | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS495A1-T3SENSOR HALL ANALOG RADIAL LEAD |
0 |
|
Таблицы данных |
SS490 | TO-226-3, TO-92-3 Short Body, Formed Leads | Tape & Box (TB) | Discontinued at Digi-Key | Hall Effect | Single | Analog Voltage | ±67mT | 4.5V ~ 10.5V | 8.7mA | 10mA | - | - | -40°C ~ 150°C | - | - | Temperature Compensated | Radial Lead | Through Hole |
|
TLE4926CHTE6547HAMA1SENSOR HALL EFFECT SSO-3 |
0 |
|
Таблицы данных |
- | - | Tape & Box (TB) | Not For New Designs | Hall Effect | - | - | - | 4.5V ~ 5.5V | - | - | - | - | -40°C ~ 150°C | Automotive | AEC-Q100 | Programmable | - | - |
|
MLX90395KGO-BBA-101-RESENSR MAGNETOMETER 3DXYZ 16TSSOP |
0 |
|
Таблицы данных |
Triaxis® | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | SPI | - | - | - | - | - | - | - | - | - | - | 16-TSSOP | Surface Mount |
|
|
MLX90395KGO-BBA-001-RESENSR MAGNETOMETER 3DXYZ 16TSSOP |
0 |
|
Таблицы данных |
Triaxis® | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | SPI | - | - | - | - | - | - | - | - | - | - | 16-TSSOP | Surface Mount |
|
SS496A1-T3SENSOR HALL ANALOG RADIAL LEAD |
0 |
|
Таблицы данных |
SS490 | 3-SIP | Tape & Box (TB) | Obsolete | Hall Effect | Single | Analog Voltage | ±84mT | 4.5V ~ 10.5V | 8.7mA | 10mA | - | - | -40°C ~ 150°C | - | - | Temperature Compensated | Radial Lead | Through Hole |
|
HMC5843-TRSENSOR MR I2C 20LCC |
0 |
|
Таблицы данных |
- | 20-LCC | Tape & Reel (TR) | Obsolete | Magnetoresistive | X, Y, Z | I2C | ±0.6mT | 2.5V ~ 3.3V | 80µA | - | - | - | -30°C ~ 85°C | - | - | Sleep Mode | 20-LCC | Surface Mount |
|
TLE4998P3CE1200HAMA1SENSOR HALL PWM SSO3-10 |
0 |
|
Таблицы данных |
- | 3-SSIP, SSO-3-10 | Tape & Box (TB) | Obsolete | Hall Effect | Single | PWM | ±50mT, ±100mT, ±200mT | 4.5V ~ 5.5V | 8mA | 5mA | 12 b | Programmable | -40°C ~ 125°C (TJ) | - | - | Selectable Scale, Temperature Compensated | PG-SSO-3-10 | Through Hole |
|
|
MLX90292LGO-CAE-000-RESENSOR HALL OPEN DRAIN 16TSSOP |
0 |
|
Таблицы данных |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Hall Effect | Single | Open Drain | ±30mT ~ ±170mT | 4.6V ~ 8.7V | 6.5mA | - | 12 b | - | -40°C ~ 150°C | - | - | Programmable | 16-TSSOP | Surface Mount |
|
SS495B-SSOLID STATE SENSOR |
0 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MLX90333EDC-BCT-000-RESENSOR HALL ANALOG/PWM 8SOIC |
0 |
|
Таблицы данных |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | Analog, PWM | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | 30mA | 12 b | - | -40°C ~ 85°C | - | - | Programmable | 8-SOIC | Surface Mount |
|
|
MLX90333EDC-BCH-000-RESENSOR HALL ANALOG/PWM 8SOIC |
0 |
|
Таблицы данных |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | Analog, PWM | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | 30mA | 12 b | - | -40°C ~ 85°C | - | - | Programmable | 8-SOIC | Surface Mount |
|
|
MLX90333EDC-BCH-100-RESENSOR HALL EFFECT SPI 8SOIC |
0 |
|
Таблицы данных |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | SPI | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | 30mA | 12 b | - | -40°C ~ 85°C | - | - | Programmable | 8-SOIC | Surface Mount |
|

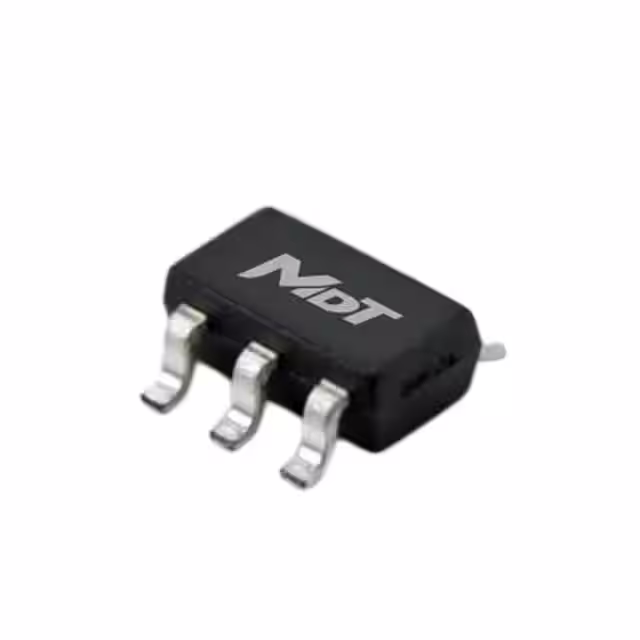

TMR2001STMR SENSOR MAG FIELD 8MV/V/OE |
0 |
|
Таблицы данных |
- | SC-74A, SOT-753 | Bulk | Obsolete | Magnetoresistive | - | Wheatstone Bridge | - | 7V | - | 16µA | - | - | -40°C ~ 125°C | - | - | - | SOT-23-5L | Surface Mount |
|
|
MLX90333KDC-BCH-100-RESENSOR HALL EFFECT SPI 8SOIC |
0 |
|
Таблицы данных |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | SPI | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | 30mA | 12 b | - | -40°C ~ 125°C | - | - | Programmable | 8-SOIC | Surface Mount |
|
|
MLX90333KDC-BCH-000-RESENSOR HALL ANALOG/PWM 8SOIC |
0 |
|
Таблицы данных |
Triaxis® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | Analog, PWM | 20mT ~ 70mT (X,Y), 24mT ~ 140mT (Z) | 4.5V ~ 5.5V | 16mA | 30mA | 12 b | - | -40°C ~ 125°C | - | - | Programmable | 8-SOIC | Surface Mount |
|
MLX90366LVS-ADU-251-RXSENSOR HALL EFFECT SENT |
0 |
|
Таблицы данных |
Triaxis® | 4-SIP Module | Tape & Reel (TR) | Not For New Designs | Hall Effect | X, Y, Z | SENT | 70mT (X,Y), 126mT (Z) | 4.5V ~ 5.5V | 10mA | 30mA | 12 b | - | -40°C ~ 150°C | - | - | Programmable | 4-DMP | Through Hole |
|
|
MLX90292LGO-CAE-000-TUSENSOR HALL EFFECT PWM 16TSSOP |
0 |
|
Таблицы данных |
- | 16-TSSOP (0.173", 4.40mm Width) | Tube | Discontinued at Digi-Key | Hall Effect | Single | PWM | ±30mT ~ ±170mT | 4.6V ~ 8.7V | 6.5mA | - | 12 b | - | -40°C ~ 150°C | - | - | Programmable | 16-TSSOP | Surface Mount |
|
SS495B-T3SENSOR HALL ANALOG RADIAL LEAD |
0 |
|
Таблицы данных |
SS490 | 3-SIP | Tape & Reel (TR) | Active | Hall Effect | Single | Analog Voltage | ±67mT | 4.5V ~ 10.5V | 8.7mA | 10mA | - | - | -40°C ~ 150°C | - | - | Temperature Compensated | Radial Lead | Through Hole |
|
SS496B-SSENSOR HALL EFFECT ANALOG SMD |
0 |
|
Таблицы данных |
SS490 | 3-SMD, Gull Wing | Bulk | Active | Hall Effect | Single | Analog Voltage | ±84mT | 4.5V ~ 10.5V | 8.7mA | 10mA | - | - | -40°C ~ 150°C | - | - | Temperature Compensated | SMD | Surface Mount |
|
MLX90251EVA-FAA-200-SPSENSOR HALL EFFECT ANALOG 4SIP |
0 |
|
Таблицы данных |
- | 4-SSIP Module | Bulk | Active | Hall Effect | Single | Analog Voltage | - | 4.5V ~ 5.5V | 9mA | 1.25mA | - | - | -40°C ~ 85°C | - | - | Programmable, Temperature Compensated | 4-SIP | Through Hole |
