Линейный, компас (ИС)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Технология | Ось | Тип выхода | Диапазон чувствительности | Напряжение - Питание | Ток - Питание (макс.) | Ток - выход (макс.) | Разрешение | Пропускная способность | Рабочая температура | Марка | Квалификация | Особенности | Устройство поставщика Упаковка | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HAL880 DJ-KSENSOR HALL EFFECT ANALOG 8SOIC |
0 |
|
Таблицы данных |
HAL® 880 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Hall Effect | Single | Analog Voltage | - | 4.5V ~ 5.5V | 10mA | 1.2mA | 12 b | 1kHz | -40°C ~ 140°C (TJ) | - | - | Programmable, Temperature Compensated | - | Surface Mount |
|
HG302ASENSOR HALL EFFECT ANALOG 4SIP |
0 |
|
- |
- | 4-SIP Module | Tape & Reel (TR) | Active | Hall Effect | Single | Analog Voltage | - | 8V | - | - | - | - | -40°C ~ 125°C | - | - | - | 4-SIP | Through Hole |
|
TLE5046ICPWMER050HALA1SENSOR HALL EFFECT PWM SSO-2 |
0 |
|
- |
- | 2-SIP, SSO-2-1 | Tape & Box (TB) | Obsolete | Magnetoresistive | X, Y, Z | PWM | 250mT (X,Y), 500mT (Z) | 4.25V ~ 20V | 16.1mA | - | - | - | -40°C ~ 190°C (TJ) | Automotive | AEC-Q100 | Selectable Scale, Temperature Compensated | PG-SSO-2-1 | Through Hole |
|
|
TLE5046ICPWMER100HALA1SENSOR HALL EFFECT PWM SSO-2 |
0 |
|
- |
- | 2-SIP, SSO-2-1 | Tape & Box (TB) | Obsolete | Magnetoresistive | X, Y, Z | PWM | 250mT (X,Y), 500mT (Z) | 5.2V ~ 20V | 16.1mA | - | - | - | -40°C ~ 190°C (TJ) | Automotive | AEC-Q100 | Selectable Scale, Temperature Compensated | PG-SSO-2-1 | Through Hole |
|
|
HAL3675DJ-ASENSOR HALL EFFECT PWM 8SOIC |
0 |
|
Таблицы данных |
HAL® 3625 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Hall Effect | X, Y | PWM | - | 4.5V ~ 5.5V | 15mA | 1.2mA | 12 b | 0.25kHz ~ 2kHz | -40°C ~ 170°C | - | - | Programmable | - | Surface Mount |
|
|
MLX90393SLW-ABA-013-SPSENSOR HALL I2C/SPI 16QFN |
0 |
|
Таблицы данных |
Triaxis® | 16-VFQFN Exposed Pad | Bulk | Not For New Designs | Hall Effect | X, Y, Z | I2C, SPI | - | 2.2V ~ 3.6V | - | - | - | - | -20°C ~ 85°C | Automotive | AEC-Q100 | - | 16-QFN (3x3) | Surface Mount |
|
ALS31300EEJALU-500SENSOR HALL EFFECT I2C 10DFN |
0 |
|
Таблицы данных |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | I2C | - | 2.65V ~ 3.5V | 6.7mA | - | 12 b | - | -40°C ~ 85°C | - | - | - | 10-DFN (3x3) | Surface Mount |
|
|
ALS31300EEJALU-1000SENSOR HALL EFFECT I2C 10DFN |
0 |
|
Таблицы данных |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | I2C | - | 2.65V ~ 3.5V | 6.7mA | - | 12 b | - | -40°C ~ 85°C | - | - | - | 10-DFN (3x3) | Surface Mount |
|
|
ALS31300EEJALU-2000SENSOR HALL EFFECT I2C 10DFN |
0 |
|
Таблицы данных |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | I2C | - | 2.65V ~ 3.5V | 6.7mA | - | 12 b | - | -40°C ~ 85°C | - | - | - | 10-DFN (3x3) | Surface Mount |
|
|
ALS31300EEJALU-JOYSENSOR HALL EFFECT I2C 10DFN |
0 |
|
Таблицы данных |
- | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | I2C | - | 2.65V ~ 3.5V | 6.7mA | - | 12 b | - | -40°C ~ 85°C | - | - | - | 10-DFN (3x3) | Surface Mount |
|
|
HAL817 UT-KSENSOR HALL ANALOG TO92-UT |
0 |
|
Таблицы данных |
HAL® 817 | - | Bulk | Obsolete | Hall Effect | Single | Analog Voltage | ±0.5mT | 4.5V ~ 5.5V | 10mA | 1.2mA | 12 b | 2kHz | -40°C ~ 140°C (TJ) | - | - | Programmable, Temperature Compensated | - | - |
|
|
HAL817UT-ASENSOR HALL ANALOG TO92-UT |
0 |
|
- |
HAL® 817 | - | Bulk | Obsolete | Hall Effect | Single | Analog Voltage | ±0.5mT | 4.5V ~ 5.5V | 10mA | 1.2mA | 12 b | 2kHz | -40°C ~ 170°C (TJ) | - | - | Programmable, Temperature Compensated | - | - |
|

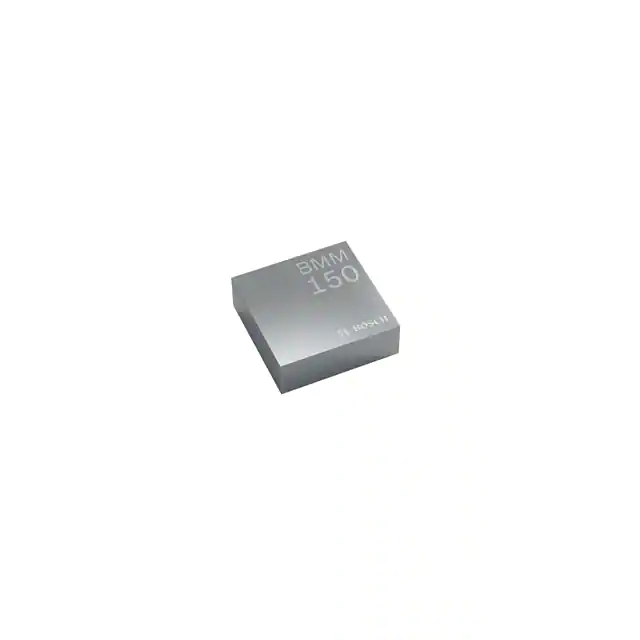

BMM150SENSOR FLIPCORE/HALL SPI 12WLCSP |
0 |
|
Таблицы данных |
- | 12-UFBGA, WLCSP | Tape & Reel (TR) | Obsolete | FlipCore, Hall Effect | X, Y, Z | I2C, SPI | ±1.3mT (X,Y), ±2.5mT (Z) | 1.62V ~ 3.6V | 20mA | - | 13 b | 10Hz | -40°C ~ 85°C | - | - | - | 12-WLCSP (1.56x1.56) | Surface Mount |
|
|
HAL825UT-ASENSOR HALL ANALOG TO92-UT |
0 |
|
Таблицы данных |
HAL® 82x | - | Bulk | Obsolete | Hall Effect | Single | Analog Voltage | ±0.5mT | 4.5V ~ 5.5V | 10mA | 1mA | 12 b | 1kHz | -40°C ~ 170°C (TJ) | - | - | Programmable, Temperature Compensated | - | - |
|
|
HAL825UT-KSENSOR HALL ANALOG TO92-UT |
0 |
|
Таблицы данных |
HAL® 82x | - | Bulk | Obsolete | Hall Effect | Single | Analog Voltage | ±0.5mT | 4.5V ~ 5.5V | 10mA | 1mA | 12 b | 1kHz | -40°C ~ 140°C (TJ) | - | - | Programmable, Temperature Compensated | - | - |
|
|
AK09919CSENSOR HALL I2C/SPI 14WLCSP |
0 |
|
Таблицы данных |
- | 4-UFBGA, WLCSP | Tape & Reel (TR) | Active | Hall Effect | X, Y, Z | I2C, I3C | ±4.9mT | 1.65V ~ 1.95V | 1.1mA (Typ) | - | 16 b | - | -30°C ~ 85°C | - | - | - | 4-WLCSP (0.76x0.76) | Surface Mount |
|
ZMY20TASENSOR MR ANALOG SOT223 |
0 |
|
Таблицы данных |
- | TO-261-4, TO-261AA | Tape & Reel (TR) | Obsolete | Magnetoresistive | X, Y | Analog Voltage | - | 12V | - | - | - | - | -40°C ~ 150°C | - | - | Internal Magnet | SOT-223-3 | Surface Mount |
|
|
MLX90290LUA-AAA-620-SPHI-SPEED PROGRAMMABLE LINEAR HAL |
0 |
|
Таблицы данных |
- | TO-226-3, TO-92-3 Short Body | Bulk | Active | Hall Effect | Single | Analog Voltage | - | 4.5V ~ 5.5V | 8mA | 20mA | - | 50kHz | -40°C ~ 150°C | - | - | - | TO-92-3 | Through Hole |
|
|
HAL3625DJ-ASENSOR HALL EFFECT ANALOG 8SOIC |
0 |
|
Таблицы данных |
HAL® 3625 | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Hall Effect | X, Y | Analog Voltage | - | 4.5V ~ 5.5V | 15mA | 1.2mA | 12 b | 0.25kHz ~ 2kHz | -40°C ~ 170°C | - | - | Programmable | - | Surface Mount |
|
|
MLX90393SLQ-ABA-011-SPIC MAGNOMETER SPI/I2C 8UTDFN |
0 |
|
Таблицы данных |
Triaxis® | 8-XFDFN Exposed Pad | Tube | Active | Hall Effect | X, Y, Z | I2C, SPI | 5mT ~ 50mT | 2.2V ~ 3.6V | 4mA | - | 16 b | - | -20°C ~ 85°C | Automotive | AEC-Q100 | Programmable, Temperature Compensated | 8-UTDFN (2.5x2) | Surface Mount |
