БОМ
Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMED120-12SNZAC/DC DIN RAIL SUPPLY 2X12V 120W |
4 |
|
Таблицы данных |
AMED120-NZ | Box | Active | AC or DC | 1 | 90 ~ 264 VAC | 90V | 264V | 12V | - | - | - | - | - | 10A | 120W | 4 kV | Household Appliances, ITE (Commercial) | 85% | -20°C ~ 60°C | Universal Input | - | 60335-1; 62368-1 |
|
MDR-10-12AC/DC CONVERTER 12V 10W |
10 |
|
Таблицы данных |
MDR-10 (10W) | Retail Package | Active | - | 1 | - | - | - | 12V | - | - | - | - | - | - | 10W | 3 kV | Industrial, ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | CB, CE, cULus, EAC, TUV, UKCA | 60950-1; 62368-1; UL 508 |
|
VTX-211-120-448AC/DC DIN RAIL SUPPLY 48V 120W |
10 |
|
Таблицы данных |
VTX-211 | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 48V | - | - | - | - | - | 2.5A | 120W | 3 kV | ITE (Commercial) | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, UKCA | 62368-1 |
|
|
2467070000POWER SUPPLY 120 W |
5 |
|
Таблицы данных |
PRO TOP3 (120W) | Bulk | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (2 Phase) | 450V | 800V | 24V | - | - | - | - | - | 5A | 120W | 3.5 kV | ITE (Commercial) | 89% | -40°C ~ 70°C | Adjustable Output, Universal Input | cULus, TUV | 60950-1 |
|
AMED150-12SNZAC/DC CNVRTR 10.8V 13.8V 135.6W |
2 |
|
Таблицы данных |
AMED150-NZ (135W) | Case | Active | - | 2 | - | - | - | 10.8V | 13.8V | - | - | - | - | - | 135.6W | - | Industrial | 89% | -30°C ~ 70°C | - | - | - |
|
|
29029918UNO power supply for DIN rail |
5 |
|
Таблицы данных |
- | Retail Package | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.6A | 62W | 4 kV | Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | CB, cUL, cULus, EAC, UL | 60950-1; UL 508 |
|
RISH FLEX 24024AAC/DC DIN RAIL SUPPLY 24V 240W |
5 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 90 ~ 135 VAC, 170 ~ 280 VAC | - | - | 24V | - | - | - | - | - | 10A | - | 3 kV | ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output | CE | 60950-1 |
|

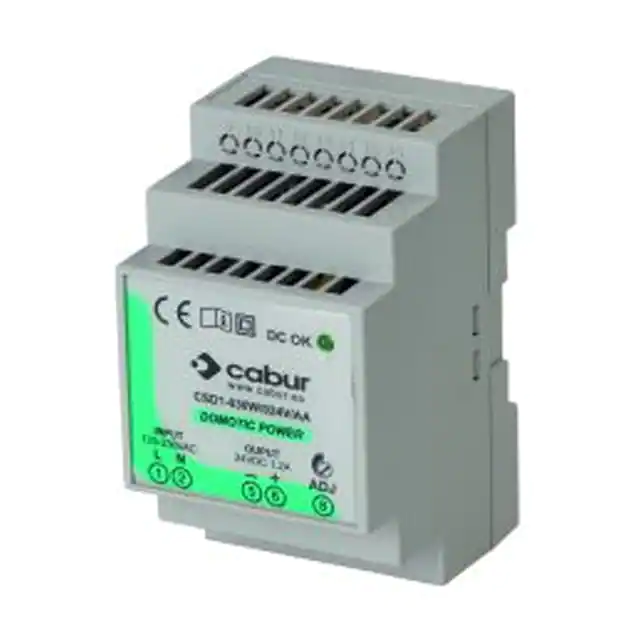

XCSD1030W024VAAAC/DC DIN RAIL SUPPLY 24V 30W |
2 |
|
Таблицы данных |
- | Box | Discontinued at Digi-Key | AC or DC | 1 | 120 ~ 230 VAC | 100V | 370V | 24V | - | - | - | - | - | 1.25A | 30W | - | Industrial | 87% | - | - | CB, CE | - |
|
RISH FLEX 28012AAC/DC DIN RAIL SUPPLY 12V |
5 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 90 ~ 135 VAC, 180 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 16A | - | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE | 60950-1; UL 508 |
|
RISH FLEX 28024AAC/DC DIN RAIL SUPPLY 24V |
5 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 90 ~ 135 VAC, 170 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 14A | - | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE | 60950-1; UL 508 |
|
RISH FLEX 28048AAC/DC DIN RAIL SUPPLY 48V |
5 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 90 ~ 135 VAC, 180 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 7A | - | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE | 60950-1; UL 508 |
|
|
28685388STEP power supply for DIN rail |
5 |
|
Таблицы данных |
- | Retail Package | Active | AC or DC | 1 | 85 ~ 305 VAC | 95V | 250V | 12V | - | - | - | - | - | 1A | 12W | 4 kV | Industrial, ITE (Commercial) | 83% | -25°C ~ 70°C (With Derating) | IP20 | CB, cUL, cULus, EAC, UL | 60950-1; UL 508 |
|
|
28686358STEP-PS/1AC/24DC/0.75 Power Supp |
3 |
|
Таблицы данных |
- | Retail Package | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 250V | 24V | - | - | - | - | - | 1.4A | - | 4 kV | ITE (Commercial), Medical | 84% | -25°C ~ 70°C (With Derating) | Universal Input | - | 60601-1; 60950-1 |
|
RISH FLEX 28024BAC/DC DIN RAIL SUPPLY 24V |
5 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 187 ~ 264 VAC, 330 ~ 550 VAC | - | - | 24V | - | - | - | - | - | 14A | - | 3 kV | Industrial, ITE (Commercial) | 91% | -25°C ~ 70°C (With Derating) | Adjustable Output | CE | 60950-1; UL 508 |
|
|
400583-14-2AC/DC CONVERTER 24V 100W |
6 |
|
Таблицы данных |
XS125 (125W) | Bulk | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 100W (125W Forced Air) | 4 kV | ITE (Commercial) | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable, Standby Output, Universal Input | CB, CE, cURus, FCC | 62368-1 |
|
|
29031478TRIO power supply , input: 1-pha |
3 |
|
Таблицы данных |
- | Retail Package | Active | - | 1 | - | - | - | 24V | - | - | - | - | - | - | 72W | 3 kV | Industrial, ITE (Commercial) | 89% | -40°C ~ 85°C (With Derating) | IP20 | CB, cUL, cULus, DNV GL, EAC, UL | 60950-1; UL 508 |
|
RISH FLEX 50048AAC/DC DIN RAIL SUPPLY 48V |
5 |
|
Таблицы данных |
- | Bulk | Active | AC | 1 | 90 ~ 135 VAC, 180 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 12A | - | 3 kV | Industrial, ITE (Commercial) | 92% | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE | 60950-1; UL 508 |
|
|
SPB-A120-24DIN Rail type SMPS |
2 |
|
Таблицы данных |
* | Retail Package | Active | AC or DC | 1 | 100 ~ 240 VAC | 90V | 350V | 24V | - | - | - | - | - | 5A | 120W | 3 kV | Industrial | 86% | -20°C ~ 70°C | Adjustable Output, IP20, PFC | CE, UKCA, UL | - |
|
ARP-2411-00AC/DC DIN RAIL SUPPLY 24V 240W |
7 |
|
Таблицы данных |
- | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 1.5 kV | ITE (Commercial) | 90% | -40°C ~ 70°C (With Derating) | PFC, Universal Input | CB, CE | 62368-1 |
|
|
29029948UNO power supply for DIN rail |
5 |
|
Таблицы данных |
- | Retail Package | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 4 kV | Industrial, ITE (Commercial) | 88% | -25°C ~ 70°C (With Derating) | IP20, Universal Input | CB, cUL, cULus, EAC, UL | 60950-1; UL 508 |
