Промышленные блоки питания на DIN-рейку
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип входа | Количество выходов | Напряжение переменного тока - Вход | Напряжение постоянного тока - Вход (мин.) | Напряжение постоянного тока - Вход (макс.) | Напряжение - выход 1 | Напряжение - Выход 2 | Напряжение - Выход 3 | Напряжение - Выход 4 | Напряжение - Выход 5 | Напряжение - Выход 6 | Ток - выход (макс.) | Мощность (Вт) | Напряжение - Изоляция | Применение | Эффективность | Рабочая температура | Особенности | Сертифицирующее агентство | Стандартный номер |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S8FS-G05024CDAC/DC DIN RAIL SUPPLY 24V 50W |
3 |
|
Таблицы данных |
S8FS-G (50W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 2.2A | 50W | 3 kV | ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, TUV, UL | - |
|
S8FS-G05015CDAC/DC DIN RAIL SUPPLY 15V 53W |
2 |
|
Таблицы данных |
S8FS-G (50W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 370V | 15V | - | - | - | - | - | 3.5A | 53W | 3 kV | Industrial, ITE (Commercial) | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, TUV, UL | - |
|
TBLC 75-124AC/DC DIN RAIL SUPPLY 24V 74W |
16 |
|
Таблицы данных |
TBLC (75W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.1A | 74W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|
KLEA240F-48AC/DC DIN RAIL SUPPLY 48V 240W |
4 |
|
Таблицы данных |
KLEA (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | - | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CE, cULus, cURus | - |
|
KLNA240F-24AC/DC DIN RAIL SUPPLY 24V 240W |
2 |
|
Таблицы данных |
KLNA (240W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 10A | 240W | 3 kV | ITE (Commercial) | 90% | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | FCC | 60950-1 |
|
TCL 024-105AC/DC DIN RAIL SUPPLY 5V 20W |
8 |
|
Таблицы данных |
TCL (24W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 85V | 375V | 5V | - | - | - | - | - | 4A | 20W | 3 kV | Industrial, ITE (Commercial) | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, IP20 | CB, CE, cCSAus, cULus, cURus | - |
|
2580230000AC/DC DIN RAIL SUPPLY 24V 60W |
2 |
|
Таблицы данных |
Connect Power INSTA (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cCSAus, TUV | - |
|
PSC-12012AC/DC DIN RAIL SUPPLY 12V 120W |
11 |
|
Таблицы данных |
PSC-120 (120W) | Box | Active | AC or DC | 1 | 88 ~ 264 VAC | 124V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3 kV | Industrial, ITE (Commercial) | 89% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | CB, CE, cULus, cURus | 60950-1; UL 508 |
|
|
2838450000AC/DC DIN RAIL SUPPLY 12V 120W |
11 |
|
Таблицы данных |
PRO BAS (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3.5 kV | Laboratory | 90% | -25°C ~ 70°C | PFC, Universal Input | - | 61010-1 |
|
TBLC 90-124AC/DC DIN RAIL SUPPLY 24V 90W |
24 |
|
Таблицы данных |
TBLC (90W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 24V | - | - | - | - | - | 3.75A | 90W | 3 kV | Household Appliances, Industrial, ITE (Commercial) | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cULus, cURus, SIQ | - |
|

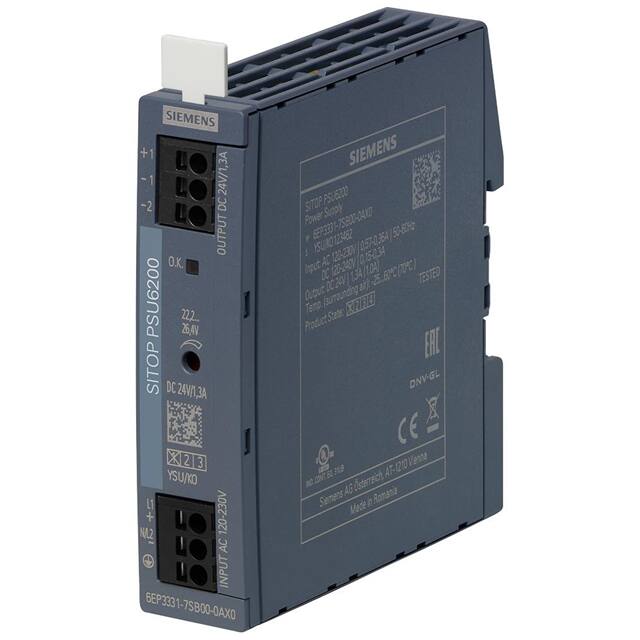

6EP33317SB000AX0AC/DC DIN RAIL SUPPLY 24V 31W |
7 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 120 ~ 240 VAC, 85 ~ 264 VAC | 110V | 275V | 24V | - | - | - | - | - | 1.3A | 31W | - | Hazardous Locations, Industrial, ITE (Commercial) | 86.3% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
TPC 080-112AC/DC DIN RAIL SUPPLY 12V 72W |
20 |
|
Таблицы данных |
TPC (80W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 90V | 375V | 12V | - | - | - | - | - | 6A | 72W | - | Industrial, ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, cCSAus, SIQ | - |
|
ECE60US12-SDAC/DC DIN RAIL SUPPLY 12V 60W |
13 |
|
Таблицы данных |
ECE60 (60W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 5A | 60W | 3 kV | ITE (Commercial) | 87% | -40°C ~ 70°C (With Derating) | Universal Input | CB, TUV, UL | 62368-1 |
|
|
ECE60US05-SDAC/DC DIN RAIL SUPPLY 5V 50W |
4 |
|
Таблицы данных |
ECE60 (60W) | Tray | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 10A | 50W | 3 kV | ITE (Commercial) | 83% | -40°C ~ 70°C (With Derating) | Universal Input | CB, TUV, UL | 62368-1 |
|
6EP33216SB100AY0AC/DC DIN RAIL SUPPLY 15V 29W |
9 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | 110V | 300V | 15V | - | - | - | - | - | 1.9A | 29W | - | Hazardous Locations, Industrial, ITE (Commercial) | 83% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
6EP33106SB000AY0AC/DC DIN RAIL SUPPLY 5V 15W |
6 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | 110V | 300V | 5V | - | - | - | - | - | 3A | 15W | - | Hazardous Locations, Industrial, ITE (Commercial) | 76% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, CE, CSA, cUL, cULus, cURus, UL | 60950-1; UL 508 |
|

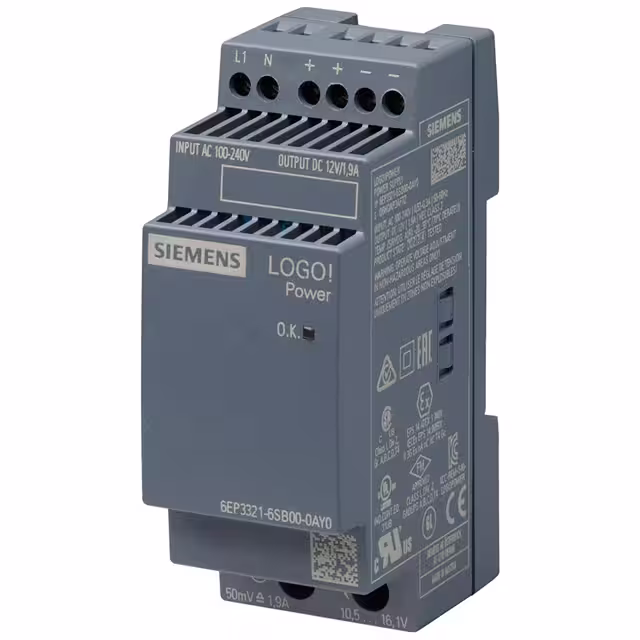

6EP33216SB000AY0AC/DC DIN RAIL SUPPLY 12V 23W |
5 |
|
Таблицы данных |
6EP3 | Bulk | Active | AC or DC | 1 | 100 ~ 240 VAC, 85 ~ 264 VAC | 110V | 300V | 12V | - | - | - | - | - | 1.9A | 23W | - | Hazardous Locations, Industrial, ITE (Commercial) | 81% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CB, cCSAus, CE, CSA, cUL, cULus, UL | 60950-1; UL 508 |
|
SPMA24301AC/DC DIN RAIL SUPPLY 24V 36W |
6 |
|
Таблицы данных |
SPMA | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 350V | 24V | - | - | - | - | - | 1.5A | 36W | 4 kV | Industrial, ITE (Commercial) | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | CE | 62368-1; UL 508 |
|
787-1002AC/DC DIN RAIL SUPPLY 24V 31W |
8 |
|
Таблицы данных |
- | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 120V | 373V | 24V | - | - | - | - | - | 1.3A | 31W | 4.242 kV | Industrial, ITE (Commercial) | 82% | -25°C ~ 60°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | cURus, UL | 60950-1; UL 508 |
|
S8FS-G10005CDAC/DC DIN RAIL SUPPLY 5V 80W |
13 |
|
Таблицы данных |
S8FS-G (100W) | Box | Active | AC | 1 | 85 ~ 264 VAC | - | - | 5V | - | - | - | - | - | 16A | 80W | 3 kV | ITE (Commercial) | 81% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | CE, cURus, TUV, UL | - |
