Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B10-03BRELAY RF SPST-NO 250MA 3.3V Coto Technology |
0 |
|
Таблицы данных |
B10 | Tape & Reel (TR) | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|
2920-05-121RELAY RF SPST-NO 1A 5V Coto Technology |
0 |
|
Таблицы данных |
2900 | Tube | Not For New Designs | Non Latching | 66.7 mA | 5VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 3.8 VDC | 0.4 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
2920-12-121RELAY RF SPST-NO 1A 12V Coto Technology |
0 |
|
Таблицы данных |
2900 | Tube | Not For New Designs | Non Latching | 48 mA | 12VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 9 VDC | 1 VDC | 1.5 ms | 1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
B41-0002RELAY RF SPST-NO X 4 250MA 3.3V Coto Technology |
0 |
|
Таблицы данных |
B41 | Tape & Reel (TR) | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|

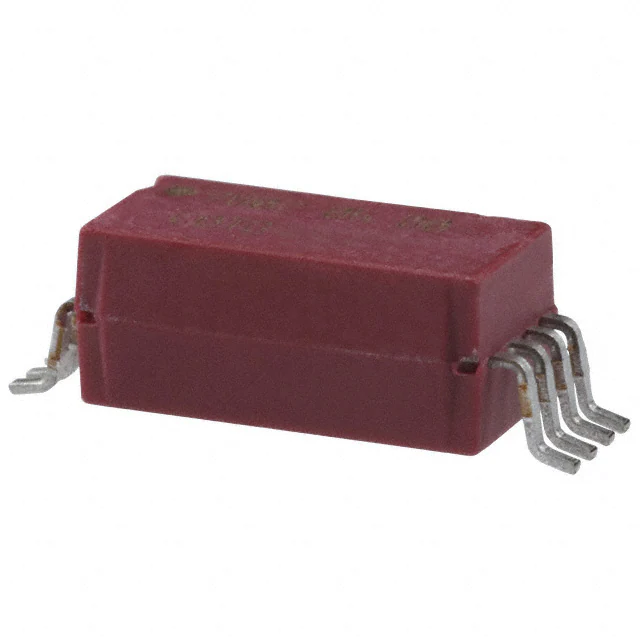

9802-05-00RELAY RF SPST-NO 250MA 5V Coto Technology |
0 |
|
Таблицы данных |
9800 | Bulk | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

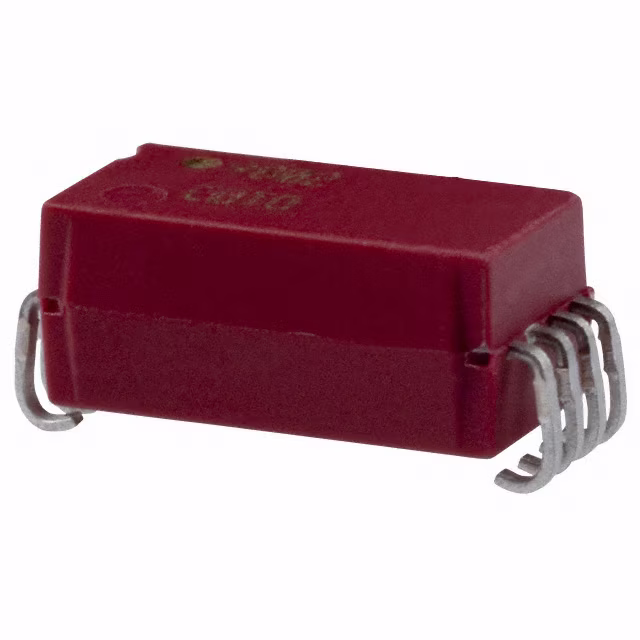

9802-05-20RELAY RF SPST-NO 250MA 5V Coto Technology |
0 |
|
Таблицы данных |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
9290-12-00RELAY RF SPST-NO 500MA 12V Coto Technology |
0 |
|
Таблицы данных |
9290 | Bulk | Active | Non Latching | 20 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.1 ms | Magnetic Shield | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

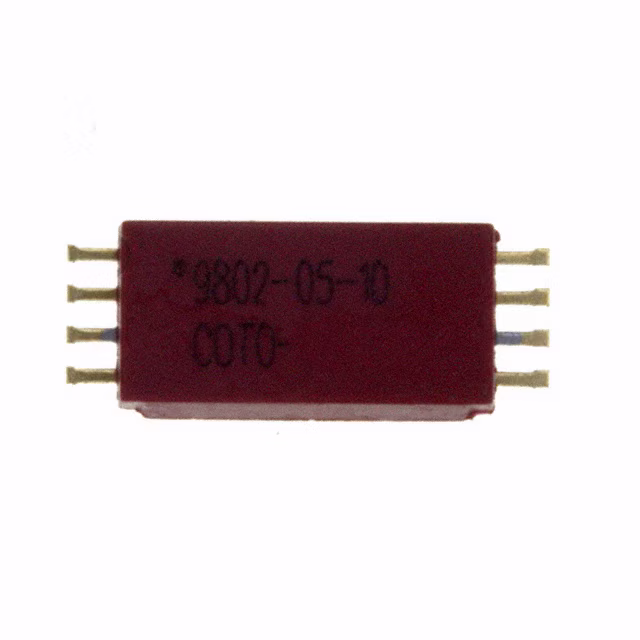

9802-05-10RELAY RF SPST-NO 250MA 5V Coto Technology |
0 |
|
Таблицы данных |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | Axial | -20°C ~ 85°C |
|
|
B10-05BRELAY RF SPST-NO 250MA 5V Coto Technology |
0 |
|
Таблицы данных |
B10 | Tube | Obsolete | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 3.8 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
|
B40-0002BRELAY RF SPST-NO X 4 250MA 3.3V Coto Technology |
0 |
|
Таблицы данных |
B40 | Tube | Obsolete | Non Latching | 60 mA | 3.3VDC | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 0.1 ms | 0.03 ms | - | Surface Mount | BGA | -20°C ~ 85°C |
