Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6K-2F-RF DC24RELAY RF DPDT 1A 24V |
300 |
|
Таблицы данных |
G6K-RF | Tray | Active | Non Latching | 4.6 mA | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 19.2 VDC | 2.4 VDC | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
2-1462051-4RELAY RF SPDT 2A 5V |
2,931 |
|
Таблицы данных |
HF3S, AXICOM | Tape & Reel (TR) | Active | Latching, Dual Coil | 28 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
9852-05-20TRRELAY RF SPDT 100MA 5V |
2,652 |
|
Таблицы данных |
9800 | Tape & Reel (TR) | Active | Non Latching | 45.5 mA | 5VDC | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 1 ms | 1 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
ARJ20A4HRELAY RF DPDT 300MA 4.5V |
1,009 |
|
Таблицы данных |
ARJ | Tube | Active | Non Latching | 44.4 mA | 4.5VDC | DPDT (2 Form C) | 300 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -30°C ~ 70°C |
|
|
ARJ22A12RELAY RF DPDT 300MA 12V |
44 |
|
Таблицы данных |
ARJ | Tube | Active | Latching, Dual Coil | 12.5 mA | 12VDC | DPDT (2 Form C) | 300 mA | 30VDC - Max | 9 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -30°C ~ 70°C |
|
ARS34Y12RELAY RF SPDT 500MA 12V |
862 |
|
Таблицы данных |
ARS | Tube | Active | Non Latching | 16.7 mA | 12VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 10 ms | 6 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
ARS1003RELAY RF SPDT 500MA 3V |
350 |
|
Таблицы данных |
ARS | Tube | Active | Non Latching | 66.7 mA | 3VDC | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 10 ms | 6 ms | - | Through Hole | PC Pin | -40°C ~ 70°C |
|
9202-05-00RELAY RF SPST-NO 500MA 5V |
16,870 |
|
Таблицы данных |
9200 | Bulk | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
9402-05-00RELAY RF SPST-NO 500MA 5V |
268 |
|
Таблицы данных |
9400 | Bulk | Active | Non Latching | 25 mA | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Gull Wing | -20°C ~ 85°C |
|

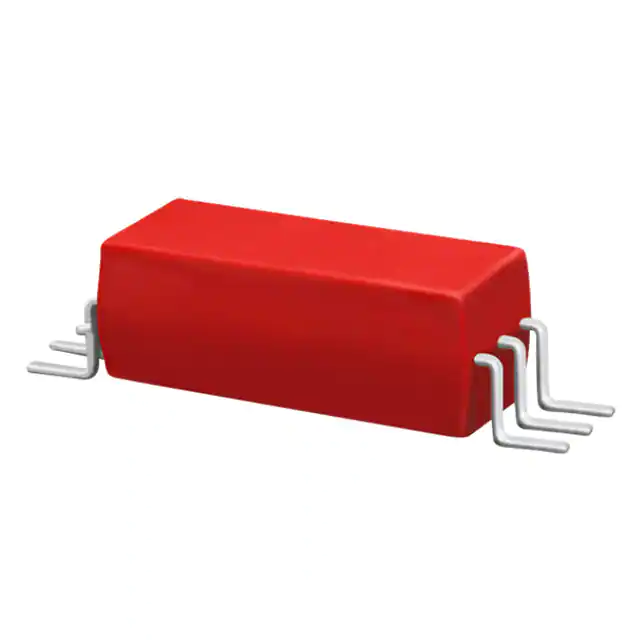

9402-12-00TRRELAY RF SPST-NO 500MA 12V |
1,648 |
|
Таблицы данных |
9400 | Tape & Reel (TR) | Active | Non Latching | 14.5 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.4 ms | 0.2 ms | - | Surface Mount | Gull Wing | -20°C ~ 85°C |
|
|
9814-05-20TRRELAY RF SPST-NO 250MA 5V |
1,947 |
|
Таблицы данных |
9800 | Tape & Reel (TR) | Active | Non Latching | 33.3 mA | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | Magnetic Shield | Surface Mount | J Lead | -20°C ~ 85°C |
|
|
1-1462051-6RELAY RF SPDT 2A 4.5V |
1,567 |
|
Таблицы данных |
HF3, AXICOM | Tape & Reel (TR) | Active | Non Latching | 31.1 mA | 4.5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.38 VDC | 0.45 VDC | 5 ms | 4 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|

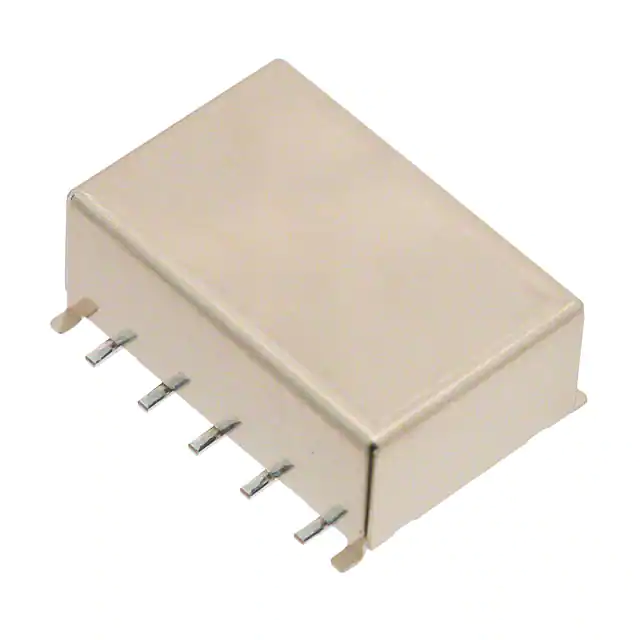

ARA210A4HRELAY RF DPDT 1A 4.5V |
531 |
|
Таблицы данных |
ARA | Tube | Active | Latching, Single Coil | 15.6 mA | 4.5VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 3.38 VDC | - | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
2904-12-321RELAY RF SPST-NO 500MA 12V |
2,555 |
|
Таблицы данных |
2900 | Tube | Active | Non Latching | 8 mA | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | - | Through Hole | PC Pin | -20°C ~ 85°C |
|
|
ARA200A12RELAY RF DPDT 1A 12V |
500 |
|
Таблицы данных |
ARA | Tube | Active | Non Latching | 11.7 mA | 12VDC | DPDT (2 Form C) | 1 A | 30VDC - Max | 9 VDC | 1.2 VDC | 4 ms | 4 ms | - | Surface Mount | Gull Wing | -40°C ~ 85°C |
|
|
1-1462051-2RELAY RF SPDT 2A 5V |
566 |
|
Таблицы данных |
HF3, AXICOM | Tape & Reel (TR) | Active | Latching, Dual Coil | 28.1 mA | 5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.75 VDC | - | 3 ms | 2 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
|
G6KU-2F-RF-TR09 DC5RELAY RF DPDT 1A 5V |
2,889 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-TR03 DC5RELAY RF DPDT 1A 5V |
1,125 |
|
Таблицы данных |
G6K-RF | Tape & Reel (TR) | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6KU-2F-RF-S DC5RELAY RF DPDT 1A 5V |
916 |
|
Таблицы данных |
G6K-RF | Tray | Active | Latching, Single Coil | 21.1 mA | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 3.75 VDC | - | 3 ms | 3 ms | - | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
2-1462051-5RELAY RF SPDT 2A 4.5V |
390 |
|
Таблицы данных |
HF3S, AXICOM | Tape & Reel (TR) | Active | Latching, Dual Coil | 31 mA | 4.5VDC | SPDT (1 Form C) | 2 A | 250VAC, 220VDC - Max | 3.38 VDC | - | 5 ms | 5 ms | - | Surface Mount | Gull Wing | -55°C ~ 85°C |
