Высокочастотные (РЧ) реле
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип катушки | Ток катушки | Напряжение катушки | Форма контакта | Номинал контакта (ток) | Напряжение переключения | Необходимое рабочее напряжение | Необходимое отпускающее напряжение | Время срабатывания | Время отпускания | Особенности | Тип крепления | Тип вывода | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

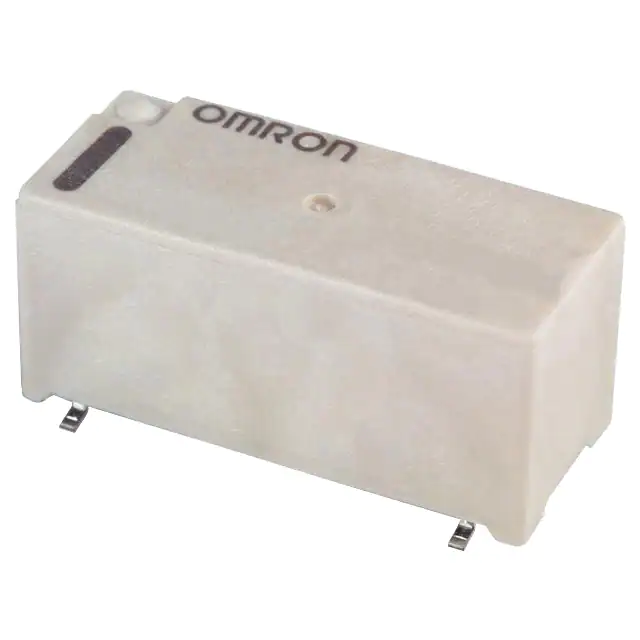

G6ZK-1FE-A DC4.5RELAY RF SPDT 10MA 4.5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Dual Coil | 80 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZK-1FE-A-TRDC4.5RELAY RF SPDT 10MA 4.5V |
0 |
|
Таблицы данных |
G6Z | Tape & Reel (TR) | Active | Latching, Dual Coil | 80 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZK-1FE-TRDC4.5RELAY RF SPDT 10MA 4.5V |
0 |
|
Таблицы данных |
G6Z | Tape & Reel (TR) | Active | Latching, Dual Coil | 80 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
G6ZK-1P-A DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Dual Coil | 30 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZK-1P-A DC5RELAY RF SPDT 10MA 5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Dual Coil | 72 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZK-1P DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Dual Coil | 30 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|

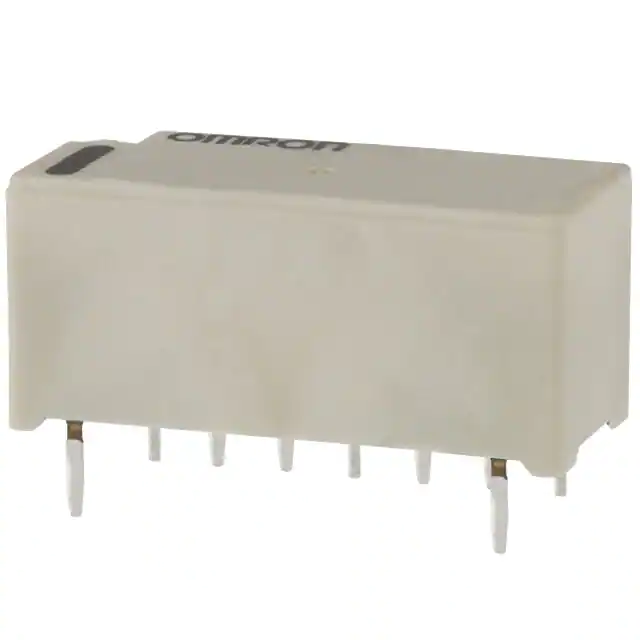

G6ZK-1PE-A DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Active | Latching, Dual Coil | 30 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZK-1PE-A DC24RELAY RF SPDT 10MA 24V |
0 |
|
Таблицы данных |
G6Z | Tube | Active | Latching, Dual Coil | 15 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZK-1PE-A DC4.5RELAY RF SPDT 10MA 4.5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Dual Coil | 80 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZK-1PE DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Dual Coil | 30 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 70°C |
|
|
G6ZU-1F-A DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1F-A DC24RELAY RF SPDT 10MA 24V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1F-A DC3RELAY RF SPDT 10MA 3V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 66.7 mA | 3VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 2.25 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1F-A DC4.5RELAY RF SPDT 10MA 4.5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1F-A DC5RELAY RF SPDT 10MA 5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1F-A DC9RELAY RF SPDT 10MA 9V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 22.2 mA | 9VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 6.75 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1FE-A DC12RELAY RF SPDT 10MA 12V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | 12VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1FE-A DC24RELAY RF SPDT 10MA 24V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 8.3 mA | 24VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1FE-A DC4.5RELAY RF SPDT 10MA 4.5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 44.4 mA | 4.5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
|
|
G6ZU-1FE-A DC5RELAY RF SPDT 10MA 5V |
0 |
|
Таблицы данных |
G6Z | Tube | Obsolete | Latching, Single Coil | 40 mA | 5VDC | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | - | 10 ms | 10 ms | Sealed - Fully | Surface Mount | Gull Wing | -40°C ~ 70°C |
