Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

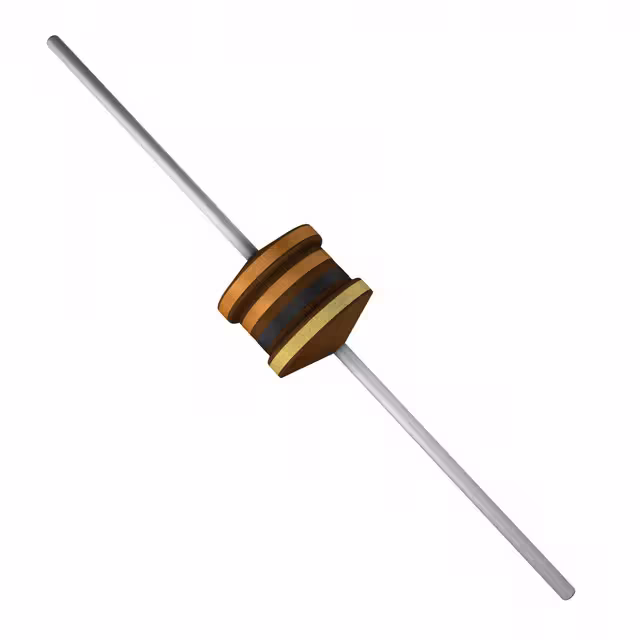

B82144F2333J000FIXED IND 33UH 1.9A 0.22OHM TH EPCOS - TDK Electronics |
972 |
|
Таблицы данных |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.9 A | 1.65A | Unshielded | 220mOhm Max | 40 @ 252kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

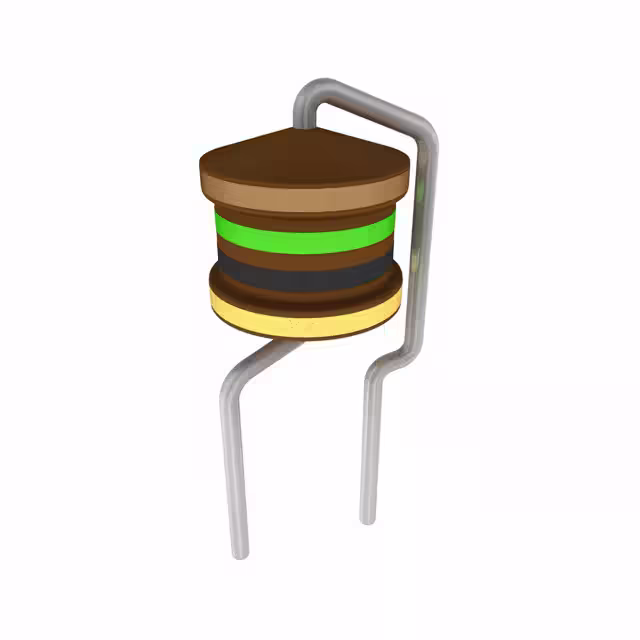

B82144B2104J000FIXED IND 100UH 1.3A 460 MOHM TH EPCOS - TDK Electronics |
1,838 |
|
Таблицы данных |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 1.3 A | 950mA | Unshielded | 460mOhm Max | 40 @ 79.6kHz | 5.4MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

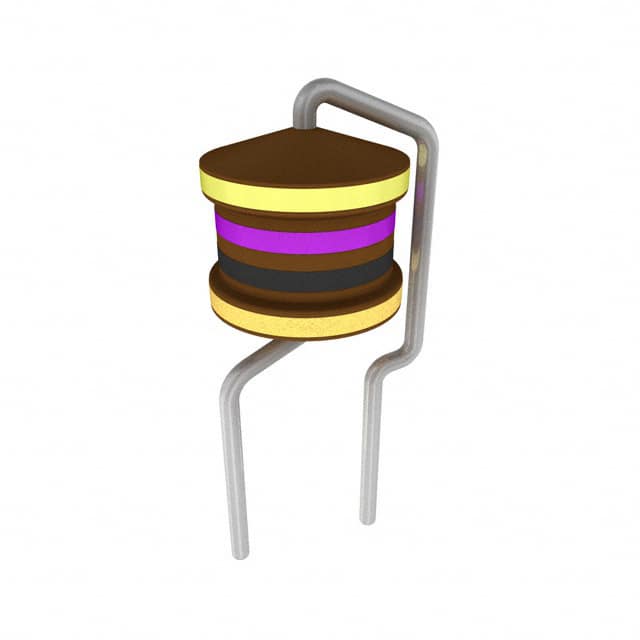

B82144B2473J000FIXED IND 47UH 1.7A 270 MOHM TH EPCOS - TDK Electronics |
501 |
|
Таблицы данных |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 1.7 A | 1.4A | Unshielded | 270mOhm Max | 40 @ 252kHz | 7.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

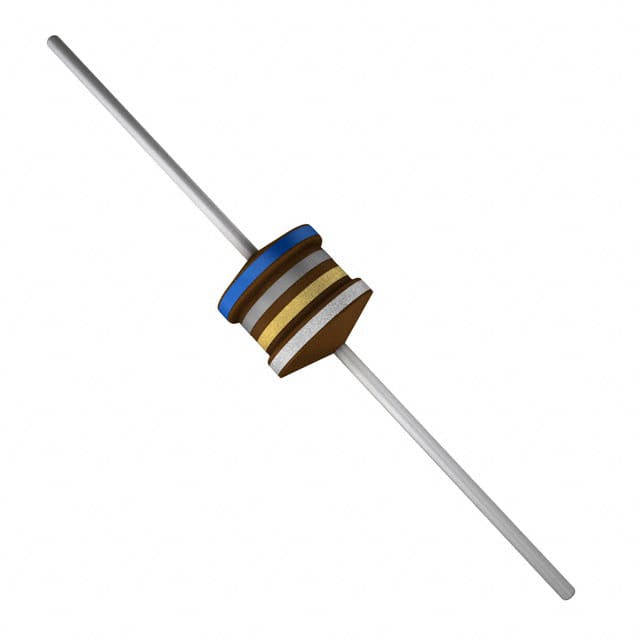

B82144F2682K000FIXED IND 6.8UH 2.75A 0.095OHM EPCOS - TDK Electronics |
393 |
|
Таблицы данных |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.75 A | 3.5A | Unshielded | 95mOhm Max | 50 @ 2.52MHz | 40MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

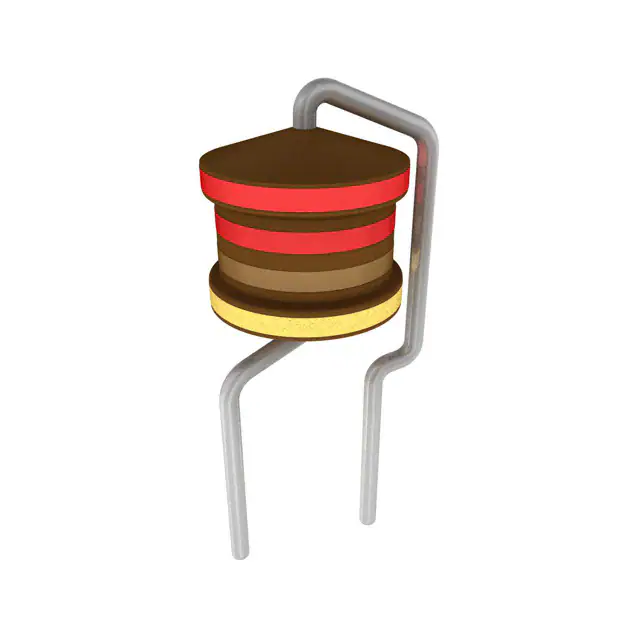

B82144B2224J000FIXED IND 220UH 900MA 1.01OHM TH EPCOS - TDK Electronics |
1,967 |
|
Таблицы данных |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 900 mA | 650mA | Unshielded | 1.01Ohm Max | 40 @ 79.6kHz | 3.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2124J000FIXED IND 120UH 1.1A 600 MOHM TH EPCOS - TDK Electronics |
556 |
|
Таблицы данных |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 1.1 A | 850mA | Unshielded | 600mOhm Max | 40 @ 79.6kHz | 4.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144B2222K000FIXED IND 2.2UH 3.65A 55 MOHM TH EPCOS - TDK Electronics |
643 |
|
Таблицы данных |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 3.65 A | 6A | Unshielded | 55mOhm Max | 60 @ 2.52MHz | 140MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|
B82144F2332K000FIXED IND 3.3UH 3.5A 0.065OHM TH EPCOS - TDK Electronics |
590 |
|
Таблицы данных |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 3.5 A | 5A | Unshielded | 65mOhm Max | 60 @ 2.52MHz | 100MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

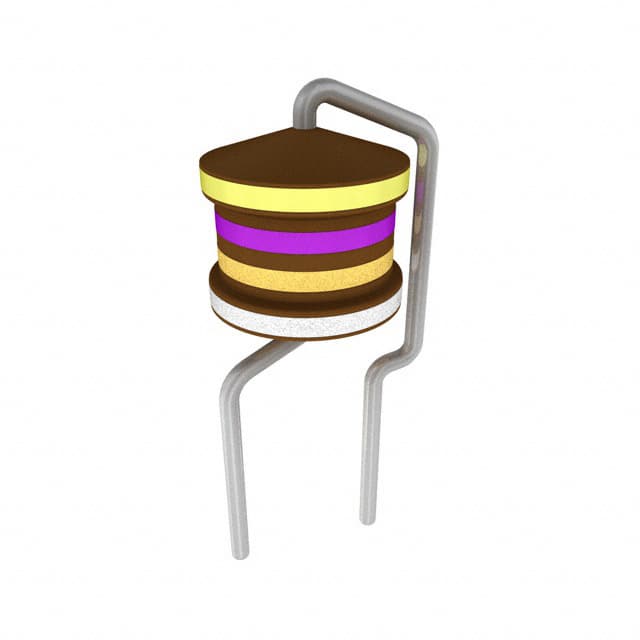

B82144B2472K000FIXED IND 4.7UH 3.05A 80 MOHM TH EPCOS - TDK Electronics |
657 |
|
Таблицы данных |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 3.05 A | 4A | Unshielded | 80mOhm Max | 50 @ 2.52MHz | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
|

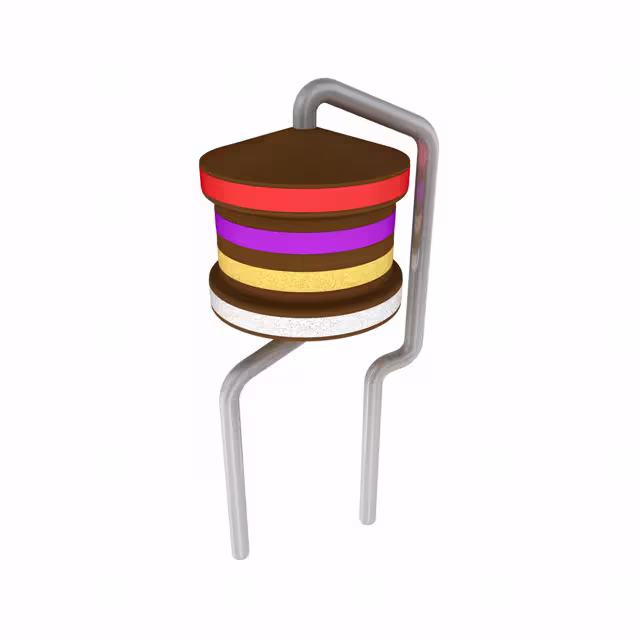

B82144B2272K000FIXED IND 2.7UH 3.55A 60 MOHM TH EPCOS - TDK Electronics |
983 |
|
Таблицы данных |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 3.55 A | 5.4A | Unshielded | 60mOhm Max | 60 @ 2.52MHz | 120MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
