Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

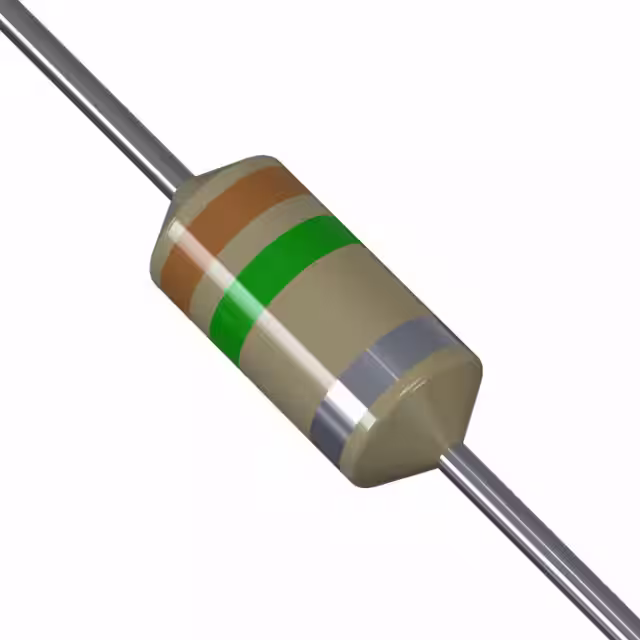

B78108E1151M009FIXED IND 150NH 6.5A 17 MOHM TH EPCOS - TDK Electronics |
3,694 |
|
Таблицы данных |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 6.5 A | 14.5A | Unshielded | 17mOhm Max | 50 @ 7.96MHz | 650MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

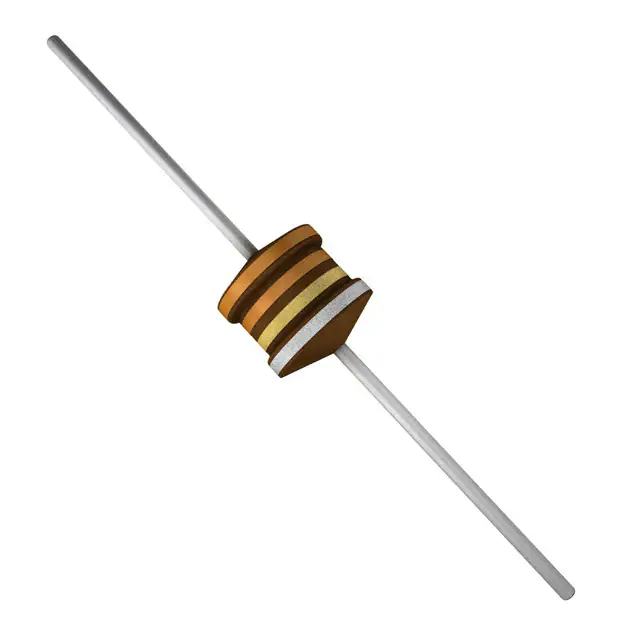

B78108E1332K000FIXED IND 3.3UH 3.05A 73 MOHM TH EPCOS - TDK Electronics |
2,256 |
|
Таблицы данных |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 3.05 A | 3.25A | Unshielded | 73mOhm Max | 45 @ 7.96MHz | 75MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108E1153K009FIXED IND 15UH 1.6A 230 MOHM TH EPCOS - TDK Electronics |
3,935 |
|
Таблицы данных |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.6 A | 1.45A | Unshielded | 230mOhm Max | 40 @ 796kHz | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B82144F2154J000FIXED IND 150UH 1.05A 0.7OHM TH EPCOS - TDK Electronics |
3,106 |
|
Таблицы данных |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 1.05 A | 750mA | Unshielded | 700mOhm Max | 40 @ 79.6kHz | 4.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

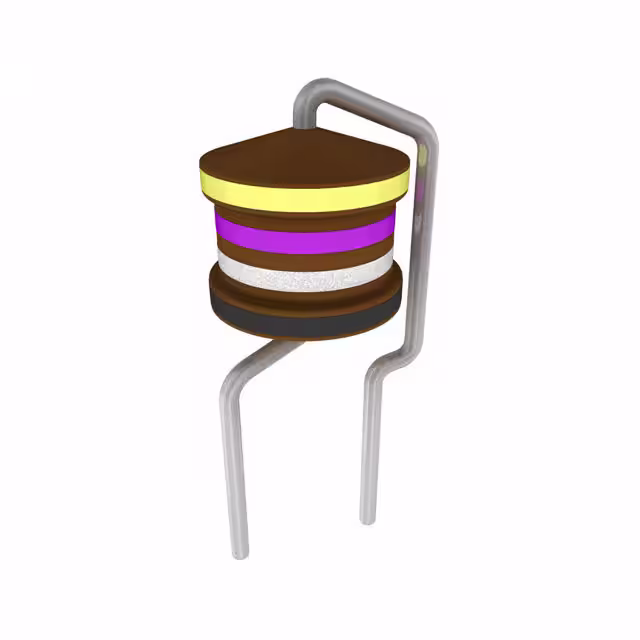

B78148E1471M000FIXED IND 470NH 5A 27 MOHM TH EPCOS - TDK Electronics |
1,406 |
|
Таблицы данных |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 5 A | 8.5A | Unshielded | 27mOhm Max | 60 @ 7.96MHz | 400MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
B78108E1104J009FIXED IND 100UH 640MA 1.45OHM TH EPCOS - TDK Electronics |
29,683 |
|
Таблицы данных |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 640 mA | 580mA | Unshielded | 1.45Ohm Max | 60 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

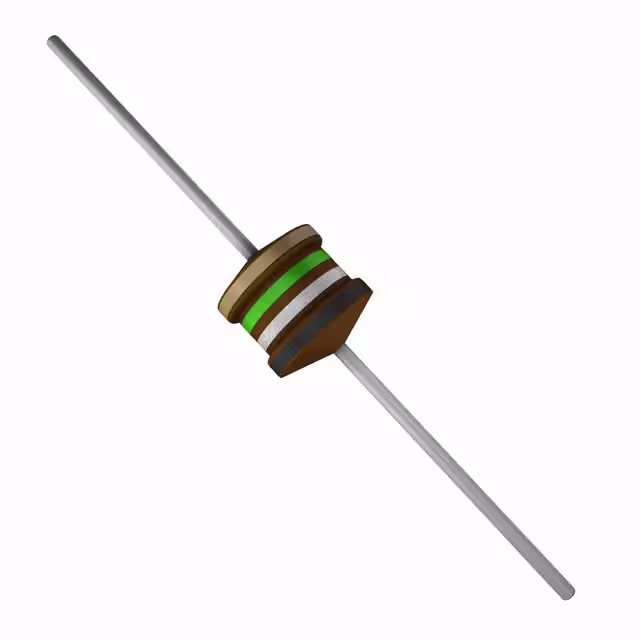

B78108E1151M000FIXED IND 150NH 6.5A 17 MOHM TH EPCOS - TDK Electronics |
3,673 |
|
Таблицы данных |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 6.5 A | 14.5A | Unshielded | 17mOhm Max | 50 @ 7.96MHz | 650MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108E1471M000FIXED IND 470NH 5A 27 MOHM TH EPCOS - TDK Electronics |
2,461 |
|
Таблицы данных |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 5 A | 8.5A | Unshielded | 27mOhm Max | 60 @ 7.96MHz | 400MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
.jpg)
|
B82422H1154J000FIXED IND 150UH 120MA 7.5OHM SMD EPCOS - TDK Electronics |
1,847 |
|
Таблицы данных |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 120 mA | - | Unshielded | 7.5Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

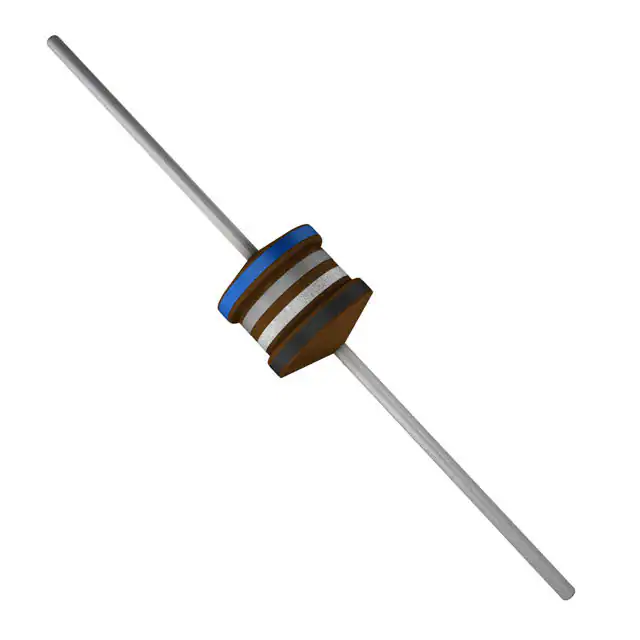

B78108E1681M000FIXED IND 680NH 4.6A 31 MOHM TH EPCOS - TDK Electronics |
1,406 |
|
Таблицы данных |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 4.6 A | 7.1A | Unshielded | 31mOhm Max | 60 @ 7.96MHz | 360MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
