Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

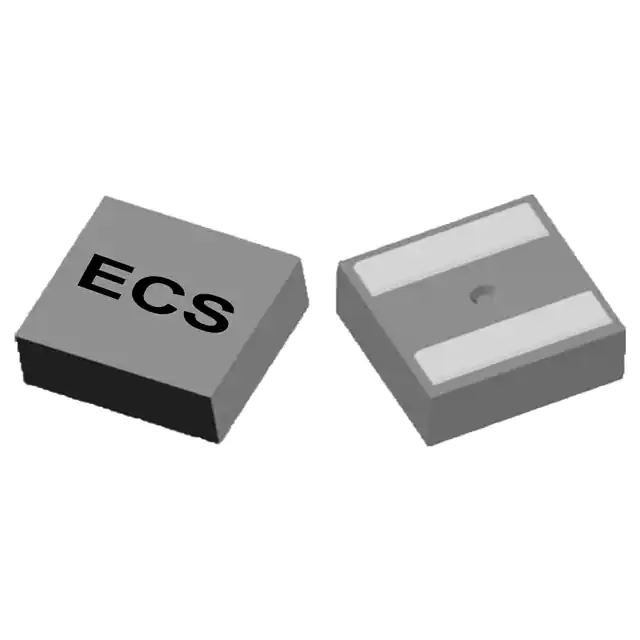

ECS-HCMPI-0503Q-1R5M-TFIXED IND 1.5UH 10.5A 11.2 MOHM ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 10.5 A | 12.5A | Shielded | 11.2mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-1R2M-TFIXED IND 1.2UH 11A 9.7 MOHM SMD ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 11 A | 13.5A | Shielded | 9.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-R60M-TFIXED IND 600NH 17.7A 4.52 MOHM ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 600 nH | ±20% | 17.7 A | 20A | Shielded | 4.52mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-R15M-TFIXED IND 150NH 22.2A 2.31 MOHM ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 150 nH | ±20% | 22.2 A | 32.5A | Shielded | 2.31mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-R56M-TFIXED IND 560NH 17.7A 4.52 MOHM ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | 17.7 A | 20.2A | Shielded | 4.52mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-R82M-TFIXED IND 820NH 12.9A 5.78 MOHM ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 12.9 A | 17.6A | Shielded | 5.78mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
ECS-MPIL0530-5R6MCFIXED IND 5.6UH SMD ECS Inc. |
0 |
|
Таблицы данных |
ECS-MPIL0530 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | - | - | Shielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
ECS-MPIL0630-R56MCFIXED IND 560NH SMD ECS Inc. |
0 |
|
Таблицы данных |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 560 nH | ±20% | - | - | Shielded | - | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-HCMPI-0402Q-1R2M-TFIXED IND 1.2UH 9A 0.0179OHM SMD ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0402Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.2 µH | ±20% | 9 A | 7.8A | Shielded | 17.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
ECS-HCMPI-0402Q-1R8M-TFIXED IND 1.8UH 7A 0.028OHM SMD ECS Inc. |
0 |
|
Таблицы данных |
ECS-HCMPI-0402Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.8 µH | ±20% | 7 A | 7A | Shielded | 28mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 0402 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
