Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCQ1V2012-2R2-RFIXED IND 2.2UH 50MA 600MOHM SMD Eaton - Electronics Division |
3,956 |
|
Таблицы данных |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±10% | 50 mA | - | Unshielded | 600mOhm Max | 35 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
MCL2012V1-R100-RFIXED IND 100NH 350MA 200MOHM SM Eaton - Electronics Division |
3,955 |
|
Таблицы данных |
MCL2012V1 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±20% | 350 mA | - | Unshielded | 200mOhm Max | - | 235MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCQ1V2012-R100-RFIXED IND 100NH 250MA 200MOHM SM Eaton - Electronics Division |
3,955 |
|
Таблицы данных |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 100 nH | ±10% | 250 mA | - | Unshielded | 200mOhm Max | 20 @ 25MHz | 235MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|
|
MCL1608V1-R082-RFIXED IND 82NH 150MA 120MOHM SMD Eaton - Electronics Division |
3,918 |
|
Таблицы данных |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 82 nH | ±20% | 150 mA | - | Unshielded | 120mOhm Max | - | 245MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCQ1V2012-R560-RFIXED IND 560NH 150MA 600MOHM SM Eaton - Electronics Division |
3,912 |
|
Таблицы данных |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 560 nH | ±10% | 150 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 115MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
-,65-White-Field.jpg)
|
MCL1005-120-RFIXED IND 12NH 300MA 500MOHM SMD Eaton - Electronics Division |
3,762 |
|
Таблицы данных |
MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 12 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 2.7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCQ1V2012-R330-RFIXED IND 330NH 250MA 400MOHM SM Eaton - Electronics Division |
3,727 |
|
Таблицы данных |
MCQ1V2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±10% | 250 mA | - | Unshielded | 400mOhm Max | 20 @ 25MHz | 145MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.043" (1.10mm) |
|

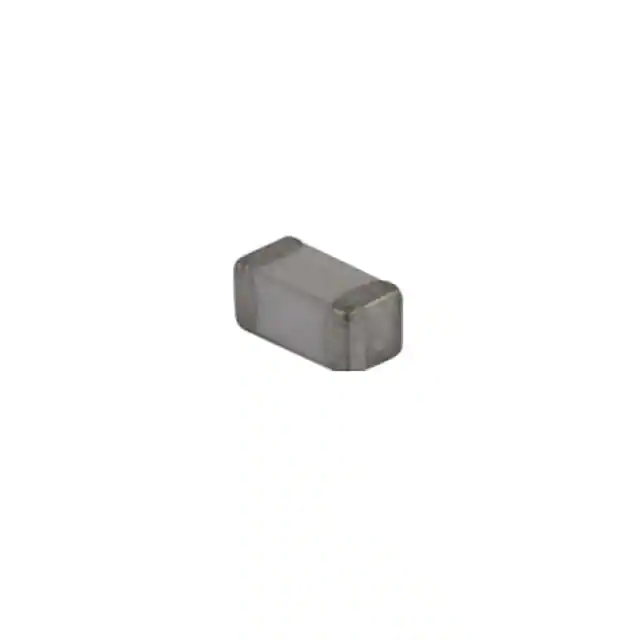

MCLA1608V2-6R8-RFIXED IND 6.8NH 500MA 300MOHM SM Eaton - Electronics Division |
3,602 |
|
Таблицы данных |
MCLA1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 6.8 nH | ±5% | 500 mA | - | Unshielded | 300mOhm Max | 10 @ 100MHz | 5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MCL1608V2-5R6-RFIXED IND 5.6NH 500MA 250MOHM SM Eaton - Electronics Division |
3,567 |
|
Таблицы данных |
MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 5.6 nH | ±0.3nH | 500 mA | - | Unshielded | 250mOhm Max | 10 @ 100MHz | 5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
MCL1608V1-R068-RFIXED IND 68NH 150MA 120MOHM SMD Eaton - Electronics Division |
3,554 |
|
Таблицы данных |
MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 68 nH | ±20% | 150 mA | - | Unshielded | 120mOhm Max | - | 250MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
