Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3814-221-RFIXED IND 220UH 170MA 5.48OHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±15% | 170 mA | 181mA | Shielded | 5.48Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|
SD3814-2R2-RFIXED IND 2.2UH 1.43A 77MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±15% | 1.43 A | 1.9A | Shielded | 77mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|
|

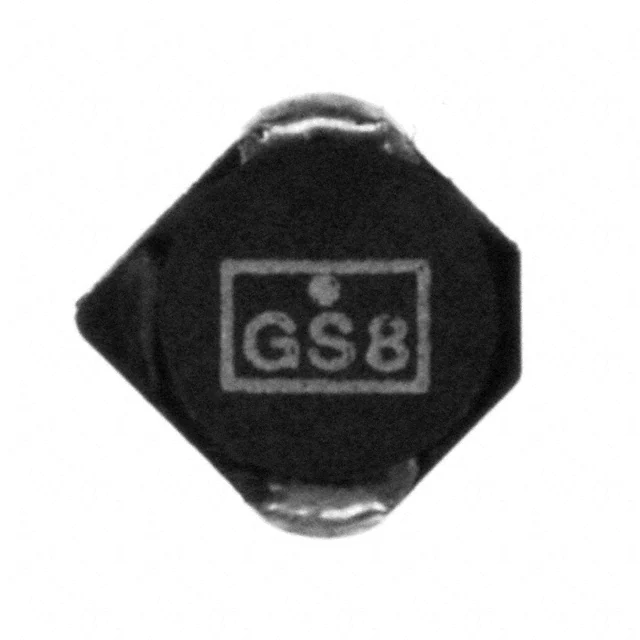

SD3814-4R7-RFIXED IND 4.7UH 1.06A 141MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD38 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±15% | 1.06 A | 1.29A | Shielded | 141mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.055" (1.40mm) |
|

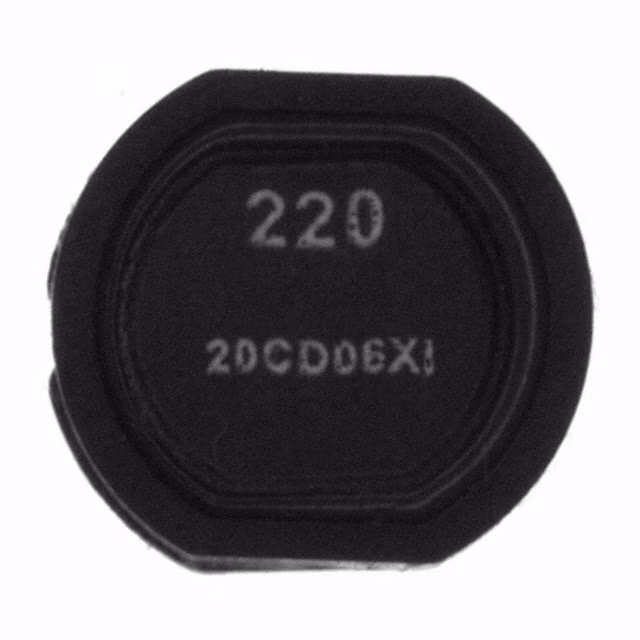

LDS0705-220M-RFIXED IND 22UH 1.66A 84 MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.66 A | 1.71A | Shielded | 84mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-1R5M-RFIXED IND 1.5UH 6.17A 6.1MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.17 A | 6.67A | Shielded | 6.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-330M-RFIXED IND 33UH 1.48A 107MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.48 A | 1.4A | Shielded | 107mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-331M-RFIXED IND 330UH 470MA 1.06OHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 470 mA | 438mA | Shielded | 1.06Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-3R3M-RFIXED IND 3.3UH 4.19A 13MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 4.19 A | 4.62A | Shielded | 13mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-471M-RFIXED IND 470UH 387MA 1.56OHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 387 mA | 368mA | Shielded | 1.56Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
|
LDS0705-680M-RFIXED IND 68UH 985MA 240MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 985 mA | 952mA | Shielded | 240mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
