Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD3114-151-RFIXED IND 150UH 172MA 5.07OHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 172 mA | 207mA | Shielded | 5.07Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-1R5-RFIXED IND 1.5UH 1.39A 77MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.39 A | 2.11A | Shielded | 77mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-220-RFIXED IND 22UH 430MA 821MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 430 mA | 530mA | Shielded | 821mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-2R2-RFIXED IND 2.2UH 1.17A 110MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.17 A | 1.74A | Shielded | 110mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-330-RFIXED IND 33UH 350MA 1.23OHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 350 mA | 440mA | Shielded | 1.23Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-3R3-RFIXED IND 3.3UH 950MA 167MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 950 mA | 1.38A | Shielded | 167mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-470-RFIXED IND 47UH 280MA 1.86OHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 280 mA | 370mA | Shielded | 1.86Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-680-RFIXED IND 68UH 239MA 2.62OHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 239 mA | 305mA | Shielded | 2.62Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|

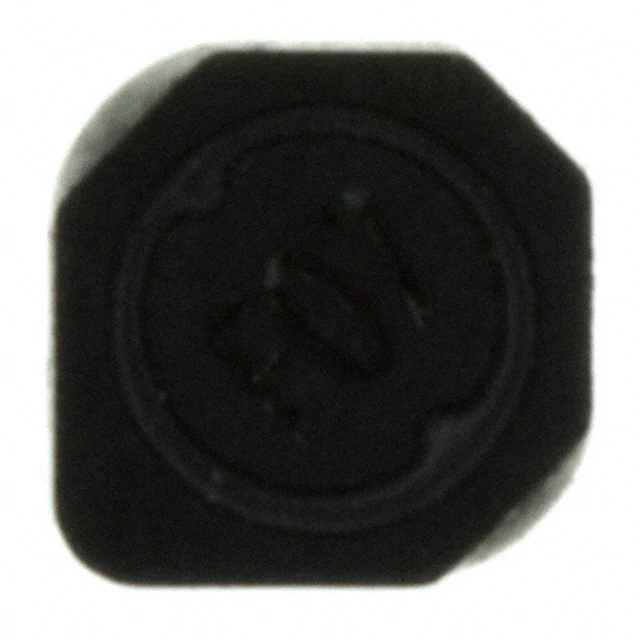

SD3114-6R8-RFIXED IND 6.8UH 710MA 296MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 710 mA | 980mA | Shielded | 296mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
|
|
SD3114-8R2-RFIXED IND 8.2UH 680MA 329MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 680 mA | 890mA | Shielded | 329mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
