Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX750-2-52-RFIXED IND 750UH 3.4A 208 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 3.4 A | 3.4A | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.705" Dia x 0.717" W (43.30mm x 18.20mm) | - |
|
|
CTX750-2-52LP-RFIXED IND 750UH 3.4A 208 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 3.4 A | 3.4A | Unshielded | 208mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.705" Dia (43.30mm) | 0.717" (18.20mm) |
|
CTX10-16-52LP-RFIXED IND 10UH 27.3A 3.2 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 27.3 A | 29.3A | Unshielded | 3.2mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.980" Dia (50.30mm) | 0.945" (24.00mm) |
|
|
CTX50-10-52LP-RFIXED IND 50UH 13.9A 12.4MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 13.9 A | 12.7A | Unshielded | 12.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.870" Dia (47.50mm) | 0.839" (21.30mm) |
|
|
CTX100-7-52LP-RFIXED IND 100UH 12A 16.7 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 12 A | 9.1A | Unshielded | 16.7mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.909" Dia (48.50mm) | 0.858" (21.80mm) |
|
|
CTX250-5-52LP-RFIXED IND 250UH 9.2A 40 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 9.2 A | 8.1A | Unshielded | 40mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.114" Dia (53.70mm) | 0.957" (24.30mm) |
|
|
CTX20-16-52LP-RFIXED IND 20UH 31.5A 3.4 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 31.5 A | 29.5A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.323" Dia (59.00mm) | 1.102" (28.00mm) |
|

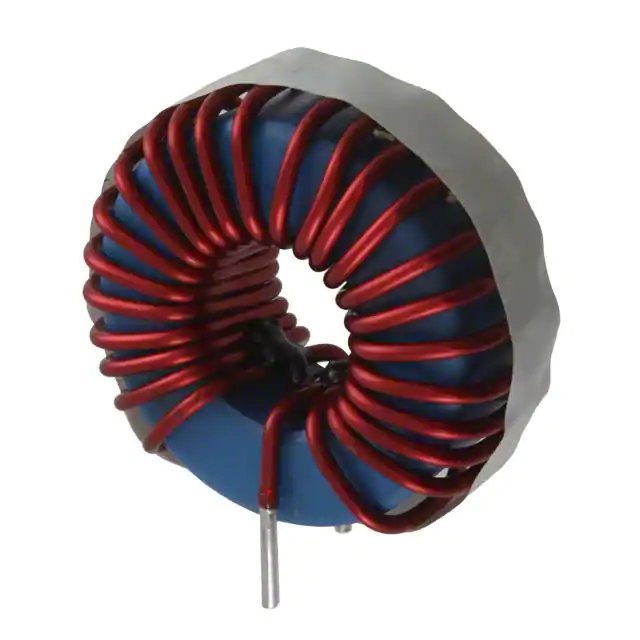

CTX100-10-52-RFIXED IND 100UH 17.6A 10.9 MOHM Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 17.6 A | 13A | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.244" Dia x 1.083" W (57.00mm x 27.50mm) | - |
|
|
CTX150-7-52-RFIXED IND 150UH 12.8A 20.4 MOHM Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 12.8 A | 10.5A | Unshielded | 20.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.146" Dia x 1.000" W (54.50mm x 25.40mm) | - |
|
|
CTX150-7-52LP-RFIXED IND 150UH 12.8A 20.4 MOHM Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 12.8 A | 10.5A | Unshielded | 20.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 2.146" Dia (54.50mm) | 1.000" (25.40mm) |
