Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EXL1V0505-100-RFIXED IND 10UH 5A 43 MOHM SMD Eaton - Electronics Division |
748 |
|
Таблицы данных |
EXL1V0505 | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Powder | 10 µH | ±20% | 5 A | 5.4A | Shielded | 43mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.224" W (6.00mm x 5.70mm) | 0.197" (5.00mm) |
|

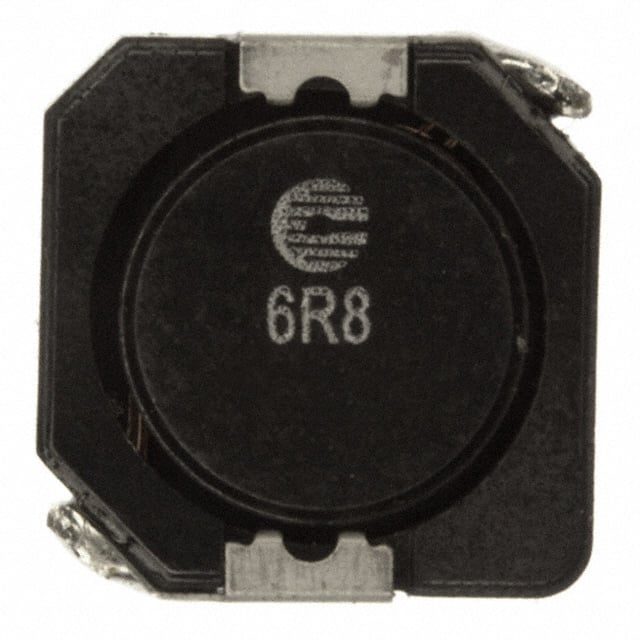

DR1030-6R8-RFIXED IND 6.8UH 3.5A 30 MOHM SMD Eaton - Electronics Division |
35 |
|
Таблицы данных |
DR1030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.5 A | 3.9A | Shielded | 30mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.118" (3.00mm) |
|

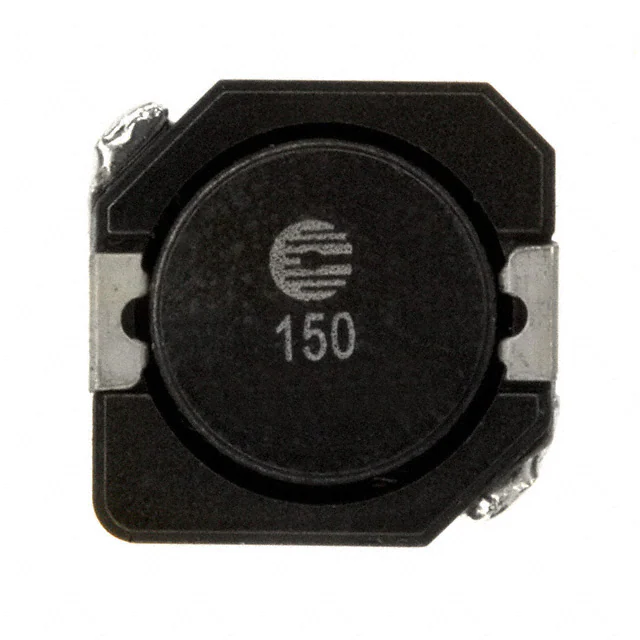

DR1040-150-RFIXED IND 15UH 3.1A 50 MOHM SMD Eaton - Electronics Division |
1,727 |
|
Таблицы данных |
DR1040 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.1 A | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

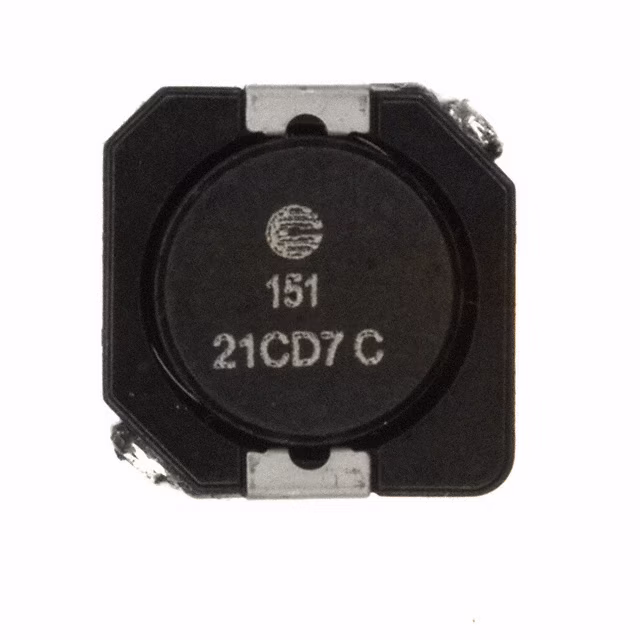

DR1050-151-RFIXED IND 150UH 1.26A 298MOHM SM Eaton - Electronics Division |
386 |
|
Таблицы данных |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1.26 A | 1.15A | Shielded | 298mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

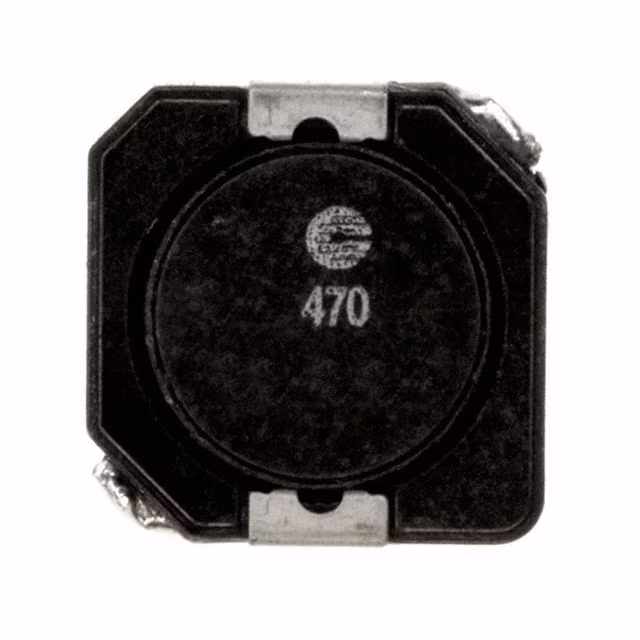

DR1050-470-RFIXED IND 47UH 2.06A 111MOHM SMD Eaton - Electronics Division |
1,379 |
|
Таблицы данных |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2.06 A | 2.1A | Shielded | 111mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

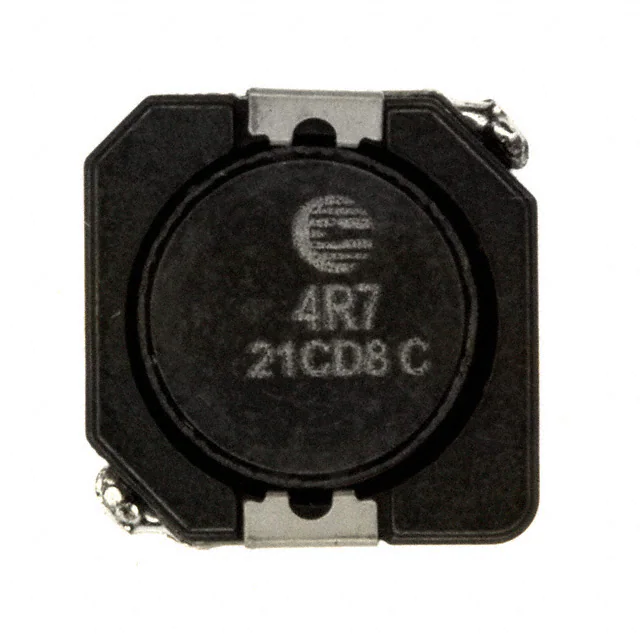

DR1050-4R7-RFIXED IND 4.7UH 6.13A 11.9 MOHM Eaton - Electronics Division |
499 |
|
Таблицы данных |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 6.13 A | 6.7A | Shielded | 11.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
DR1050-8R2-RFIXED IND 8.2UH 5.24A 19MOHM SMD Eaton - Electronics Division |
1,439 |
|
Таблицы данных |
DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±30% | 5.24 A | 5A | Shielded | 19mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|

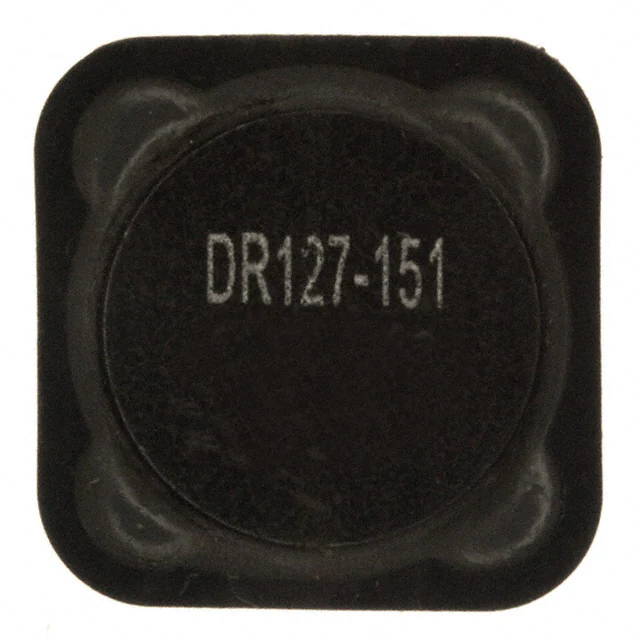

DR127-151-RFIXED IND 150UH 1.59A 247MOHM SM Eaton - Electronics Division |
51 |
|
Таблицы данных |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.59 A | 3.01A | Shielded | 247mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
HCM1A0805V2-150-RIND MP 15UH 4.6A 2 PADS SMT Eaton - Electronics Division |
570 |
|
Таблицы данных |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 15 µH | ±20% | 4 A | 4.6A | Shielded | 52mOhm Max | - | 8MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.315" W (8.10mm x 8.00mm) | 0.213" (5.40mm) |
|
HCF1007-1R5-RFIXED IND 1.5UH 13A 4.15MOHM SMD Eaton - Electronics Division |
35 |
|
Таблицы данных |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 13 A | 22A | Unshielded | 4.15mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
