Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1305-7R8-RFIXED IND 7.8UH 7.6A 19.4MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 7.8 µH | ±20% | 7.6 A | 15A | Shielded | 19.4mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-1R8-RFIXED IND 1.8UH 16A 4.6MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.8 µH | ±20% | 16 A | 20A | Shielded | 4.6mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-R56-RFIXED IND 560NH 28A 1.33MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 560 nH | ±20% | 28 A | 36A | Shielded | 1.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-R68-RFIXED IND 680NH 27A 1.33MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 27 A | 32A | Shielded | 1.33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-R82-RFIXED IND 820NH 26A 1.61MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 820 nH | ±20% | 26 A | 26A | Shielded | 1.61mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-6R0-RFIXED IND 6UH 8.1A 14.5 MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6 µH | ±20% | 8.1 A | 12.5A | Shielded | 14.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
HCM1A1307-8R2-RFIXED IND 8.2UH 8.2A 13MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 8.2 A | 13A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-1R2-RFIXED IND 1.2UH 21.8A 2.12 MOHM Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 1.2 µH | ±20% | 21.8 A | 28A | Shielded | 2.12mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|
|
HCM1A1307-7R8-RFIXED IND 7.8UH 8.8A 11.5MOHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 7.8 µH | ±20% | 8.8 A | 16A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.512" W (13.70mm x 13.00mm) | 0.256" (6.50mm) |
|

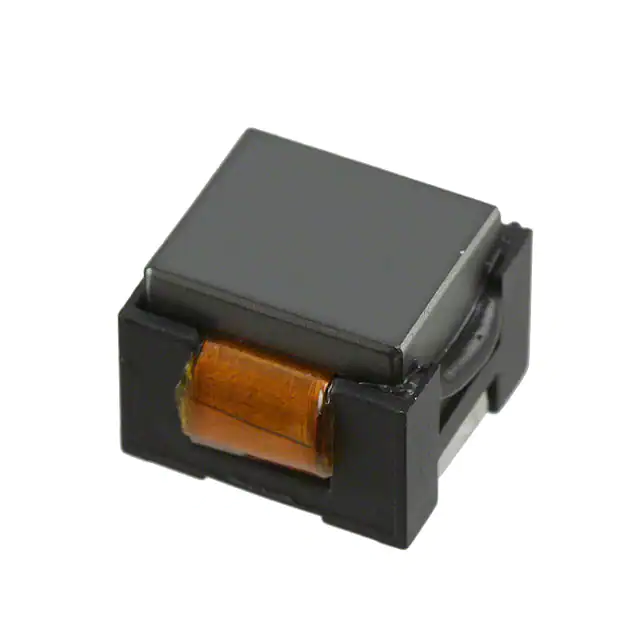

HC1-R87-RFIXED IND 870NH 28.01A 1.23 MOHM Eaton - Electronics Division |
0 |
|
Таблицы данных |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 870 nH | ±15% | 28.01 A | 21A | Unshielded | 1.23mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
