Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRA127-4R7-RFIXED IND 4.7UH 8.14A 9.4MOHM SM Eaton - Electronics Division |
229 |
|
Таблицы данных |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 8.14 A | 16.5A | Shielded | 9.4mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRA124-1R0-RFIXED IND 1UH 11.65A 3.1MOHM SMD Eaton - Electronics Division |
1,504 |
|
Таблицы данных |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 11.65 A | 22A | Shielded | 3.1mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
FP3-100-RFIXED IND 10UH 2.3A 101 MOHM SMD Eaton - Electronics Division |
1,247 |
|
Таблицы данных |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±15% | 2.3 A | 3A | Shielded | 101mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
|
DRA124-681-RFIXED IND 680UH 466MA 1.96OHM SM Eaton - Electronics Division |
750 |
|
Таблицы данных |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 466 mA | 759mA | Shielded | 1.96Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
HCP0704-2R3-RFIXED IND 2.3UH 7.5A 16.5MOHM SM Eaton - Electronics Division |
818 |
|
Таблицы данных |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.3 µH | ±25% | 7.5 A | 11.5A | Shielded | 16.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
HCV1206-1R5-RFIXED IND 1.5UH 12A 6 MOHM SMD Eaton - Electronics Division |
535 |
|
Таблицы данных |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 12 A | 21A | Unshielded | 6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
|
UP5S-220-RFIXED IND 22UH 3.15A 45 MOHM SMD Eaton - Electronics Division |
644 |
|
Таблицы данных |
UNI-PAC™ 5S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.15 A | 5.05A | Shielded | 45mOhm Max | - | 15MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|

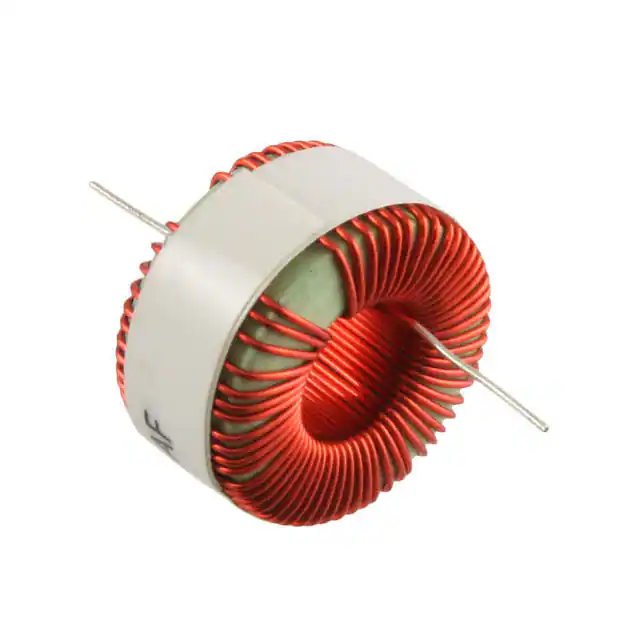

CTX250-1-52-RFIXED IND 250UH 1.9A 221 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.9 A | 2.2A | Unshielded | 221mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.823" Dia x 0.512" W (20.90mm x 13.00mm) | - |
|
|
FP3-1R0-RFIXED IND 1UH 6.26A 11.2MOHM SMD Eaton - Electronics Division |
2,094 |
|
Таблицы данных |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±15% | 6.26 A | 9.5A | Unshielded | 11.2mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
HCP0805-1R5-RFIXED IND 1.5UH 13.3A 6.8MOHM SM Eaton - Electronics Division |
400 |
|
Таблицы данных |
HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 13.3 A | 18A | Shielded | 6.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | 0.197" (5.00mm) |
