Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

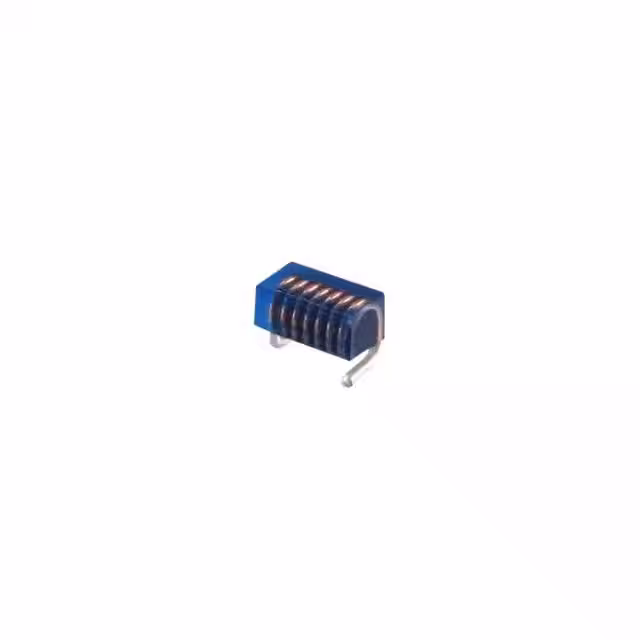

CTAC1008F-6N8KSMD AIR CORE INDUCTOR |
15 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 6.8 nH | ±10% | - | - | - | 4mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|

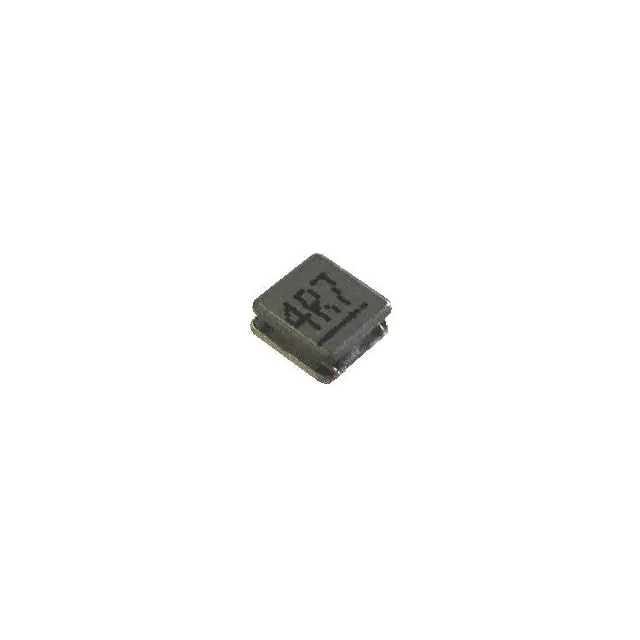

CTLV3012SF-100M10UH SMD POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLV3012SF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 950 mA | 900mA | Shielded | 420mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

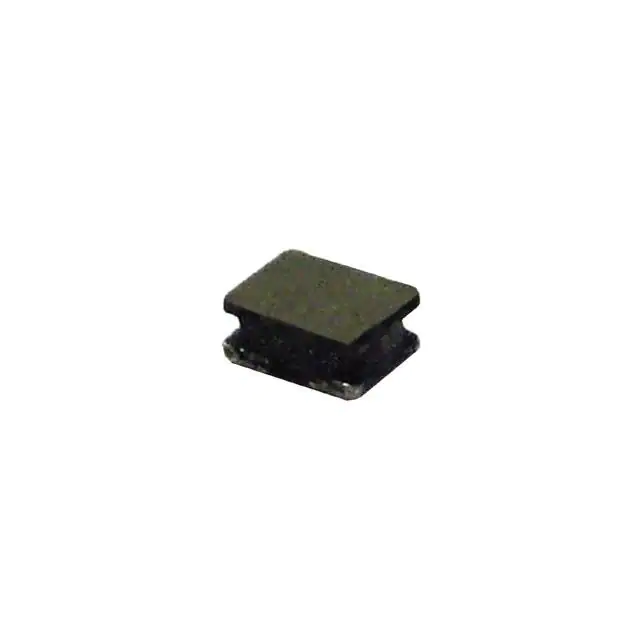

CTLVH2512F-3R3MSMD SHIELDED POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLVH2512F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.65 A | 2.1A | Shielded | 155mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CTLV3012SF-220M22UH SMD POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLV3012SF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 570 mA | 550mA | Shielded | 860mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
CTLV3012SF-2R2M2.2UH SMD POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLV3012SF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.89 A | 1.8A | Shielded | 92mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
CTLV3012SF-3R3M3.3UH SMD POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLV3012SF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.65 A | 1.62A | Shielded | 130mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
CTLV3012SF-4R7M4.7UH SMD POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLV3012SF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.4 A | 1.36A | Shielded | 180mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
CTLVH2512F-100MSMD SHIELDED POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLVH2512F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1 A | 1.3A | Shielded | 400mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CTLVH2512F-4R7MSMD SHIELDED POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLVH2512F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.5 A | 1.9A | Shielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CTLVH2512F-6R8MSMD SHIELDED POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLVH2512F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 1.2 A | 1.6A | Shielded | 285mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CTLV3012SF-150M15UH SMD POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLV3012SF | 1212 (3030 Metric) | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 730 mA | 720mA | Shielded | 560mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
CTLVH2512F-220MSMD SHIELDED POWER INDUCTOR |
10 |
|
Таблицы данных |
CTLVH2512F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 600 mA | 830mA | Shielded | 910mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CTAC1008F-47NKSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 47 nH | ±10% | - | - | - | 25.2Ohm | - | 1.5GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC1008F-56NKSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 56 nH | ±10% | - | - | - | 27.5Ohm | - | 1.3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC1008F-68NKSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 68 nH | ±10% | - | - | - | 37.1mOhm | - | 1.3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC1008F-R10KSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 100 nH | ±10% | - | - | - | 55.5mOhm | - | 1GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC1008F-8N2KSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 8.2 nH | ±10% | - | - | - | 5mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC1008F-82NKSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 82 nH | ±10% | - | - | - | 51.5mOhm | - | 1GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC1008F-10NKSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 10 nH | ±10% | - | - | - | 6mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
|
|
CTAC1008F-12NKSMD AIR CORE INDUCTOR |
10 |
|
Таблицы данных |
ctac1008f | - | Tape & Reel (TR) | Active | Wirewound | - | 12 nH | ±10% | - | - | - | 6.5mOhm | - | 3GHz | - | -25°C ~ 85°C | - | - | Surface Mount | - | - | - |
