Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

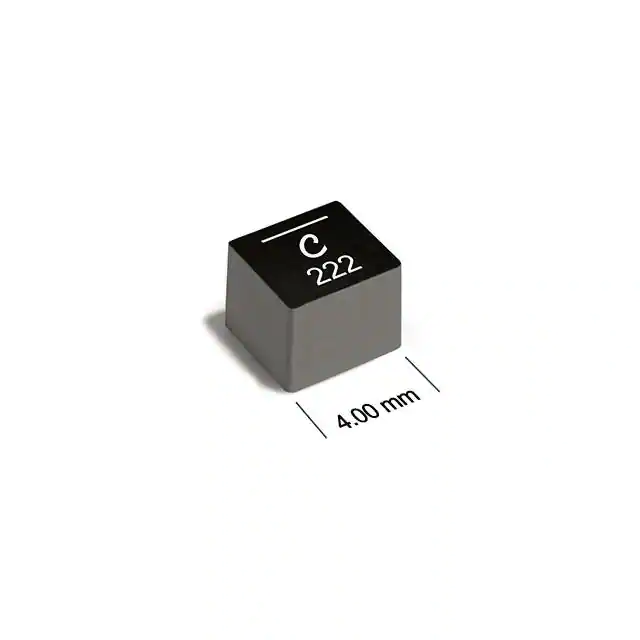

XGL4040-681MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
1,928 |
|
Таблицы данных |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 680 nH | ±20% | 18.3 A | 10.5A | Shielded | 4mOhm Max | - | 72MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XGL4040-682MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
1,841 |
|
Таблицы данных |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 5.6 A | 4A | Shielded | 34.7mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
MSS1048-334KLCFIXED IND 330UH 820MA 748MOHM SM Coilcraft |
1,098 |
|
Таблицы данных |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 330 µH | ±10% | 820 mA | 570mA | Shielded | 748mOhm Max | - | 3MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MSS1048-474KLCFIXED IND 470UH 720MA 886MOHM SM Coilcraft |
658 |
|
Таблицы данных |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 470 µH | ±10% | 720 mA | 430mA | Shielded | 886mOhm Max | - | 2.7MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MSS1048-332NLCFIXED IND 3.3UH 7.22A 10MOHM SM Coilcraft |
626 |
|
Таблицы данных |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 3.3 µH | ±30% | 7.22 A | 4.62A | Shielded | 10mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
XGL4040-472MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
610 |
|
Таблицы данных |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 7.1 A | 4.4A | Shielded | 24.5mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XGL4040-223MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
562 |
|
Таблицы данных |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 2.5 A | 1.9A | Shielded | 114.7mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
XGL4040-222MECPOWER INDUCTOR, SHIELDED, COMPOS Coilcraft |
395 |
|
Таблицы данных |
XGL4040 | 1616 (4040 Metric) | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 11 A | 6.4A | Shielded | 11.5mOhm Max | - | 37MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.161" (4.10mm) |
|
|
MSS1048-801NLCFIXED IND 800NH 12A 4.3MOHM SM Coilcraft |
366 |
|
Таблицы данных |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 800 nH | ±30% | 12 A | 9.6A | Shielded | 4.3mOhm Max | - | 180MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
MSS1048-473MLCFIXED IND 47UH 2.42A 120MOHM SM Coilcraft |
302 |
|
Таблицы данных |
MSS1048 | Nonstandard | Tape & Reel (TR) | Active | Drum Core | Ferrite | 47 µH | ±20% | 2.42 A | 1.44A | Shielded | 120mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
