Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

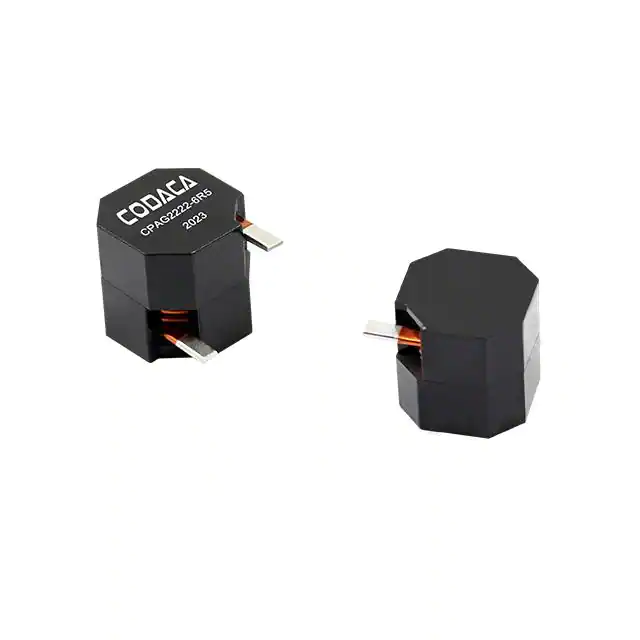

CPAG2222-3R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
20 |
|
Таблицы данных |
CPAG2222 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 3.2 µH | ±20% | 49 A | 76A | Shielded | 0.85mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | Flat Wire, High Current | Through Hole | Radial | - | - |
|
CPEX2017S-3R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
Таблицы данных |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 3 µH | ±20% | 41.8 A | 88A | Shielded | 1.38mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-140MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
Таблицы данных |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 14 µH | ±20% | 20.5 A | 41A | Shielded | 5.76mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-6R0MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
Таблицы данных |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 6 µH | ±20% | 31 A | 61A | Shielded | 2.58mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-2R2MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
Таблицы данных |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 2.2 µH | ±20% | 52.5 A | 104A | Shielded | 0.95mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-4R9MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
Таблицы данных |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.9 µH | ±20% | 34 A | 68A | Shielded | 2.14mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
30 |
|
Таблицы данных |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 24 A | 47A | Shielded | 4.31mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPEX2017S-8R6MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
26 |
|
Таблицы данных |
CPEX2017S | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 8.6 µH | ±20% | 26 A | 51A | Shielded | 3.44mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 0.807" L x 0.689" W (20.50mm x 17.50mm) | 0.807" (20.50mm) |
|
|
CPCE2624A-330MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
46 |
|
Таблицы данных |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 33 µH | ±20% | 20 A | 24A | Shielded | 4.8mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
|
|
CPCE2624A-270MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
60 |
|
Таблицы данных |
CPCE2624A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 27 µH | ±20% | 22 A | 26A | Shielded | 4.5mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current | Through Hole | - | 1.181" L x 1.039" W (30.00mm x 26.40mm) | 0.886" (22.50mm) |
