Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CPEX2626L-220MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
599 |
|
Таблицы данных |
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 22 µH | ±20% | 30 A | 38A | Shielded | 2.99mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|
|
CPEX2626L-4R1MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
312 |
|
Таблицы данных |
CPEX2626L | Nonstandard | Tray | Active | Wirewound | Metal Composite | 4.1 µH | ±20% | 60 A | 92A | Shielded | 0.64mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | - | 1.043" L x 1.024" W (26.50mm x 26.00mm) | 0.984" (25.00mm) |
|

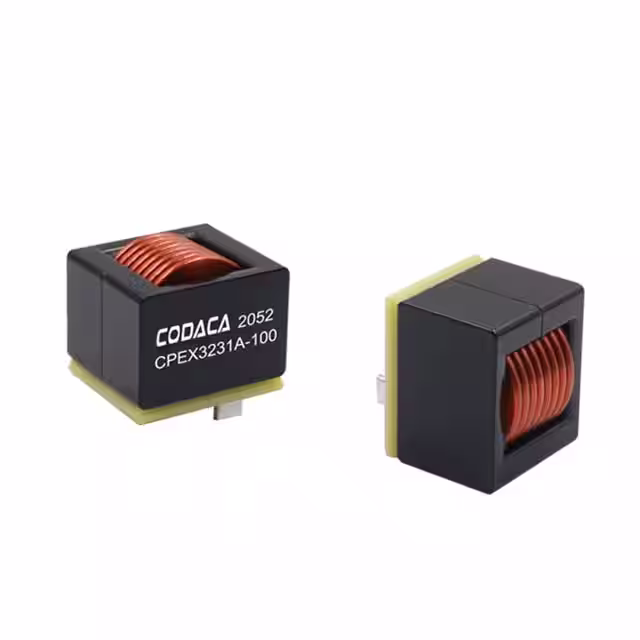

CPEX3231A-100MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
1,719 |
|
Таблицы данных |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 10 µH | ±20% | 50 A | 86A | Shielded | 1.05mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | - | - |
|
CPER3231-820MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
119 |
|
Таблицы данных |
CPER3231 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 82 µH | ±20% | 26 A | 25A | Shielded | 10.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Round Wire, Fe-Si Low Core Loss | Through Hole | Vertical, 4 PC Pin | 1.291" L x 1.220" W (32.80mm x 31.00mm) | 1.161" (29.50mm) |
|
|
CPER3231-101MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
899 |
|
Таблицы данных |
CPER3231 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 100 µH | ±20% | 25 A | 23A | Shielded | 11mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Round Wire, Fe-Si Low Core Loss | Through Hole | Vertical, 4 PC Pin | - | - |
|
|
CPEX3231A-270MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
602 |
|
Таблицы данных |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 27 µH | ±20% | 41.4 A | 43A | Shielded | 1.86mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | - | - |
|
|
CPEX3231A-330MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
494 |
|
Таблицы данных |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 33 µH | ±20% | 34 A | 30A | Shielded | 2.67mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | 1.291" L x 1.260" W (32.80mm x 32.00mm) | 1.122" (28.50mm) |
|
|
CPEX3231A-180MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
350 |
|
Таблицы данных |
CPEX3231A | Nonstandard | Tray | Active | Wirewound | Metal Composite | 18 µH | ±20% | 45 A | 43A | Shielded | 1.72mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | Flat Wire, High Current, Soft Saturation | Through Hole | Radial | - | - |
|
|
CPEX3231L-4R7MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
178 |
|
Таблицы данных |
CPEX3231L | Vertical, 2 PC Pin | Tray | Active | Wirewound | Metal Composite | 4.7 µH | ±20% | 84 A | 115A | Shielded | 0.47mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 2 PC Pin | 1.268" L x 1.240" W (32.20mm x 31.50mm) | 1.201" (30.50mm) |
|
|
CPER3231-680MCTHT HIGH CURRENT POWER INDUCTOR CODACA |
122 |
|
Таблицы данных |
CPER3231 | Nonstandard | Tray | Active | Wirewound | Metal Composite | 68 µH | ±20% | 28 A | 27A | Shielded | 9.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | Round Wire, Fe-Si Low Core Loss | Through Hole | Vertical, 4 PC Pin | 1.291" L x 1.220" W (32.80mm x 31.00mm) | 1.161" (29.50mm) |
