Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

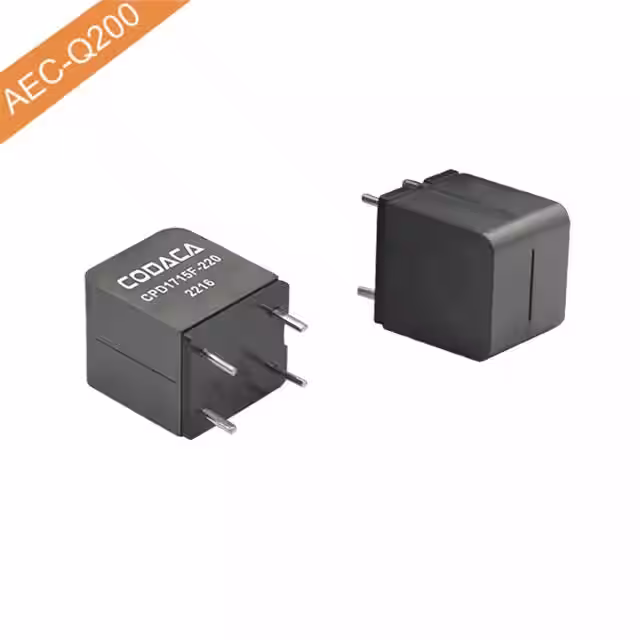

CPD1715F-100MCLASS D INDUCTOR FOR DIGITAL AMP CODACA |
517 |
|
Таблицы данных |
CPD1715F | Nonstandard | Tray | Active | Wirewound | Ferrite | 10 µH | ±20% | 17 A | 29A | Shielded | 8.8mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | Low Loss, Soft Saturation | Through Hole | Vertical, 4 PC Pin | 0.689" L x 0.591" W (17.50mm x 15.00mm) | 0.760" (19.30mm) |
|
CSCF2014-150MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
798 |
|
Таблицы данных |
CSCF2014 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 14 A | 21A | Shielded | 8.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCF2014-220MCSMD HIGH CURRENT POWER INDUCTOR CODACA |
384 |
|
Таблицы данных |
CSCF2014 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 12.5 A | 15A | Shielded | 10.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Mn-Zn Ferrite Low Loss | Surface Mount | 3-SMD | 0.886" L x 0.858" W (22.50mm x 21.80mm) | 0.571" (14.50mm) |
|
|
CSCM1290-150MSMD HIGH CURRENT POWER INDUCTOR CODACA |
300 |
|
Таблицы данных |
CSCM1290 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 9 A | 9A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.354" (9.00mm) |
|
|
CSCM1290-470MSMD HIGH CURRENT POWER INDUCTOR CODACA |
296 |
|
Таблицы данных |
CSCM1290 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 47 µH | ±20% | 7.7 A | 3A | Shielded | 23.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.354" (9.00mm) |
|
|
CSCM1290-6R8MSMD HIGH CURRENT POWER INDUCTOR CODACA |
292 |
|
Таблицы данных |
CSCM1290 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 9 A | 18A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.354" (9.00mm) |
|
|
CSCM1290-100MSMD HIGH CURRENT POWER INDUCTOR CODACA |
288 |
|
Таблицы данных |
CSCM1290 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 10 µH | ±20% | 9 A | 13A | Shielded | 15mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.354" (9.00mm) |
|
|
CSCM1290-330MSMD HIGH CURRENT POWER INDUCTOR CODACA |
281 |
|
Таблицы данных |
CSCM1290 | Nonstandard | Cut Tape (CT) | Active | Wirewound | Ferrite | 33 µH | ±20% | 7.7 A | 4.4A | Shielded | 23.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | Low Loss Ferrite Core | Surface Mount | 3-SMD | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.354" (9.00mm) |
|
|
VSAB1770-560MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
189 |
|
Таблицы данных |
VSAB1770 | Nonstandard | Cut Tape (CT) | Active | Molded | Alloy Powder | 56 µH | ±20% | 6.5 A | 6A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.691" L x 0.667" W (17.55mm x 16.95mm) | 0.283" (7.20mm) |
|
|
VSAB1770-470MAUTOMOTIVE SMD MOLDING POWER CHK CODACA |
5,337 |
|
Таблицы данных |
VSAB1770 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 47 µH | ±20% | 6.8 A | 7A | Shielded | 6.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.691" L x 0.667" W (17.55mm x 16.95mm) | 0.283" (7.20mm) |
