Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTTF0402F-0N8BFIXED IND 0.8NH0.1NH SMD Central Technologies |
10,000 |
|
Таблицы данных |
CTTF0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 0.8 nH | ±0.1nH | 700 mA | - | Unshielded | 100mOhm Max | 13 @ 500MHz | 6GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
CTTF0603F-18NGTHIN FILM CHIP INDUCTOR Central Technologies |
5,000 |
|
- |
CTTF0603F | 0603 (1608 Metric) | Bulk | Obsolete | Thin Film | - | 18 µH | ±2% | 300 mA | - | Unshielded | 2Ohm Max | 15 @ 300MHz | 2GHz | - | -40°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

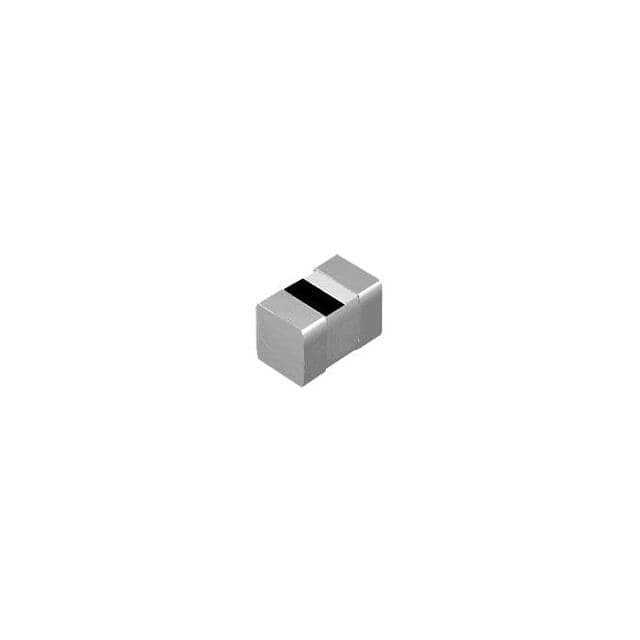

CTLL1005SF-1N5S1.5NH SMD CER MULTIL INDUCTOR Central Technologies |
20,040 |
|
Таблицы данных |
CTLL1005SF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
CTLL1005SF-2N7S2.7NH SMD CER MULTIL INDUCTOR Central Technologies |
20,031 |
|
Таблицы данных |
CTLL1005SF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
CTLL1005SF-3N9S3.9NH SMD CER MULTIL INDUCTOR Central Technologies |
10,029 |
|
Таблицы данных |
CTLL1005SF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
CTLL1005SF-1N2S1.2NH SMD CER MULTIL INDUCTOR Central Technologies |
10,026 |
|
Таблицы данных |
CTLL1005SF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 400 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
CTLL1005SF-22NJ22NH SMD CER MULTIL INDUCTOR Central Technologies |
10,019 |
|
Таблицы данных |
CTLL1005SF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 22 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
CTLL1005SF-R10J100NH SMD CER MULTIL INDUCTOR Central Technologies |
10,007 |
|
Таблицы данных |
CTLL1005SF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±5% | 150 mA | - | Unshielded | 2.6Ohm Max | 8 @ 100MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
CTML0603F-1R2K1.2UH FER MULTIL SHLD INDUCTOR Central Technologies |
12,000 |
|
Таблицы данных |
CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.2 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 35 @ 10MHz | 65MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
CTML0603F-2R7K2.7UH FER MULTIL SHLD INDUCTOR Central Technologies |
11,940 |
|
Таблицы данных |
CTML0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.7 µH | ±10% | 15 mA | - | Shielded | 1.3Ohm Max | 35 @ 10MHz | 45MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
