Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP8751F-2R2MSMD Shielded Power Inductor Central Technologies |
10 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 48 A | - | Shielded | 1.25mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|
|
CTMMP8751F-R47MSMD Shielded Power Inductor Central Technologies |
10 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 100 A | - | Shielded | 0.67mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.886" L x 0.866" W (22.50mm x 22.00mm) | 0.512" (13.00mm) |
|

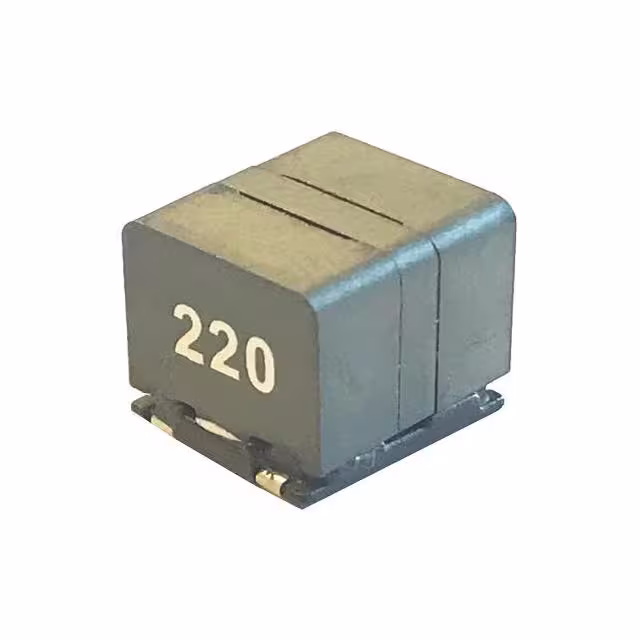

CTDAS0910AF-220MSMD SHLD PWR INDUCTOR FOR DIG AM Central Technologies |
25 |
|
Таблицы данных |
CTDAS0910AF | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 3.5 A | 3.3A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.394" L x 0.354" W (10.00mm x 9.00mm) | 0.413" (10.50mm) |
|
CTHR5F-680K68UH FILTER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 7.5 A | 9A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.860" Dia (21.84mm) | 1.125" (28.58mm) |
|
|
CTHR5F-101K100UH FILTER INDUCTOR Central Technologies |
3 |
|
Таблицы данных |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 100 µH | ±10% | 7.5 A | 7A | Unshielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.860" Dia (21.84mm) | 1.375" (34.93mm) |
|
|
CTHR5F-500K50UH FILTER INDUCTOR Central Technologies |
3 |
|
Таблицы данных |
CTHRF | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | - | 50 µH | ±10% | 8 A | 10A | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.840" Dia (21.34mm) | 1.125" (28.58mm) |
|
CTHFW2918F-6R8MSMD SHLDED POWER INDUCTOR Central Technologies |
17 |
|
Таблицы данных |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 6.8 µH | ±20% | 28 A | 45A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|
CTHFW2918F-3R3MSMD SHLDED POWER INDUCTOR Central Technologies |
17 |
|
Таблицы данных |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 3.3 µH | ±20% | 28 A | 92.5A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|
CTHFW2918F-100MSMD SHLDED POWER INDUCTOR Central Technologies |
17 |
|
Таблицы данных |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 10 µH | ±20% | 28 A | 31.2A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
|
|
CTHFW2918F-150MSMD SHLDED POWER INDUCTOR Central Technologies |
17 |
|
Таблицы данных |
CTHFW2918F | 2-SMD, Gull Wing | Bulk | Active | Wirewound | - | 15 µH | ±20% | 28 A | 21.2A | Shielded | 2.86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 1.098" L x 1.098" W (27.90mm x 27.90mm) | 0.701" (17.80mm) |
