Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

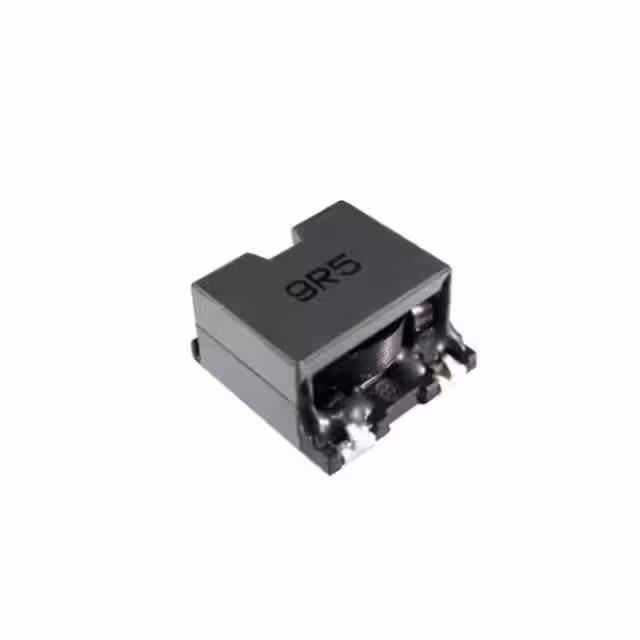

CTCDEP147SF-R40NSMD SHIELDED POWER INDUCTOR Central Technologies |
5 |
|
Таблицы данных |
CTCDEP147SF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 400 nH | ±30% | 23 A | 52.8A | Shielded | 2.1mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.591" L x 0.587" W (15.00mm x 14.90mm) | 0.319" (8.10mm) |
|

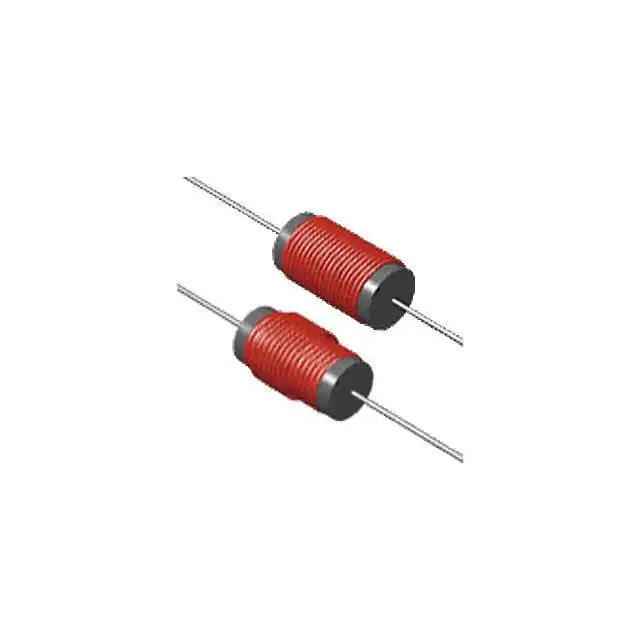

CTH9F-125M125UH AXIAL PWR LINE INDUCTOR Central Technologies |
5 |
|
Таблицы данных |
CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 125 µH | ±20% | - | 3.5A | Unshielded | 80mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.500" Dia x 1.250" L (12.70mm x 31.75mm) | - |
|
|
CTH9F-8R8M8.8UH AXIAL PWR LINE INDUCTOR Central Technologies |
1 |
|
Таблицы данных |
CTH9F | Axial | Bulk | Active | Drum Core, Wirewound | Iron | 8.8 µH | ±20% | - | 10A | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial | 0.560" Dia x 1.250" L (14.22mm x 31.75mm) | - |
|
CTHCCI8070F-2R2MSMD SHIELDED POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHCCI8070F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 10 A | 8A | Shielded | 6.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.295" (7.50mm) |
|
|

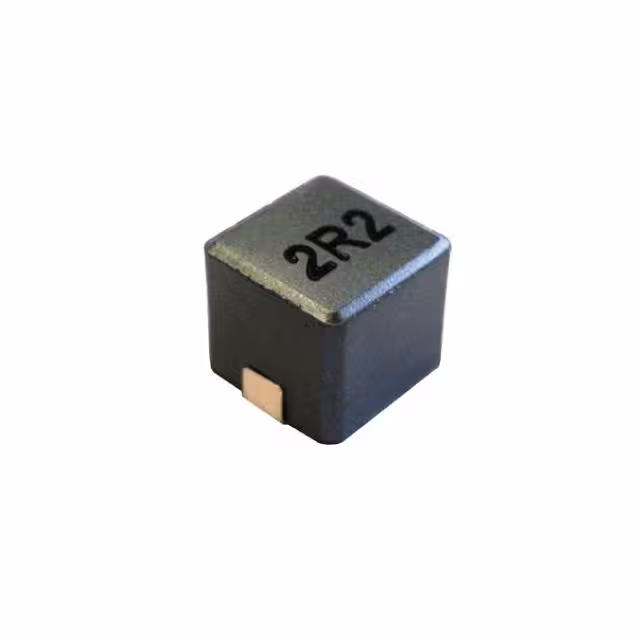

CTHCCI8070F-1R0MSMD SHIELDED POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHCCI8070F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 13 A | 15A | Shielded | 4.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.295" (7.50mm) |
|
CTHCCI8070F-R47MSMD SHIELDED POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHCCI8070F | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 15 A | 25A | Shielded | 3.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.331" W (8.80mm x 8.40mm) | 0.295" (7.50mm) |
|
CTHCCI1210F-4R7MSMD SHIELDED POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 12 A | 11A | Shielded | 8.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | 0.394" (10.00mm) |
|
|
CTHCCI1210F-1R0MSMD SHIELDED POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 30 A | 28A | Shielded | 2.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | 0.394" (10.00mm) |
|
|
CTHCCI1210F-2R2MSMD SHIELDED POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHCCI1210F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 21 A | 18A | Shielded | 4.7mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.461" W (13.30mm x 11.70mm) | 0.394" (10.00mm) |
|
CTHCCI1090F-1R0MSMD SHLDED POWER INDUCTOR Central Technologies |
10 |
|
Таблицы данных |
CTHCCI1090F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 17 A | 21A | Shielded | 2.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.445" L x 0.409" W (11.30mm x 10.40mm) | 0.382" (9.70mm) |
