Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTRFB1010F-123K12000UH RADIAL FIXED INDUCTR Central Technologies |
13 |
|
Таблицы данных |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 12 mH | ±10% | 170 mA | 170mA | Unshielded | 22Ohm Max | - | 500kHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
CTRFB1010F-150K15UH RADIAL FIXED INDUCTOR Central Technologies |
8 |
|
Таблицы данных |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 15 µH | ±10% | 5.4 A | 5A | Unshielded | 28mOhm Max | - | 19MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
CTRFB1010F-182K1800UH RADIAL FIXED INDUCTOR Central Technologies |
5 |
|
Таблицы данных |
CTRFB1010F | Radial, Vertical Cylinder | Bulk | Active | - | - | 1.8 mH | ±10% | 550 mA | 450mA | Unshielded | 3.5Ohm Max | - | 1.3MHz | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|

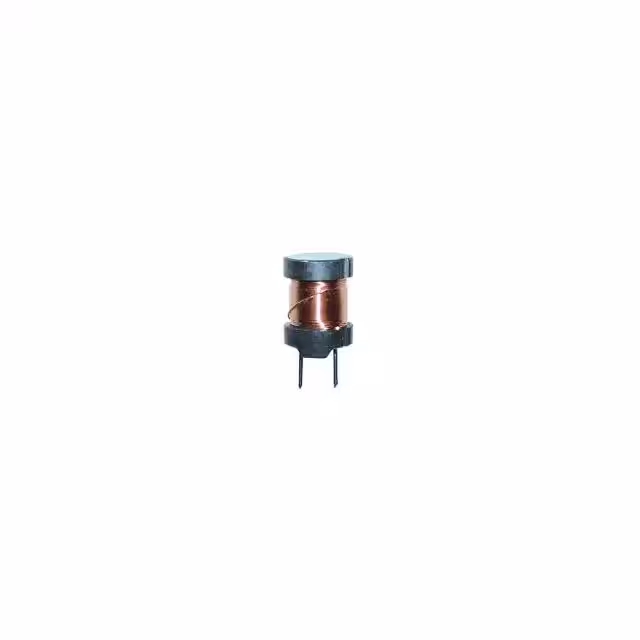

CTCH114F-331L330A RADIAL LEAD FIXED INDUCTOR Central Technologies |
11 |
|
Таблицы данных |
CTCH114F | Radial, Vertical Cylinder | Bulk | Active | - | - | 330 µH | ±15% | - | 1A | Unshielded | 520mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.567" (14.40mm) |
|
|
CTCH114F-103L10000A RADIAL LEAD FIXD INDUCTOR Central Technologies |
3 |
|
Таблицы данных |
CTCH114F | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 mH | ±15% | - | 160mA | Unshielded | 16Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.567" (14.40mm) |
|
|
CTCH114F-681L680A RADIAL LEAD FIXED INDUCTOR Central Technologies |
1 |
|
Таблицы данных |
CTCH114F | Radial, Vertical Cylinder | Bulk | Active | - | - | 680 µH | ±15% | - | 690mA | Unshielded | 960mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.567" (14.40mm) |
|
CTMMP5015F-100MSMD Shielded Power Inductor Central Technologies |
5 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 12 A | - | Shielded | 34mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.150" (3.80mm) |
|
CTCDRH73F-151MSMD SHIELDED POWER INDUCTOR Central Technologies |
4 |
|
Таблицы данных |
CTCDRH73F | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 430 mA | - | Shielded | 1.3Ohm Max | - | - | - | -25°C ~ 80°C | 1 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
CTGS43F-100M10UH SMD UNSHLD POWER INDUCTOR Central Technologies |
11 |
|
Таблицы данных |
CTGS43F | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 10 µH | ±20% | - | 1.15A | Unshielded | 182mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
CTCH110F-221K220UH RADIAL LEAD FIXED INDUCTOR Central Technologies |
5 |
|
- |
CTCH110F | Radial, Vertical Cylinder, 4 Leads | Bulk | Active | Wirewound | - | 220 µH | ±10% | - | 1.1A | Unshielded | 340mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.413" (10.50mm) |
