Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

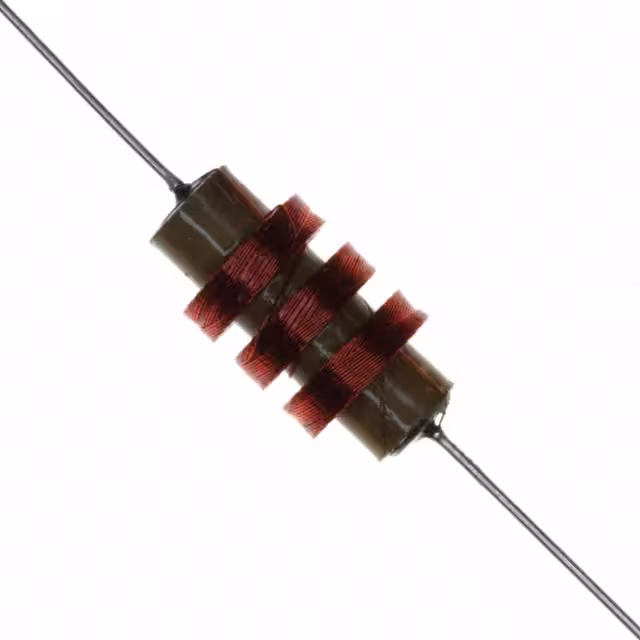

6306-RCFIXED IND 10MH 100MA 31 OHM TH Bourns Inc. |
0 |
|
Таблицы данных |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 100 mA | - | Unshielded | 31Ohm Max | 95 @ 79.6kHz | 710kHz | - | -55°C ~ 105°C | 79.6 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|

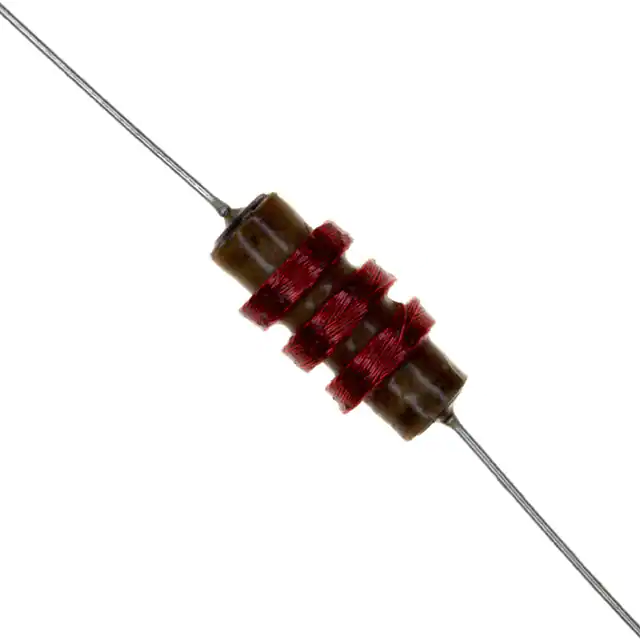

6302-RCFIXED IND 2.5MH 160MA 9 OHM TH Bourns Inc. |
0 |
|
Таблицы данных |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 mH | ±5% | 160 mA | - | Unshielded | 9Ohm Max | 95 @ 252kHz | 1.3MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.470" Dia x 0.875" L (11.94mm x 22.22mm) | - |
|

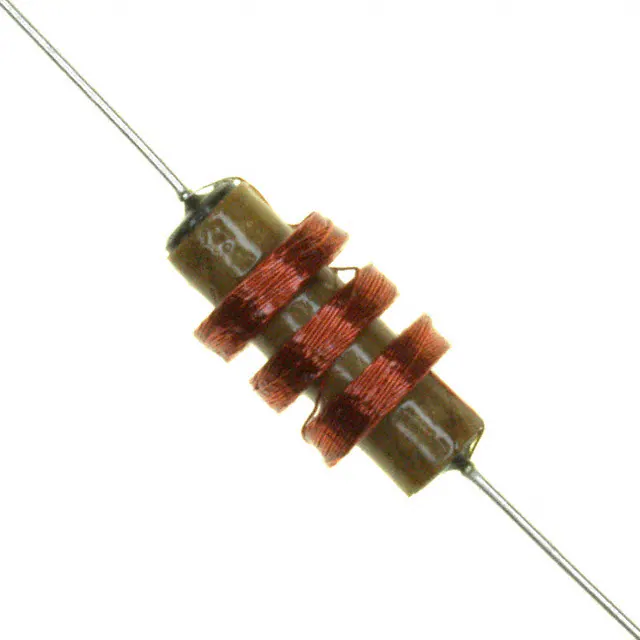

6304-RCFIXED IND 5MH 160MA 14 OHM TH Bourns Inc. |
0 |
|
Таблицы данных |
6300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 mH | ±5% | 160 mA | - | Unshielded | 14Ohm Max | 80 @ 252kHz | 1MHz | - | -55°C ~ 105°C | 252 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
CI100505-1N2DFIXED IND 1.2NH 300MA 90MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.2 nH | ±0.3nH | 300 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-1N8DFIXED IND 1.8NH 300MA 120MOHM SM Bourns Inc. |
0 |
|
Таблицы данных |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-2N7DFIXED IND 2.7NH 300MA 130MOHM SM Bourns Inc. |
0 |
|
Таблицы данных |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-3N9DFIXED IND 3.9NH 300MA 210MOHM SM Bourns Inc. |
0 |
|
Таблицы данных |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 300 mA | - | Unshielded | 210mOhm Max | 8 @ 100MHz | 4GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-5N6DFIXED IND 5.6NH 300MA 230MOHM SM Bourns Inc. |
0 |
|
Таблицы данных |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 230mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-12NJFIXED IND 12NH 200MA 400MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 12 nH | ±5% | 200 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 2.7GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
CI100505-18NJFIXED IND 18NH 200MA 550MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
CI100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 18 nH | ±5% | 200 mA | - | Unshielded | 550mOhm Max | 8 @ 100MHz | 2.1GHz | - | -55°C ~ 105°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
