Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

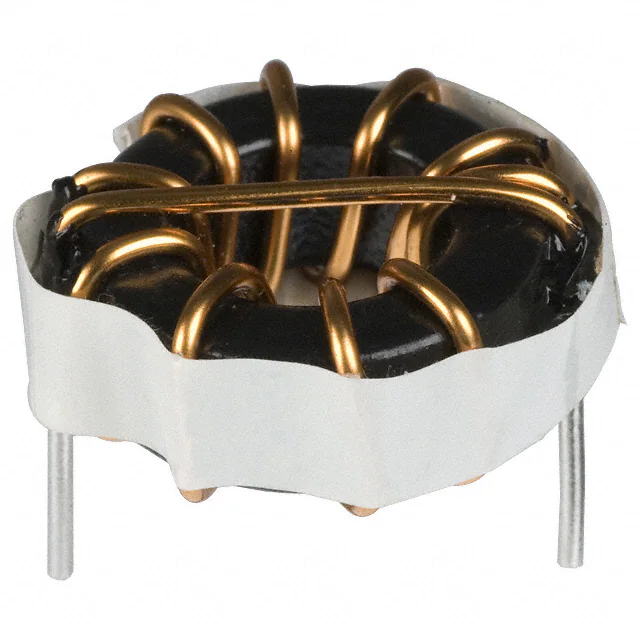

2200LL-1R8-V-RCFIXED IND 1.8UH 22.6A 2 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 1.8 µH | ±20% | 22.6 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-3R9-V-RCFIXED IND 3.9UH 18.5A 4 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 3.9 µH | ±20% | 18.5 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-4R7-V-RCFIXED IND 4.7UH 17.1A 4 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 4.7 µH | ±20% | 17.1 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|
|
2200LL-270-V-RCFIXED IND 27UH 11.8A 9 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 27 µH | ±15% | 11.8 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.100" Dia x 0.550" W (27.94mm x 13.97mm) | - |
|

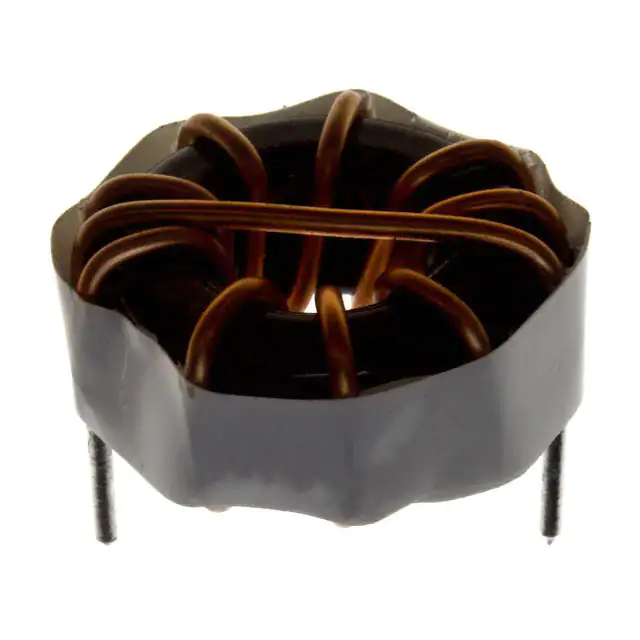

2300LL-331-H-RCFIXED IND 330UH 4.6A 79 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 330 µH | ±15% | 4.6 A | - | Shielded | 79mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2300LL-2R7-V-RCFIXED IND 2.7UH 29.4A 2 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 2.7 µH | ±20% | 29.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-331-V-RCFIXED IND 330UH 4.6A 79 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 330 µH | ±15% | 4.6 A | - | Shielded | 79mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-391-V-RCFIXED IND 390UH 4.4A 85 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 390 µH | ±15% | 4.4 A | - | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-681-V-RCFIXED IND 680UH 3.8A 113 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 680 µH | ±15% | 3.8 A | - | Shielded | 113mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|

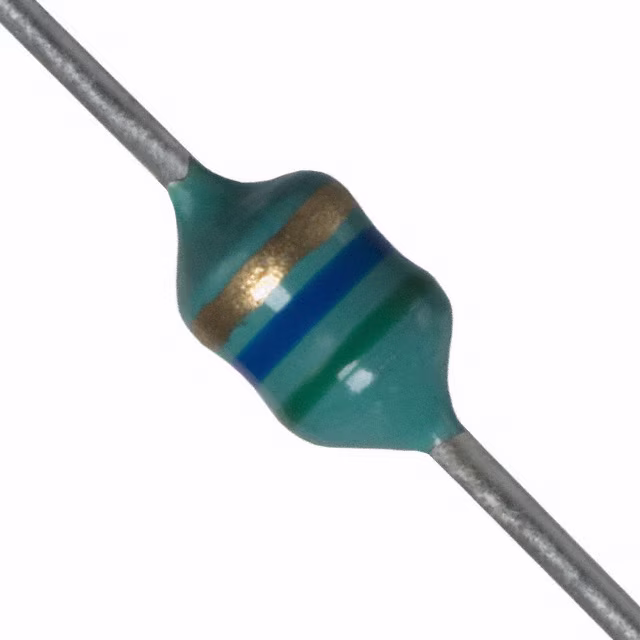

79F5R6K-RCFIXED IND 5.6UH 180MA 1.9 OHM TH Bourns Inc. |
0 |
|
Таблицы данных |
79F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±10% | 180 mA | - | Unshielded | 1.9Ohm Max | 40 @ 7.9MHz | 28MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.100" Dia x 0.160" L (2.54mm x 4.06mm) | - |
