Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300LL-1R5-H-RCFIXED IND 1.5UH 34A 1 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 1.5 µH | ±20% | 34 A | - | Shielded | 1mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-2R7-H-RCFIXED IND 2.7UH 29.4A 2 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 2.7 µH | ±20% | 29.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-3R9-H-RCFIXED IND 3.9UH 26.3A 2 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 3.9 µH | ±20% | 26.3 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-5R6-H-RCFIXED IND 5.6UH 24A 3 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 5.6 µH | ±20% | 24 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-8R2-H-RCFIXED IND 8.2UH 22.3A 3 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 8.2 µH | ±20% | 22.3 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-100-H-RCFIXED IND 10UH 20.8A 4 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 10 µH | ±15% | 20.8 A | - | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

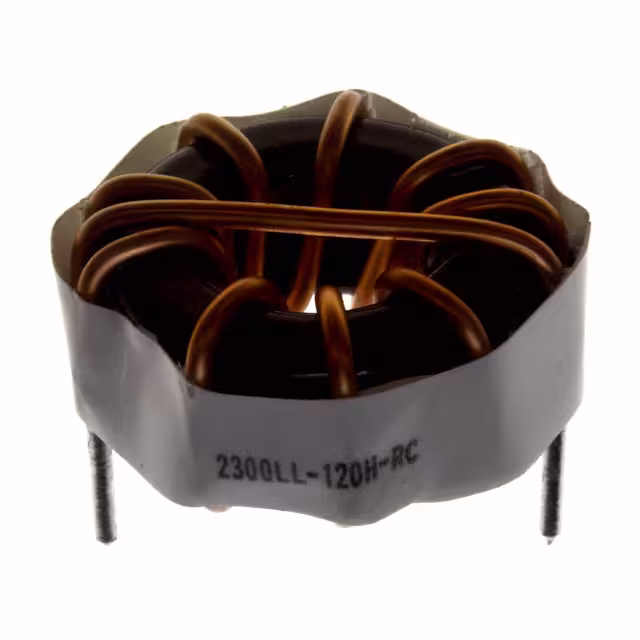

2300LL-120-H-RCFIXED IND 12UH 19.6A 4 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 12 µH | ±15% | 19.6 A | - | Shielded | 4mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-150-H-RCFIXED IND 15UH 18.6A 5 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 15 µH | ±15% | 18.6 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-270-H-RCFIXED IND 27UH 17A 6 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 27 µH | ±15% | 17 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300LL-470-H-RCFIXED IND 47UH 11.8A 12 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 47 µH | ±15% | 11.8 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
