Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

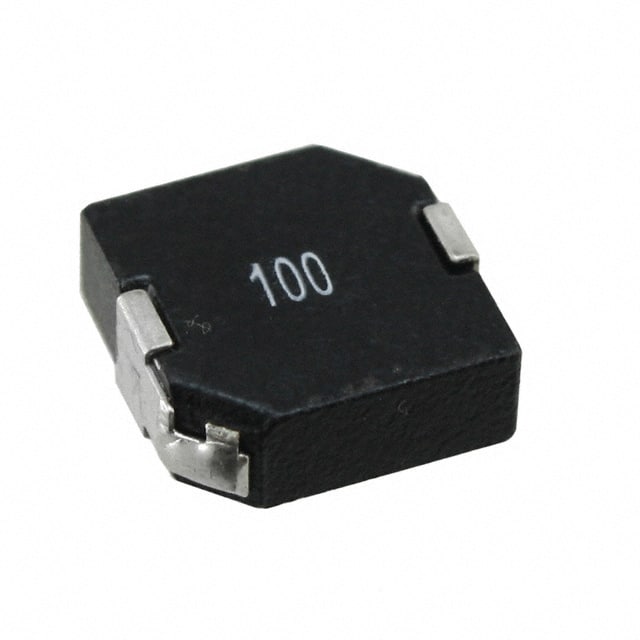

PM13560S-100MFIXED IND 10UH 7.5A 14.9MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
PM13560S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 10 µH | ±20% | 7.5 A | - | Shielded | 14.9mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.547" L x 0.531" W (13.90mm x 13.50mm) | 0.232" (5.90mm) |
|
2200HT-150-V-RCFIXED IND 15UH 10.3A 17 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 15 µH | ±15% | 10.3 A | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-180-V-RCFIXED IND 18UH 9.7A 18 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 18 µH | ±15% | 9.7 A | - | Shielded | 18mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-1R2-V-RCFIXED IND 1.2UH 23.8A 3 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 1.2 µH | ±15% | 23.8 A | - | Shielded | 3mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-270-V-RCFIXED IND 27UH 8.9A 22 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 27 µH | ±15% | 8.9 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-2R2-V-RCFIXED IND 2.2UH 20.1A 5 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 2.2 µH | ±15% | 20.1 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-391-V-RCFIXED IND 390UH 3A 190 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±15% | 3 A | - | Shielded | 190mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-3R3-V-RCFIXED IND 3.3UH 18.8A 5 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 3.3 µH | ±15% | 18.8 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-470-V-RCFIXED IND 47UH 6.4A 42 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 47 µH | ±15% | 6.4 A | - | Shielded | 42mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2200HT-5R6-V-RCFIXED IND 5.6UH 16.1A 7 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 5.6 µH | ±15% | 16.1 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
