Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

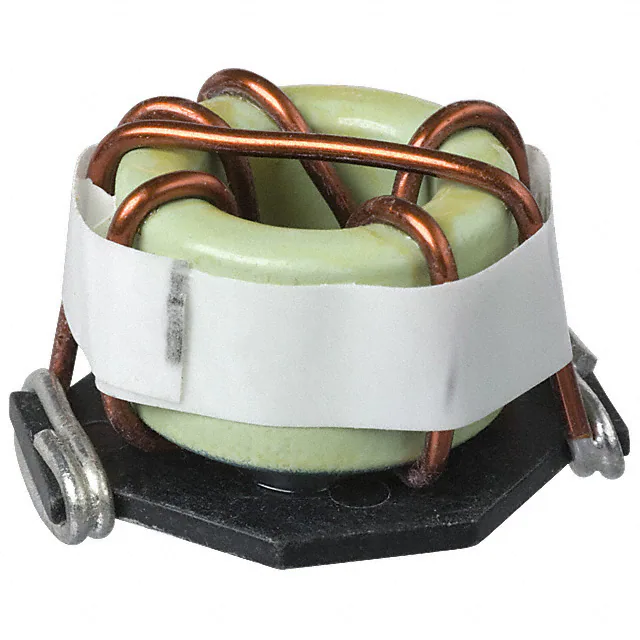

PM2120-1R2M-RCFIXED IND 1.2UH 25.4A 2 MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 1.2 µH | ±20% | 25.4 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-2R7M-RCFIXED IND 2.7UH 19.7A 3 MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 2.7 µH | ±20% | 19.7 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-3R3M-RCFIXED IND 3.3UH 18A 4 MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 3.3 µH | ±20% | 18 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-3R9M-RCFIXED IND 3.9UH 18A 4 MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 3.9 µH | ±20% | 18 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
|
PM2120-1R8M-RCFIXED IND 1.8UH 22A 3 MOHM SMD Bourns Inc. |
0 |
|
Таблицы данных |
PM2120 | Nonstandard | Tray | Active | Toroidal | Iron | 1.8 µH | ±20% | 22 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - | 1.201" L x 1.000" W (30.50mm x 25.40mm) | 0.820" (20.83mm) |
|
2203-HFIXED IND 15UH 11.3A 8 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 15 µH | ±15% | 11.3 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2205-HFIXED IND 22UH 10.3A 10 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 22 µH | ±15% | 10.3 A | - | Shielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2206-HFIXED IND 27UH 9.8A 11 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 27 µH | ±15% | 9.8 A | - | Shielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2207-HFIXED IND 33UH 7.4A 20 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 33 µH | ±15% | 7.4 A | - | Shielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
|
|
2209-HFIXED IND 47UH 6.7A 24 MOHM TH Bourns Inc. |
0 |
|
Таблицы данных |
2200 | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 47 µH | ±15% | 6.7 A | - | Shielded | 24mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia (24.13mm) | 0.550" (13.97mm) |
